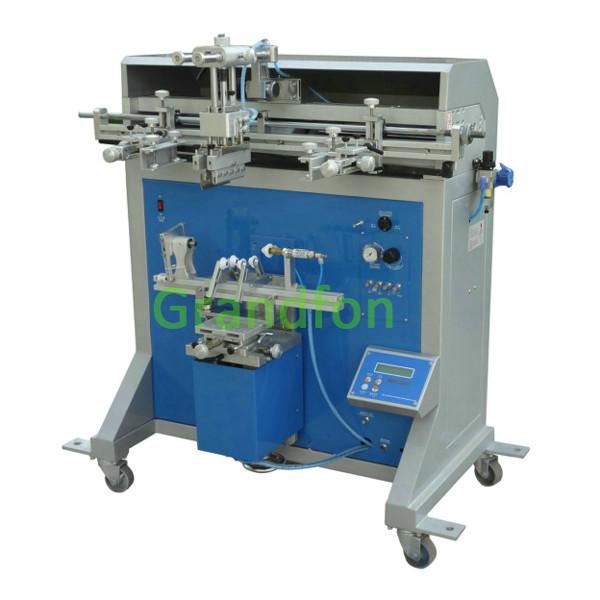

YZ-1100Y Large high quality new cheap cylindrical single color screen printing machines for buckets
YZ-1100Y Large high quality new cheap cylindrical single color screen printing machines for buckets
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Grandfon
Certification :
CE
Model Number :
YZ-1100Y
MOQ :
1 Set
Price :
negociatable
Packaging Details :
depend on the size
Delivery Time :
10-15 working days
Payment Terms :
T/T, western union, MoneyGram
Supply Ability :
200pcs / month
warranty :
2 years
Machine name :
screen printing machines
Max printing diameter :
350mm
Application :
rounds pails printing
Type :
screen printing
Printing color :
one color at a tine
Printing speed :
500pcs / hour
Application area :
bottles logo printing
Components :
FESTO from Germany
Description

YZ-1100Y Large high quality cylindrical single color screen printing machines


Specifications:

Max.printing size: φ330x350mm
Max.Frame Size: 1180*380mm
Machine size(LxWxH): 1730x1250x1730mm
Net Weight: 290kg
Air Pressure(bar): 5-7
Power: 220V/50Hz 110V/60HZ, 60W
Max product arc length: 1170mm
Max printing speed: 800Pcs/Hr
Packing size: 186*105*190CM(LxWxH)
Gross/Net weight: 700kg/600kg
Volume Weight: 745KG

Features:

1) strict design for or screen printer has the substrate holder can adjusted to meet the application, and micro-adjustment in vertical , transversal or tilting direction is available

2) precision multi-colors printing through synchronizes transmission of gear and rack with the proper use of work piece jig(fixture) for screen printer

3) printing stroke can be adjusted laterally to suit various screen plate sizes on screen printer

4) equipped with shock absorber, providing precise and stable operations for multi-color printing

5 )engineering design delivers convenience loading and unloading of work piece for safe and efficient operation

6) advance famous pneumatic & electric components: SMC, FESTO, ORIGA ensure long lasting for screen printer operation

7) options for curve printing: height adjustable work table; standard flat work table; chromatic automatic positioning; flat work table with vacuum suction

Machine Fittings:
1. One frame,
2. One tool box,
3. 1 inch squeegee.
4. One fixture.

Application Scope:


YZ-1100Y Screen Printing Machine, which is fit for printing on the big diameter round products such as paint and water buckets etc.

Silk screen printing samples:

YZ-1100Y Large high quality new cheap cylindrical single color screen printing machines for buckets

YZ-1100Y Large high quality new cheap cylindrical single color screen printing machines for buckets

YZ-1100Y Large high quality new cheap cylindrical single color screen printing machines for buckets
