Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
Specifications
Brand Name :
EasyFashion Industry
Model Number :
GN3312A
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10 set per year
Delivery Time :
120 days
Packaging Details :
Standard packed by wooden cases and container.
（cooling water ≤30°C） :
From 800°C to opening door, ≤ 6 h
Dimension of furnace :
4500×4250×3500 mm
Cooling speed （without loading） :
From working temp. to 800°C, ≤ 2 h
Temperature increasing rate (without loading) :
10°C/min（≥1000℃）
Wax collecting rate :
≥98﹪
Temperature uniformity :
≤±7°C (Ceramic ring)
Description
  • Degreasing Completely Vacuum Sintering And De-waxing Furnace For Stainless Steel Base​

Main Description

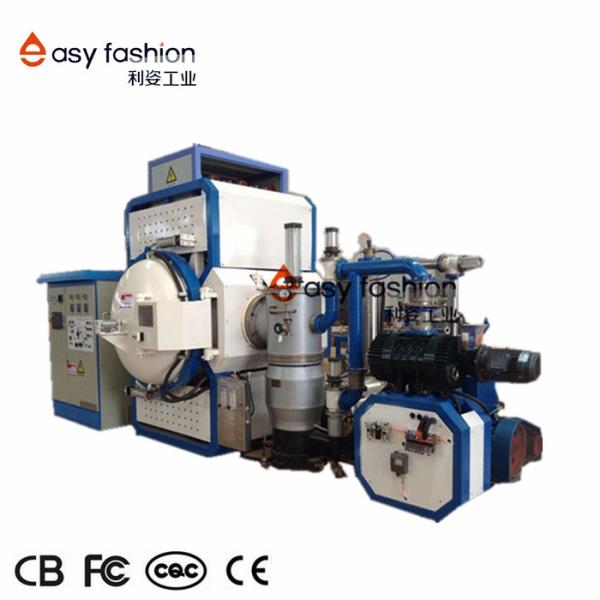

Integrated Vacuum Degreasing and Sintering Furnace integrate the functions of de-waxing, sintering, atmosphere controlling and cooling etc.

Technical specifications

Model

 GN5518A GN3312A

Rated voltage

380 V 50 Hz, three-phase five-wire

Dimension of furnace

 4500×5400×3500 mm 4500×4250×3500 mm

Dimension of usable space

 500×500×1800 mm 300×300×1200mm

Max. load weight

 1500 kg 500 kg

Weight of furnace

 ≈5500 kg ≈4000 kg

Stand area

 ≈5200×6000 mm ≈4500×4000mm

Power

 340 kVA 200 kVA

Max. testing temperature

 1600°C

Max. working temperature

 ≤1550°C

Temperature control method

3 zones

Temperature uniformity

≤±7°C

(Ceramic ring)

Hc deviation

 ≤±0.3KA/M

Com deviation

 ≤±0.2%

Temperature increasing rate (without loading)

15°C/min(≤1000℃)；

10°C/min(≥1000℃)

Ultimate vacuum

≤2Pa, tested in cold and clean chamber

Vacuum Leak rate

≤2Pa/h(24 hours average), tested in cold and clean chamber

Pumping speed

(in cold and clean chamber)

≤20 min., pumping from 1.13×105Pa to 5Pa

Wax collecting rate

 ≥98﹪

Cooling speed

(without loading)

(cooling water ≤30°C)

From working temp. to 800°C, ≤ 3 h

From 800°C to opening door, ≤ 6 h

From working temp. to 800°C, ≤ 2 h

From 800°C to opening door, ≤ 5 h

Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base

Degreasing Vacuum Sintering Furnace 380V 50Hz For Stainless Steel Base
