High Efficiency Vacuum Directional Solidification Touch Screen Operation
High Efficiency Vacuum Directional Solidification Touch Screen Operation
Specifications
Brand Name :
EasyFashion
Model Number :
/
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
To be discussed
Payment Terms :
T/T, Western Union
Supply Ability :
15~25 sets per year
Delivery Time :
90~120 days
Packaging Details :
standard packing, wooden cases
Voltage :
220V
Working vacuum degree :
6.67×10-2Pa/10Pa
After-sales Service Provided :
Engineers available to service machinery overseas
Max.  temperature :
1700℃
Working  temperature :
1650℃
Heating zone :
Customization
Description

Vacuum Directional Solidification

I. Overview

This series of vacuum directional solidification furnace is a modern equipment working for melting metal or alloy with medium-frequency induction heating under vacuum, forming thermal gradient with specialized-designing holding furnace and cooling system, and production of directional solidified and single-crystal parts by pulling down mechanism. It can strictly control temperature and alloy content of materials.

This furnace is primarily applied to the production of silver-based, iron-based, and cobalt-based high-temperature alloys, and the high-quality products made of these alloys are commonly practiced into aerospace turbine engine industry, vehicle, chemistry field and entertaining fields.

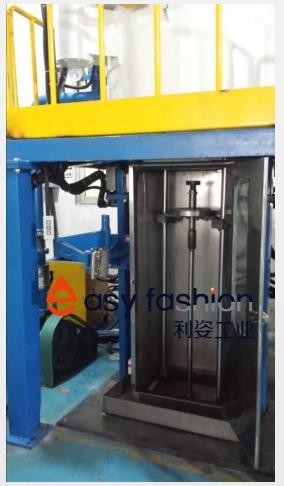

High Efficiency Vacuum Directional Solidification Touch Screen OperationHigh Efficiency Vacuum Directional Solidification Touch Screen Operation

II. Technical specifications

Model EF-ZKD-5 EF-ZKD-10 EF-ZKD-25 EF-ZKD-50 EF-ZKD-100
Rated loading capacity (kg) 5 10 25 50 100
Pressure rising rate (Pa/h) ≤0.67
Ultimate vacuum 6.67×10-3Pa/1Pa
Working vacuum degree 6.67×10-2Pa/10Pa
Input power supply 3 phase, 380V±10%, 50Hz
Output frequency (Hz) 4000 2500
Supply power (kW) 30 60 100/160 160/200
Total power (kVA) 35 100 240 280
Output voltage (V) 375
Max. working temperature (℃) 1700
Total weight(calculated value (t) 3 3.5 4 5 8
Cooling water consumption (m3/h) 2.1 2.4 2.7 3.6 4.8
Cooling water pressure (Mpa) 0.2~0.4
Input water temperature (℃) 20
Holding furnace power Two stage (three stages)
Holding furnace heating method Resistance heating (induction heating)

Note: The above is standard configuration which is adjustable based on customer requirements.

III. Features

  • Overall designing furnace, occupying small area
  • Intelligent control system
  • Process accurate controlling technology
  • Security Advantages
