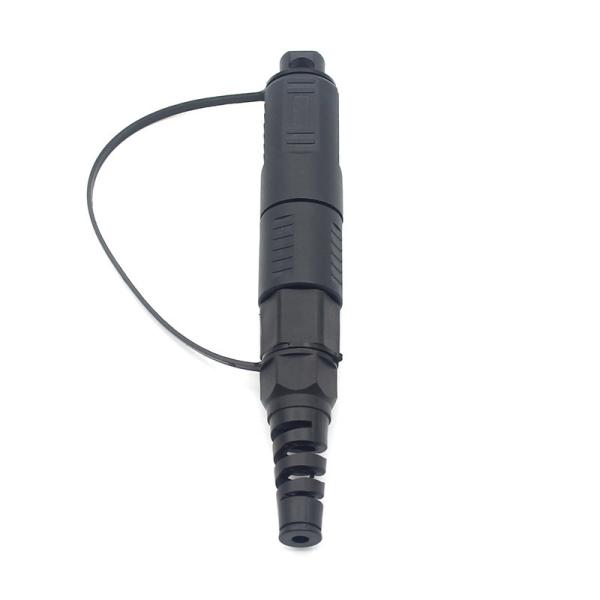

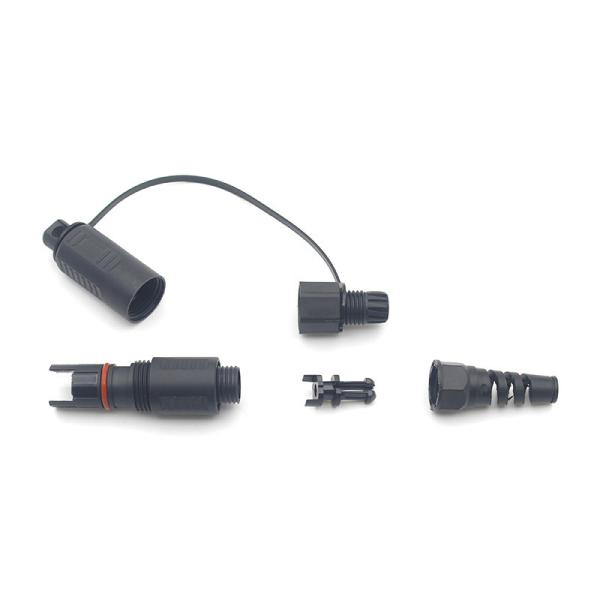

Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Specifications
Brand Name :
DOWELL
Model Number :
DW- PTF-SC
MOQ :
500 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 PCS Per 7 Days
Delivery Time :
7-15 Days
Insertion Loss :
≤0. 50dB
Return Loss :
≥55.0dB
Torsion of optical cable :
≥15N
Mechanical Durability :
1000 cycles
End face performance :
Conform to YD T 2341.1-2011
Cable Type :
2×3.0mm, 2×5.0mm flat; round 3.0mm, 2.0mm
Description

Field Assembly Reinforced H Type Optical Fast Connectors

The Corning OptiTap Fast Connector is a pre-assembled, field-installable fiber optic connector designed for quick and reliable termination in various applications, including FTTH (Fiber to the Home), data centers, and enterprise networks.

Specification:

Item Specification
Cable Type 2×3.0mm, 2×5.0mm flat; round 3.0mm, 2.0mm
End face performance Conform to YD T 2341.1-2011
Insertion Loss ≤0. 0dB
Return Loss ≥55.0dB
Mechanical Durability 1000 cycles
2.0x3.0mm (Ttap Fast Connector) ≥30N; 2Minute
2.0x3.0mm (Ttap Connector) ≥30N; 2Minute
5.0mm (Ttap Connector) ≥70N; 2Minute
Torsion of optical cable ≥15N
Drop performance 10 drops under 1.5m height
Application Time ~30 seconds (excluding fiber presetting)
working environment under 90% relative humidity ,70°C

Feature:

1.1 Compact size, easy to operate, durable.

1.2 Easy connection to hardended adapters on terminals or closures.
1.3 Reduce welding, connect directly to achieve interconnection.
1.4 Spiral clamping mechanism ensures long-term reliable connection.
1.5 Guide mechanism, can be blinded with one hand, simple and quick, connect and install.
1.6 Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,
Allows flexibility to use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
Application:
2.1 FTTH / PON Networks
2.2 Data Centers & Enterprise Cabling
2.3 Telecom & Broadband Installations
2.4 Military & Industrial Fiber Optics
Field Assembly Reinforced H Type Optical Fast Connectors For FTTH/FTTP Networks
