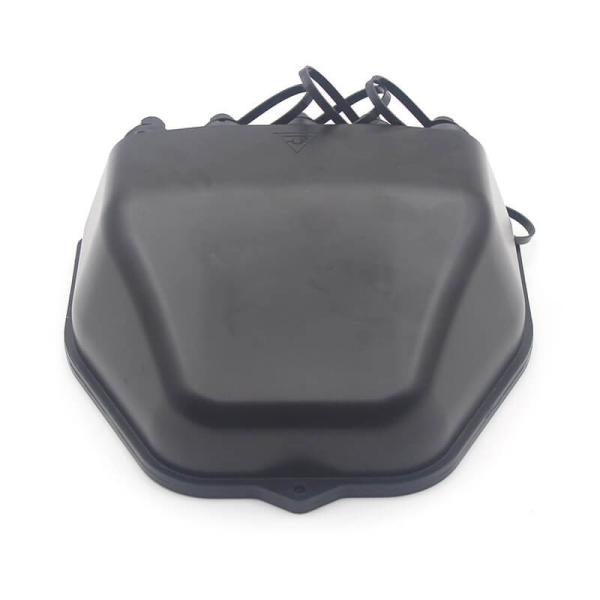

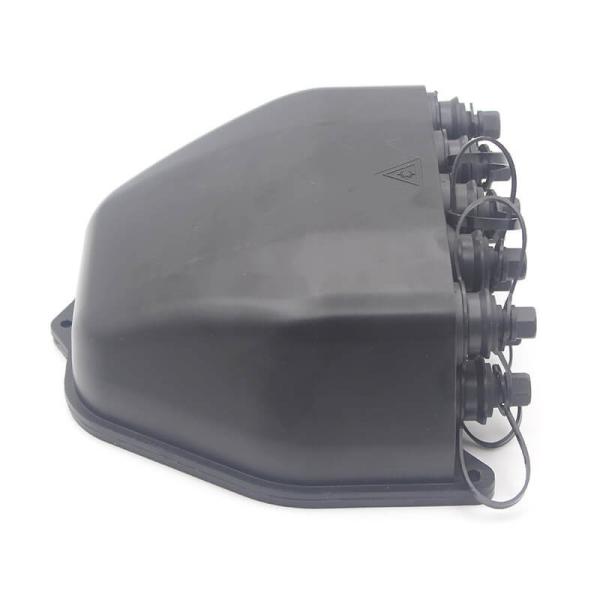

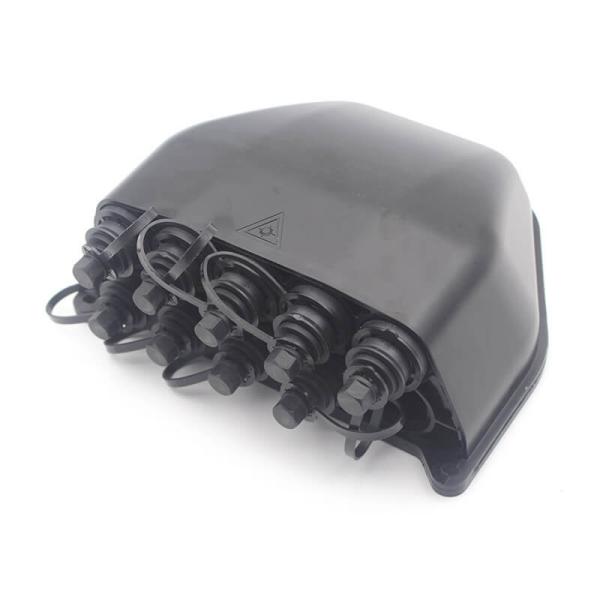

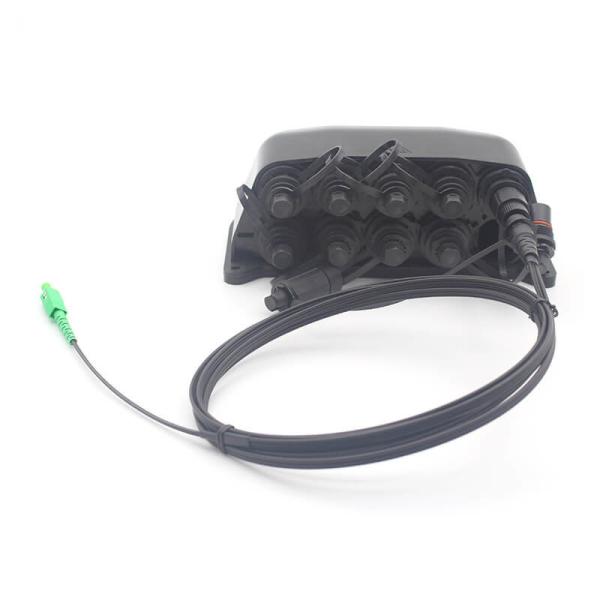

Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box
Specifications
Brand Name :
DOWELL
Model Number :
DW-SSC2811-H
Place of Origin :
China
MOQ :
500 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 PCS Per 7 Days
Delivery Time :
7-15 Days
Protection Rating :
IP65 – Waterproof and Dustproof
Connector Return Los :
APC≥60dB, UPC≥50dB, PC≥40dB
Max Capacity :
10 Core
Material :
PC+ABS or PP+GF
Resisting Impact :
lk09
Installation :
Pole, Wall or aerial cable mounting
Description

Pole mounted 10 Port NAP Pre-Connected Fiber Optic Box

Dowell SSC2811-H Pre-Connected Fiber Optic Box is a mechanically sea NAP led dome-style Fast Connect closure used at access points of the Fttx-ODN network. It is a product with all inlet and outlet cables pre-connected, eliminating the need of closure opening and fiber splicing. All ports are equipped with hardened adapters. It used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is Corning adapter or Huawei Fast connector, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple, easy to install, and no special tools are required.

Specification:

Distribution Capacity 1(Input)+1(Extension)+8(Drop) 1(Input)+8(Drop)
Optical Cable Inlet PCS SC/APC optitap H adapter(red)
Optical Cable Outlet 1PCS SC/APC optitap H adapter (blue) 8 PCS SC/APC optitap H
adapter (black)
8 PCS SC/APC optitap H adapter (black)
Splitter Capacity 1PCS 1:9 SPL9105 1 PCS 1:8 SPL9105

Features:

1.1 Total enclosed structure
1.2 Plug-and-play installation, easy for maintenance and expansion
1.3 Material: PC+ABS,wet-proof, water-proof, dustproof, anti-aging, protection level up to Ip68
1.4 10 x reinforced adapters for drop cable with reinforced connectors.
1.5 Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor&outdoor use.
1.6 The compact design integrates distribution, splicing, splitting 3-in-1
1.7 Designated position for the placement of 1:2 and 1:8 PLC splitter

Application:

2.1 FTTX (FTTA, FTTB, FTTO, FTTH);
2.2 Telecom Tower;
2.3 CATV System;
2.4 WAN, LAN, and more.
