FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
Specifications
Brand Name :
DOWELL
Model Number :
DW-SSC2806
Place of Origin :
China
MOQ :
500 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 PCS Per 7 Days
Delivery Time :
7-15 Days
Wirng Capcity :
13
Splicng capcity :
48
PLC Spliter :
PLC1:9
Max. tray qty :
4
Storage tem :
-40ºC to +70ºC
Operating tem :
-40ºC to +65ºC
Description

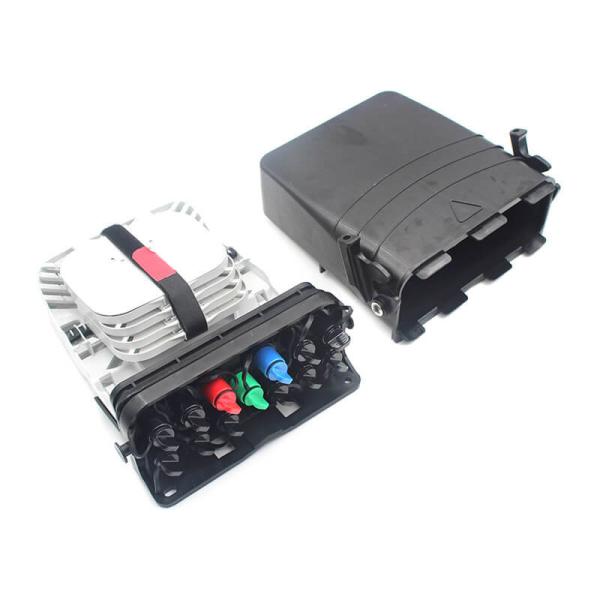

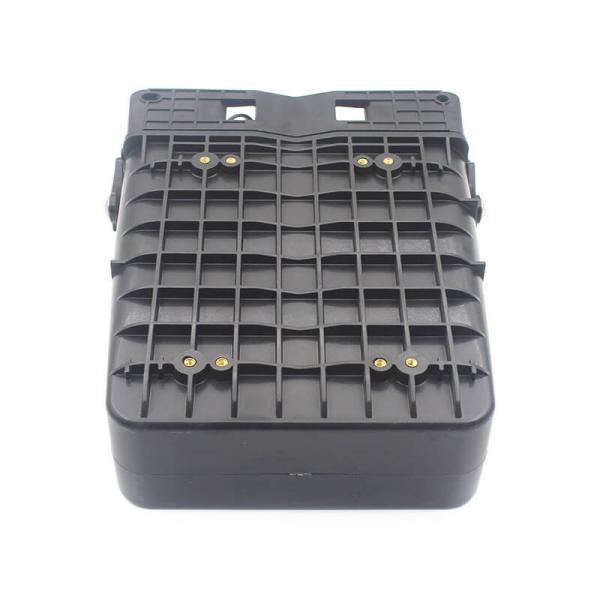

FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes

Dowell Company Fttx Pre-connectorized Terminal Boxes, available in 8 Ports, 10 Ports, and 12 Ports, they are high-performance fiber management solutions designed for Fttx network systems. These versatile termination boxes enable seamless connections between feeder cables and drop

cables, supporting fiber splicing, splitting, and distribution in a compact, weatherproof enclosure. Waterproof closure with IP68-rated protection and IK10 impact resistance, these terminal boxes ensure reliable operation in harsh indoor and outdoor environments, including overground, under
ground, and manhole installations. Each type terminal box with features plug-and-play compatibility, pre-connected adapters, and independent cable pathways to enhance installation efficiency and simplify network maintenance.
Specification:
Wirng Capcity 13 SC/APC Waterproof adapter
Splicng capcity (unit: core) 48
PLC Spliter PLC1:9 (Cascade output 70%, 8 users output 30%)
Splicng capcity per tay (unit: core) 12 core and 2 pcs PLC (1:4 or 1:8)
Max. tray qty 4
Optical cable entrance and exit 10 SC/APC Waterpof adpter
Installation mode Pole/wall-mountig, aerial cable-mounting
Atmospheric Pressure 70~ 106kPa
Material Plastic: Reinforced P Metal: Stainless steel 304
Application Scenario Overgound, undergound, manhole/hand hole
Resisting Impact lk10
Flame-retardant rating UL94-HB
Dimensions
(H x W x D; unit: mm)		 262 x 209 x 94 No Buckle
269 x 237 x 94 Have a Buckle
Package size (H x W x D; unit: m) 240 x 105 x 280
Net weight (unit: kg) 1.3
Gros weight (unit: kg) 1.39
Protection rating IP68
Sealing mode Mechanical
Adaptor Type SC/APC Waterproof adapter

Fearures:

1.1 Tool-free design, easily be opened and closed by the lever handle.

1.2 Plug and play, FastConnect drop cable instead of splicing, be installed without opening the closure.
1.3 Fast Plug realizes cable fastening and sealing outside the closure, leads to fast installation.
1.4 Support dispatching fibers from same loose tube into different trays.
1.5 Support pole/wall mounting, aerial cable mounting.
1.6 Support overground, underground, manhole/hand hole installation.
1.7 Small size and elegant appearance.
1.8 IP68 protection.
1.9 Made from plastic (PP+GF) and stainless steel (SUS304) for long-term use.
Application:
2.1 Termination point for feeder and drop cables in FTTx network systems.
2.2 Suitable for fiber splicing, splitting, and distribution to form optical interconnection points.
2.3 Supports connections to single optical plugs in customer homes.
Structure:
FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68
