Specifications
Model Number :
DW-OFI
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
MOQ :
1 pieces
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10 PCS Per 7 Days
Delivery Time :
7-15 Days
Type :
Fiber Identifier
Identified Wavelength Range :
800-1700 nm
Signal Direction :
Left & Right LED
Detector Type :
1mm InGaAs 2pcs
Use :
FTTH
Warranty Time :
1Year
Network :
FTTH
Description
Digital Diplay Optical Fiber Identifier With Visual Fault Locator

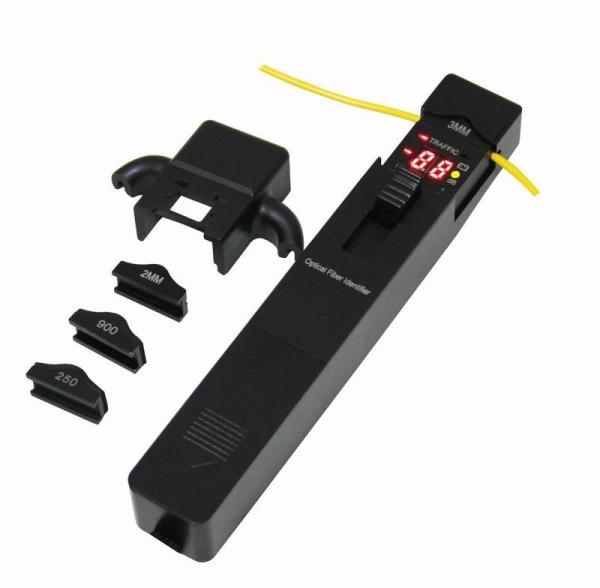

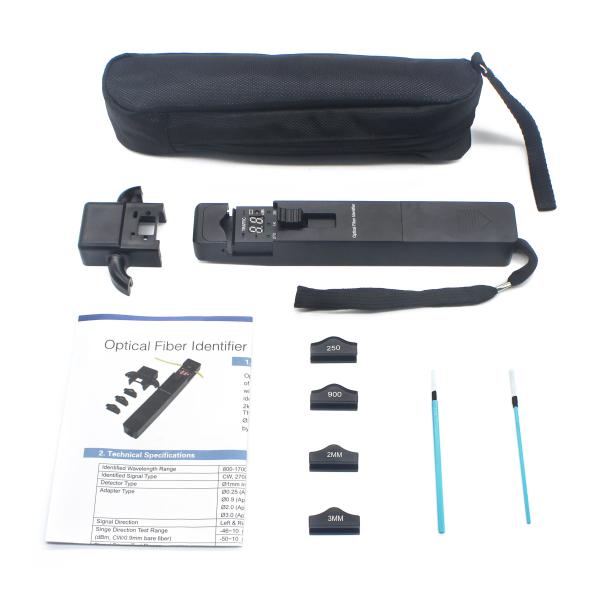

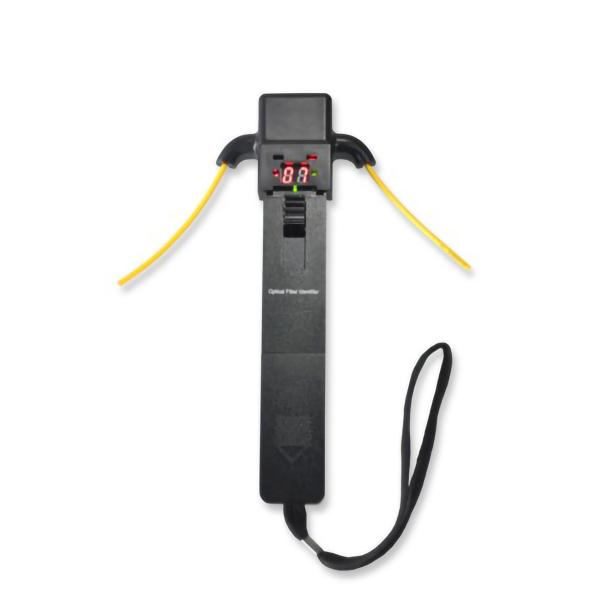

Our Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bend fiber. When the traffic is present, the intermittently audible tone is activated. This optical fiber identifier also recognizes the modulation like 270Hz, 1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. This optical fiber identifier is powered by a 9V alkaline battery.

Specification:

Identified Wavelength Range 800-1700 nm
Identified Signal Type CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type Ø1mm InGaAs 2pcs
Adapter Type Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable )
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction Left & Right LED

Singe Direction Test Range

(dBm, CW/0.9mm bare fiber)

 -46~10(1310nm)
-50~10(1550nm)

Signal Power Test Range

(dBm, CW/0.9mm bare fiber)

 -50~+10
Signal Frequency Display (Hz) 270, 1k, 2k

Frequency Test Range

(dBm, Average Value)

 Ø0.9, Ø2.0, Ø3.0 -30~0 (270Hz,1KHz)
-25~0 (2KHz)

Ø0.25

 -25~0 (270Hz,1KHz)
-20~0 (2KHz)
Insertion Loss(dB, Typical Value) 0.8 (1310nm)
2.5 (1550nm)
Alkaline Battery(V) 9
Operating Temperature(℃) -10－+60
Storage Temperature(℃) -25－+70
Dimension (mm) 196x30.5x27
Weight (g) 200

Features:

1.1 Easy-to-use with “ONE KEY” operation.

1.2 Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.

1.3 Displays the relative core power

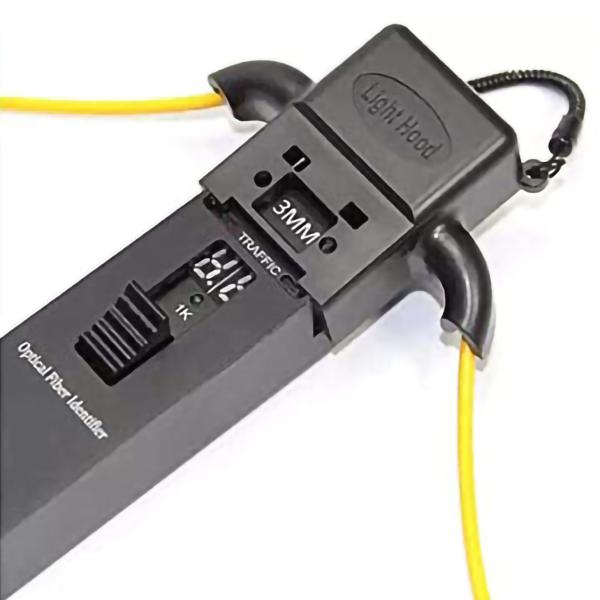

1.4 More accurate test with Sunshade

1.5 Easy-to-replace adaptors

1.6 Durable metal housing and quality construction

1.7 Lower power indication
