Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
Specifications
Model Number :
DW-LAD-I
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
MOQ :
3000 pieces
Payment Terms :
T/T
Supply Ability :
10000pcs per 7 days
Delivery Time :
5-7 days
Insertion Lose :
0.2 dB (Zr. Ceramic)
Durability :
0.2 dB (500 Cycle Passed)
Storage Temp. :
- 40°C to +85°C
Humidity :
95% RH (Non Packaging)
Loading Test :
≥ 70 N
Insert and Draw Frequency :
≥ 500 times
Description

Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter

A fiber optic LC APC adapter is a passive mechanical device designed to precisely align and join two LC-type fiber optic connectors that have an APC (Angled Physical Contact) polish, creating a continuous optical path for light signals with minimal loss and, critically, exceptionally low back reflection.

Specification:

Insertion Lose
0.2 dB (Zr. Ceramic)
Durability
0.2 dB (500 Cycle Passed)
Storage Temp.
- 40°C to +85°C
Humidity
95% RH (Non Packaging)
Loading Test
≥ 70 N
Insert and Draw Frequency
≥ 500 times

Features:

1.1 LC: Stands for Lucent Connector (sometimes called "Little Connector"). It's a small-form-factor connector type that is extremely popular in high-density applications like data centers, telecommunications, and FTTH due to its compact size.

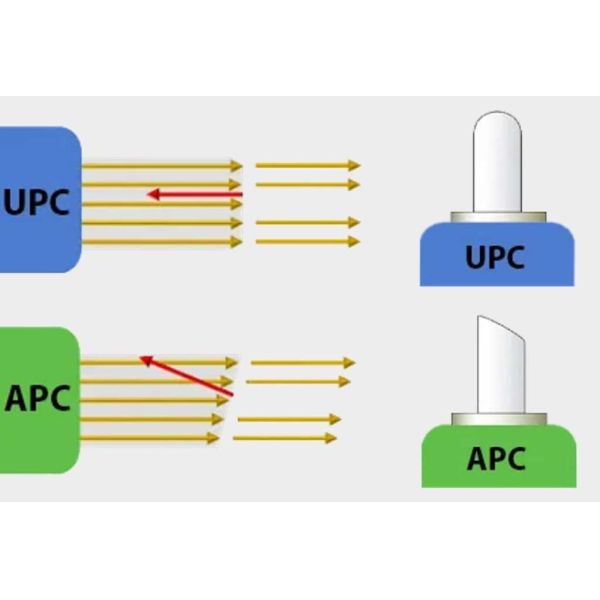

1.2 APC: Stands for Angled Physical Contact. This refers to the specific 8° angle polish applied to the end face of the fiber ferrule.

1.3 Adapter: The housing or sleeve that holds the two connectors in perfect alignment.

Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability

Application:

2.1 Fiber-to-the-Home (FTTH / PON Networks): Crucial for preventing interference between upstream and downstream signals in single-fiber bidirectional systems (like GPON).

2.2 Cable Television (CATV) & RF Video Systems: Analog signals are highly sensitive to back reflections, which cause ghosting and signal degradation.

2.3 High-Speed Digital Systems & WDM (Wavelength Division Multiplexing): Lasers used in these systems are sensitive to reflected light, which can cause instability, noise, and reduced performance.

2.4 Test & Measurement Equipment: Used for accurate measurements where reflections must be minimized.

Green SM LC/APC Duplex Fiber Optic Adapter with Inner Shutter 0.2 dB Insertion Loss and 500 Cycle Durability
