Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Specifications
Model Number :
DW-SAS-A5
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
MOQ :
500 pieces
Price :
$0.20 - $0.50/pieces
Use :
CATV System
Network :
4g, GSM, 3G
Insertion Lose :
0.2dB
Durability :
0.2 dB (500 Cycle Passed)
Storage Temp. :
- 40°C to +85°C
Loading Test :
≥ 70 N
Description
Fiber Optic SC Adapter with Flip Auto Shutter and Flange
Fiber optic adapters (also called fiber couplers or flanges) are passive optical components that precisely align two fiber connectors to enable low-loss light transmission, acting as the essential bridge in fiber optic networks.
Working Principle
At the core is an alignment sleeve (usually ceramic, sometimes metal or polymer) that holds the ferrules of two connectors concentrically, ensuring the fiber cores are perfectly aligned. This precise alignment minimizes insertion loss and back reflection, which are critical for maintaining signal integrity.
Technical Specifications
Insertion Loss ≤ 0.2 dB (Zr. Ceramic)
Repeatability ≤ 0.3 dB (P-Bronze)
Operating Temperature Range 0.2 dB (500 Cycle Passed)
Storage Temperature Range -40°C to +85°C
Humidity 95% RH (Non Packaging)
Key Features
  • Compliant with Bellcore 326 and TIA/EIA 604 Standards
  • Easy Installation
  • High Precision Alignment
  • Low Insertion Loss
Applications
  • CATV Systems
  • Telecommunications
  • Optical Networks
  • Testing and Measurement Instruments
  • Fiber To The Home (FTTH)

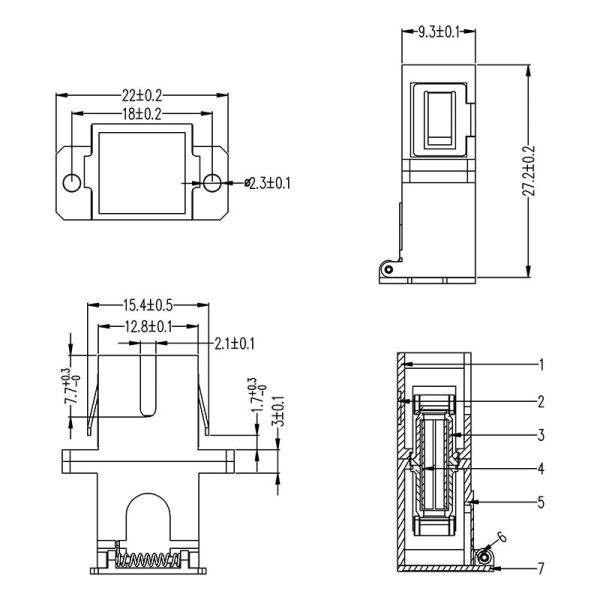

Product Drawing
Fiber Optic SC Adapter with Flip Auto Shutter, 0.2dB Insertion Loss, and 500 Cycle Durability Flange
Frequently Asked Questions
Are you a trading company or manufacturer?
70% of our products we manufacture and 30% we trade for customer service.
How can you ensure the quality?
We are a one-stop manufacturer with complete facilities and over 15 years of manufacturing experience to ensure product quality. We have passed ISO 9001 Quality Management System certification.
Can you provide samples? Is it free or extra?
Yes, after price confirmation we can offer free samples, but shipping costs need to be paid by the customer.
How long is your delivery time?
In stock: within 7 days; Not in stock: 15-20 days, depending on your quantity.
Can you do OEM?
Yes, we can provide OEM services.
What is your payment term?
Payment ≤ $4,000 USD: 100% in advance. Payment ≥ $4,000 USD: 30% TT in advance, balance before shipment.
How can we pay?
TT, Western Union, Paypal, Credit Card, and LC.
Transportation?
Transported by DHL, UPS, EMS, Fedex, Air freight, Boat, and Train.
