Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss
Specifications
Model Number :
DW-FUS-S
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
MOQ :
100pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per 7 days
Delivery Time :
7-15 days
Insertion Loss :
< 0.2 dB
Return Loss (UPC) :
> 50 dB
Return Loss (APC) :
> 60 dB
Operating Temp :
-40°C to +75°C
Durability :
500+ mating cycles
Repeatability :
±0.1 dB variation
Description

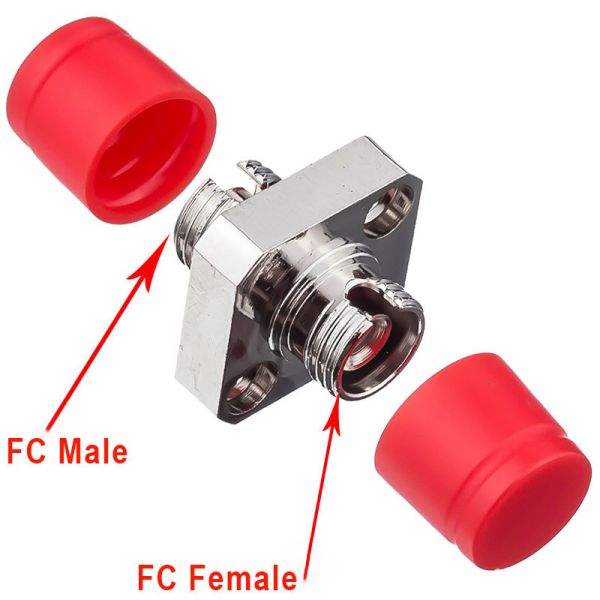

Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor
A fiber optic adapter (also called coupler, mating sleeve, or bulkhead) is a passive device used to connect two fiber optic connectors together, providing precise alignment while minimizing signal loss. It's one of the most fundamental components in fiber optic connectivity.
Specification:
Adapter Type Connectors Mated Common Applications
Simplex One connector per side Most common for single fibers
Duplex Two connectors simultaneously Ethernet, data center patch cords
Hybrid Different connector types Equipment interconnection
Quad Four connectors High-density applications
Details:
Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss

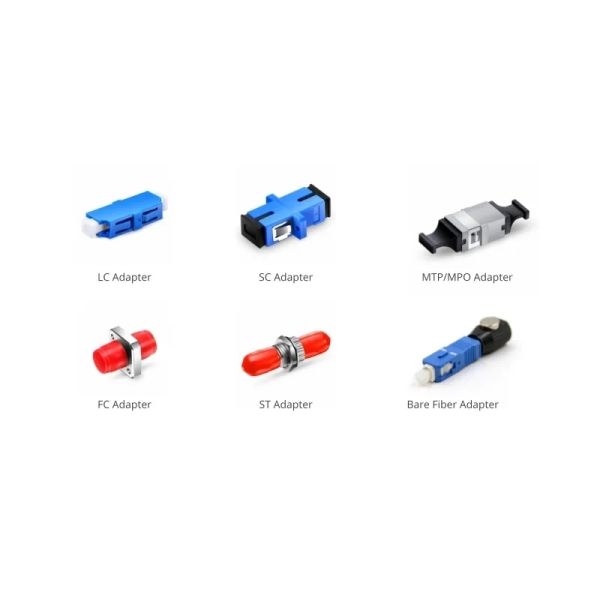

Adapter Body Styles:

1.1 Square Type (Snap-in):

Most common for patch panels

Features clips for tool-less installation

Standard for LC, SC, FC in modern panels

1.2 Round Type:

Often used with threaded couplings (FC, ST)

May require nuts/washers for mounting

Common in industrial applications

1.3 Flanged Type:

Has mounting flanges with screw holes

For secure mounting in custom applications

1.4Panel-Mount Adapters:

Pre-installed in factory-assembled panels

Consistent quality and alignment

1.5 Bare Sleeve Adapters:

Minimalist design for OEM integration

No external housing

Singlemode Simplex FC UPC Square Type Fiber Optic Adaptor for Precise Alignment and Low Signal Loss

2. Applications:
2.1 Patch Panels / ODFs: Create interconnection points in distribution frames; Allow flexible patching and cross-connections.

2.2 Wall Outlets / Fiber Drops: Terminate building cabling to user-accessible ports.

2.3 Equipment Interconnection: Connect different devices with mismatched ports; Use hybrid adapters for equipment migration.

2.4 Test & Measurement: Reference test cords to equipment under test; Provide standardized connection points.

2.5 Splice Closures & Terminals: Connect pigtails to distribution cables.
