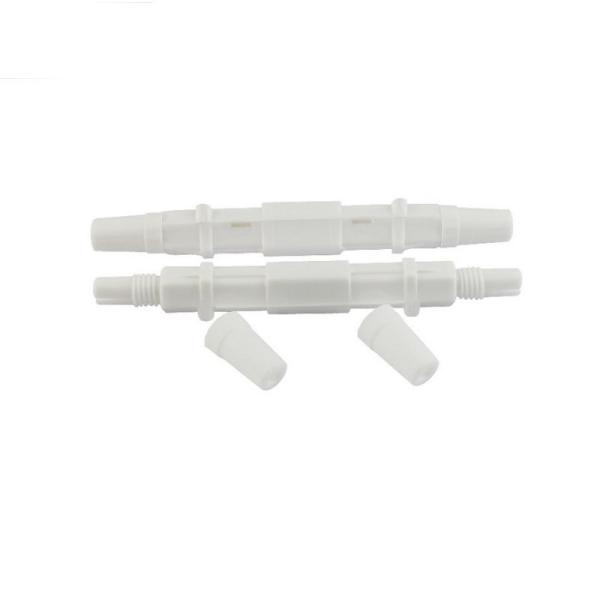

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
Specifications
Place of Origin :
China,Zhejiang
Brand Name :
DOWELL
Model Number :
DW-1202A
Supply Ability :
5000PCS Per 7 Days
MOQ :
10000 pieces
Payment Terms :
T/T, Western Union, Paypal
Delivery Time :
7-15 Days
Material :
PP
Color :
White
Application :
3.0*2.0mm drop cable, 0.9mm cable, 0.25mm cable
IP Grade :
IP65
Length :
103mm
Weight :
0.005kg
Description

FTTH 1 Core Drop Cable Splicing Tube Protection Box

Drop Cable Protect box is used for drop cable connecting, splice and protection. It can hold 1piece SC Simplex adapter, 2pcs SC fast connectors, suitable for FTTH. It could be indoor or outdoor use, with good waterproof capacity. It is compact size, good appearance. Provides extremely economical and optimal protection for exposed single fiber connectors.

Specification:

Application 3.0x2.0mm Drop Cable or Indoor Cable
Fiber Cladding Diameter 125um(G652D&G657A)
Fiber Diameter 250um&900um
Fiber Type Single Mode(SM) & Multi Mode(MM)
Tensile Strength > 50N
Repeat Uses Circles 5 times
Insertion Loss <0.2dB
Return Loss > 50dB(UPC), > 60dB(APC)
Bending Radius(mm) > 15
Operation Temperature -40~60(°C)
Storage Temperature -40~85(°C)

Features:

1.1 ​Both Made of high-quality PP Plastic, silicone ring seal between the cover and bottom.

1.2 Small size, easy installation.

1.3 Indoor outdoor used.

1.4 Waterproof IP65, dust proof.

Application:

2.1 Suitable for indoor or outdoor use
2.2 Used for protect drop cable
2.3 Used in FTTH, Telecommunications, CATV ect.

How To Use:

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box

FTTH Outdoor 1 Core Drop Cable Splicing Tube Protection Box
