FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
Specifications
Payment Terms :
T/T, Western Union, Paypal
Delivery Time :
7-15 Days
Place of Origin :
Zhejiang, China
Brand Name :
DOWELL
Model Number :
DW-1096
Packaging Details :
Normal Package
Supply Ability :
10000 PCS Per 7 Days
MOQ :
100 0pieces
Material :
Hot Dip Galvanized
Color :
Silver
Usage :
Cable Fixing
Application :
Overhead Line Accessories
Description

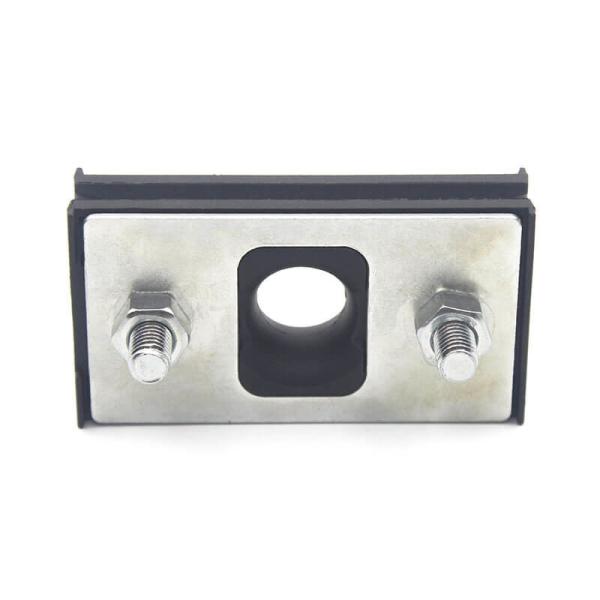

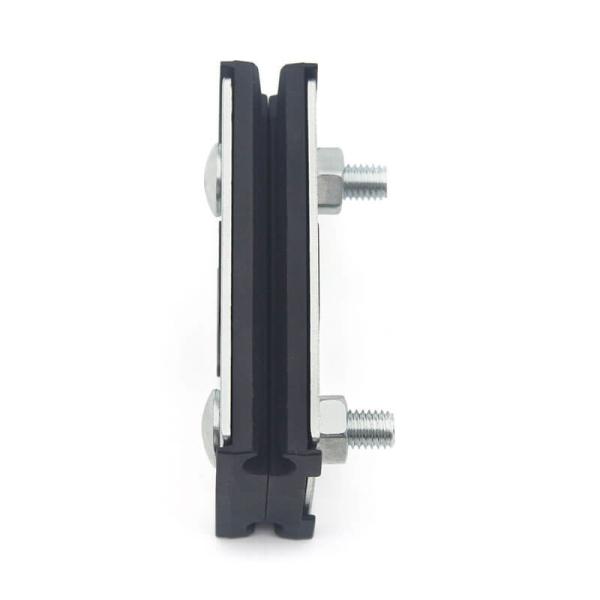

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation

The suspension clamps are designed to provide an articulated suspension for figure-8 cables with steel or dielectric insulated messenger on access network with spans up to 90m. Its unique patented design has been developed to offer an universal hardware fitting covering all suspension cases on wooden, metal or concrete poles. With straight grooves and a reversible system, these clamps are compatible with messengers diameters from 3 to 7mm and 7 to 11mm.

Specification:

Material Hot Dip Galvanized Color Silver
Usage Cable Fixing Application Overhead Line Accessories
Feature:
1.1 Covers all messenger sizes from 3 to 11mm
1.2 Acts as a fuse to avoid damage on the cable in case of abnormal vertical overload (tree, car crash ...)
1.3 4kV dielectric insulation between the cable messenger and the pole/clamp
1.4 Central hole allowing installation on hooks so to provide a flexible suspension point and give extra protection against wind induced vibrations

Installation:

2.1 On a hook bolt
The clamp can be installed on a 14mm or 16mm hook bolt on drillable wooden poles. The length of the hook bolt depends on the pole diameter.
2.2 On a pole bracket with a hook bolt
The clamp can be installed on wooden poles, round concrete poles and polygonal metallic poles by using a suspension bracket CS, a hook bolt BQC12x55 and 2 pole bands 20 x 0.4mm or 20 x 0.7mm.

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation

Our Package:

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation

Production Flow:

FTTH Figure-8 Cables Suspension Clamp Hot Dip Galvanized For Installation
