ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
Specifications
Brand Name :
DOWELL
Place of Origin :
China
Material :
PC+ABS
Working temperature :
-40℃～+85℃
Relative humidity :
≤85%（+30℃）
Water-proof :
IP55
Insertion loss :
≤0.2dB
Life of insertion and extraction :
＞1000 times
Description
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
Product Attributes
Attribute Value
Material PC+ABS
Working temperature -40℃～+85℃
Relative humidity ≤85%（+30℃）
Water-proof IP55
Insertion loss ≤0.2dB
Life of insertion and extraction ＞1000 times
Product Description

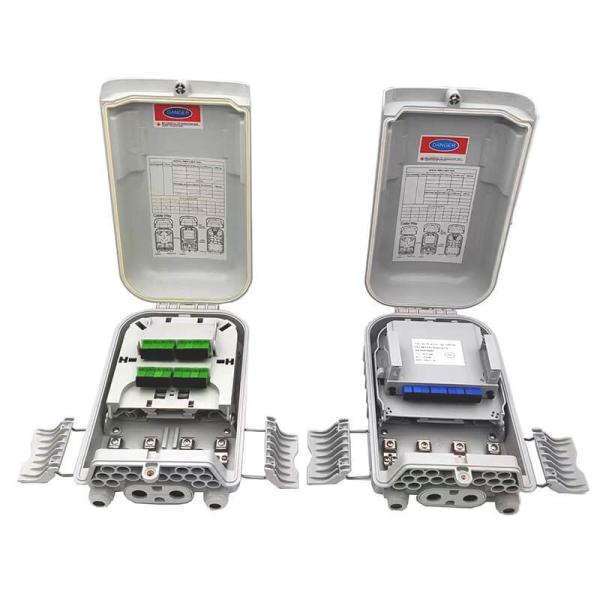

ABS FTTH White/Black 16 Cores Fiber Optical Distribution Box For Indoor/outdoor. The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specification
Description Size Max Capacity Cable ways
Distribution Box 276*172*103mm 16pcs SC Not cup-joint / cup-joint
Features
  • Total enclosed structure
  • Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP55
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one
  • Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation
  • Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
Application
  • FTTH access network
  • Telecommunication network
  • CATV networks
  • Data communications network
  • Local area networks

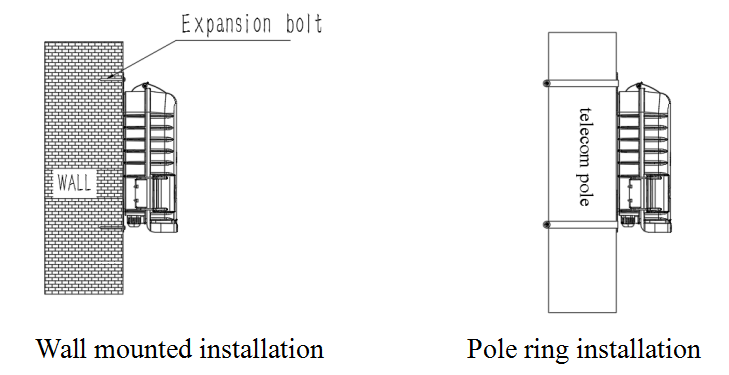

Installation
  • Wall-mounted installation: Drill 4 holes over the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten
  • Pole-mounted installation: Fix 1 set of the easy pole ring to the telecom pole
ABS FTTH 16 Core Fiber Distribution Box Indoor Outdoor IP55
Accessories
  • Users' Manual*1
  • Key*1
  • Accessories Bag *1
  • Easy pole ring*2 (Option)
