10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
Specifications
Brand Name :
DOWELL
Model Number :
DW-4005G
Place of Origin :
China
MOQ :
1000 pieces
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
5000PCS Per 7 Days
Delivery Time :
7- 15 Days
Housing Material :
PC (UL 94v-0) with gel sealed
Contacts Material :
Tinned Phosphor Bronze
Wire Insertion Force :
45N Typical
Wire Pull-Out Force :
40N Typical
Max Insulation Diameter :
1.65 mm
Cable Style and Wire Dia :
0.32-0.65 mm (28-22 AWG)
Description

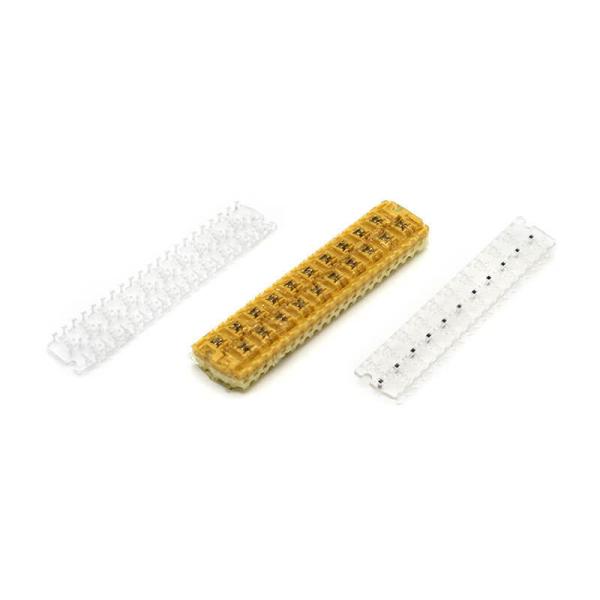

10-Pair Mini Splicing Module with Gel

10-pair Communication Cable Connecting Module is used to connect all plastic communication cables (diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit. The contact is designed into tuning fork type and sheet joint so that connection will not be hampered. With clear cover module, for easy pairs identification and troubleshooting.

Specification:

Housing Material
PC (UL 94v-0) with gel sealed
Contacts Material
Tinned Phosphor Bronze
Wire Insertion
Force
45N Typical
Wire Pull-Out
Force
40N Typical
Max Insulation
Diameter
1.65 mm
Cable Style and
Wire Diameter
0.32-0.65 mm (28-22 AWG)
Storage
Temperature
-40℃～ 120℃
Operating
Temperature
-30℃～ 80℃
Relative Humidity
<90% (@20℃)
Atemospheric
Pressure
70 Kpa～106 KPa
Insulation
Resistance
R≥10000M Ohm
Contact Resistance
Vary
1m Ohm
Constant
Current
5KA 8/20u Sec
Surge
Current
10KA 8/20u Sec

Application:

10-pair Communication Cable Connecting Module is used to connect all plastic communication cables (diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit. The contact is designed into tuning fork type and sheet joint so that connection will not be hampered. With clear cover module, for easy pairs identification and troubleshooting.
