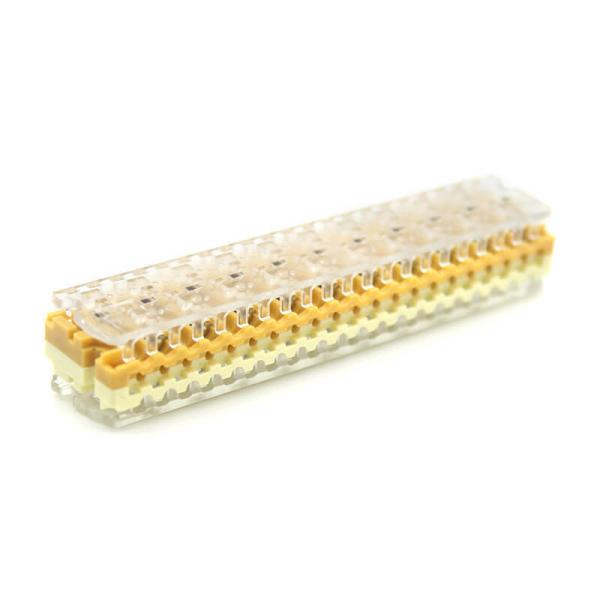

10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
10-Pair Splicing Module 22-28 AWG 0.32-0.65mm
Specifications
Brand Name :
DOWELL
Model Number :
DW-4005D
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T
Supply Ability :
5000pcs per week
Delivery Time :
7-15 days
Housing Material :
PC (UL 94v-0) without gel
Contacts Material :
Tinned Phosphor Bronze
Wire Insertion Force :
45N Typical
Wire Pull-Out Force :
40N Typical
Max Insulation Diameter :
1.65 mm
Cable Style and Wire Diameter :
0.32-0.65 mm (28-22 AWG)
Description
22-28 AWG 10-Pair Splicing Module without Gel
Product Overview
The 10-Pair Splicing Module without Gel is designed for connecting plastic communication cables (0.32-0.65mm diameter) through direct, bridge, or multiple connections in communication circuits. Its tuning fork and sheet joint contact design ensures reliable connections, while the clear cover allows for easy pair identification and troubleshooting.
Key Features
  • Designed for 22-28 AWG (0.32-0.65mm) communication cables
  • Tuning fork and sheet joint contact design for secure connections
  • Clear cover for easy pair identification
  • Gel-free design for cleaner installations
  • Suitable for direct, bridge, and multiple connection types
Technical Specifications
Housing Material PC (UL 94V-0) without gel
Contacts Material Tinned Phosphor Bronze
Wire Insertion Force 45N Typical
Wire Pull-Out Force 40N Typical
Max Insulation Diameter 1.65 mm
Cable Style and Wire Diameter 0.32-0.65 mm (28-22 AWG)
Storage Temperature -40℃ to 120℃
Operating Temperature -30℃ to 80℃
Relative Humidity <90% (@20℃)
Atmospheric Pressure 70 Kpa to 106 KPa
Insulation Resistance R≥10000M Ohm
Contact Resistance Vary 1m Ohm
Constant Current 5KA 8/20u Sec
Surge Current 10KA 8/20u Sec
