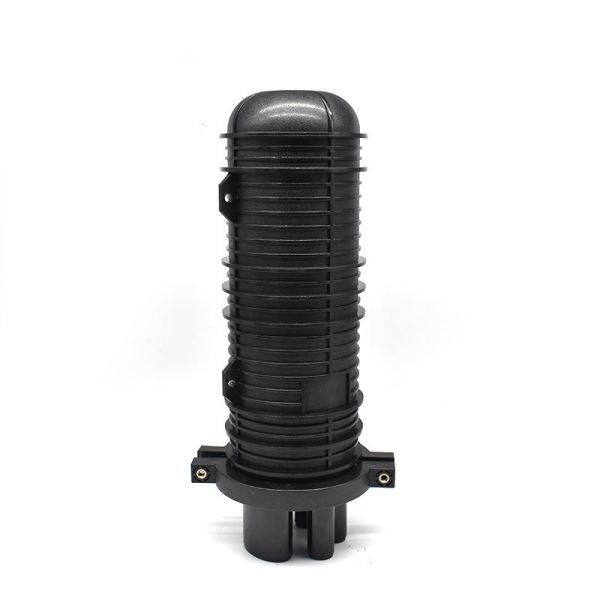

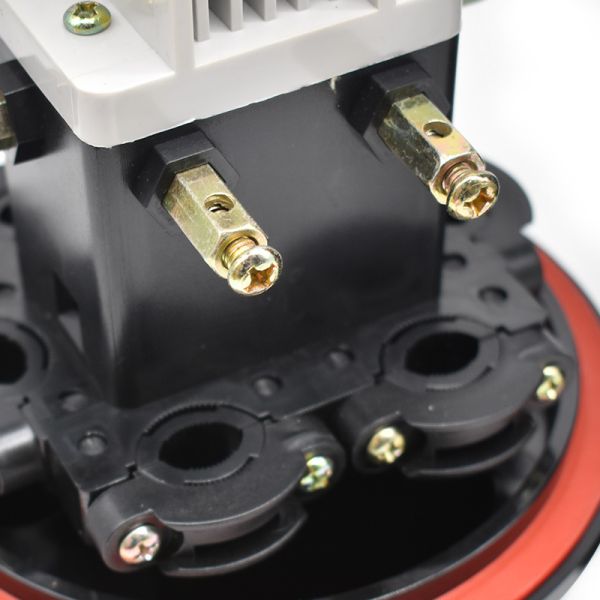

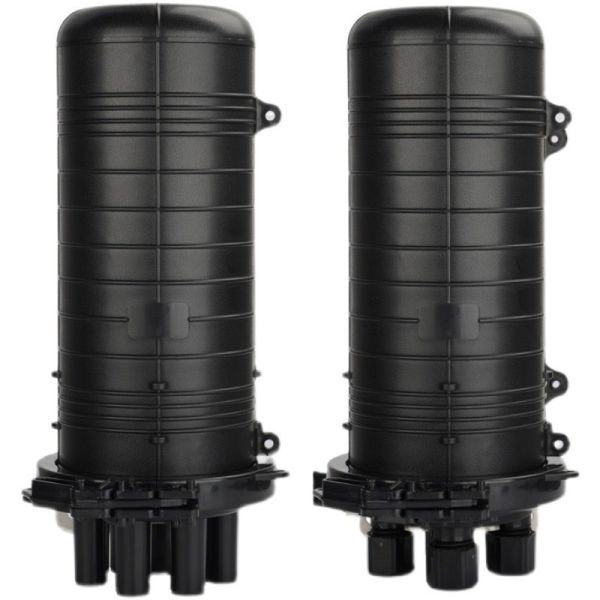

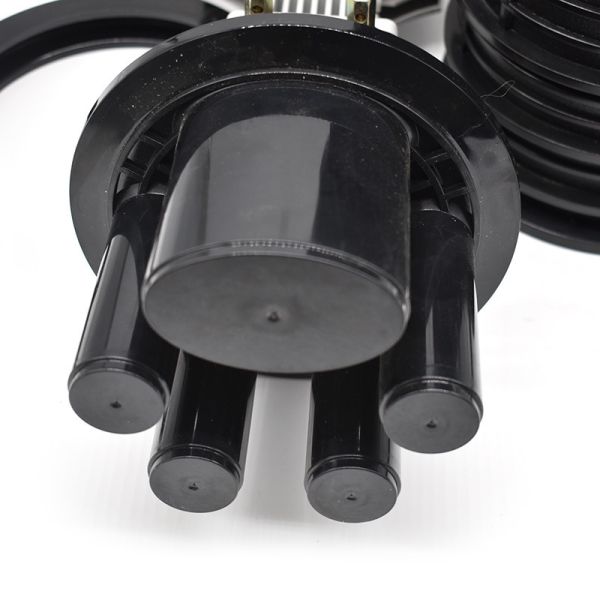

1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
Specifications
Brand Name :
DOWELL
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per 7 days
Delivery Time :
7-15 days
Environmental Rating :
IP67/IP68
Fiber Capacity :
24, 48, 96 fibers
Material :
PP
Installation Type :
Aerial (pole-mounted), underground (duct/burial)
Description
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure 24/48/72/96 Cores
Fiber optic splice closure (FOSC) is a fiber management product designed to enclose and protect the joint between two different fiber optic cables. Suitable for both outdoor and indoor installations, this vertical type closure features a robust shell with excellent water and corrosion resistance, ensuring uninterrupted fiber performance and stable light signal transmission.
Specifications
Material PC/PP/ABS
Cable Port 5
Max Number of Trays 4
Capacity of Single Tray 24 Fibers
Total Capacity 96 Fibers
Key Features
  • Superior internal structure design for optimal performance
  • Minimum 30mm fiber bending radius throughout routing
  • Constructed from non-corrosive materials for durability
  • Mechanical seal provides protection against harsh environments with easy assembly
  • Heat shrinkable cable sealing for secure connections
  • Dust proof and water proof construction
  • 90-degree rotatable splice trays with ample fiber storage space
  • Easy operation and capacity expansion without disturbing spliced fibers
  • Compatible with both bunchy cable and ribbon cable types
  • Suitable for aerial, underground, and duct mounting applications
1 In 4 Out Ports Vertical Type Fiber Optic Splice Closure IP67/IP68 Rated for 24/48/72/96 Cores
Applications
  • Splice Protection: Shields fiber splices from physical impact, water ingress, corrosion, and harsh weather conditions
  • Cable Management: Organizes fiber slack, pigtails, and splice trays for neat routing and maintenance
  • Signal Integrity: Prevents signal loss caused by environmental interference or mechanical stress
  • Expandability: Accommodates additional fibers or splices as network capacity grows
  • Versatility: Adapts to various installation environments including underground, aerial, and indoor applications
