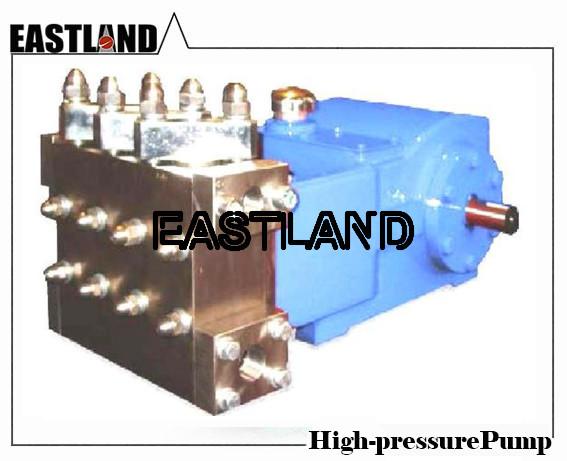

Sell T9 Triplex Plunger Pump Made in China
Sell T9 Triplex Plunger Pump Made in China
Specifications
Brand Name :
EASTLAND
Model Number :
T9
Place of Origin :
China
MOQ :
1 set
Price :
USD 10000-20000set
Payment Terms :
T/T
Supply Ability :
10 sets/month
Delivery Time :
15-20 days
Packaging Details :
case
Cylinder Material :
Stainless steel
Liner :
ceramic or hi-chrome liner
Piston :
NBR or Polyurethane
Valve & Seat :
API standard valve & seat
Color :
as required
Delivery :
FOB Qingdao
Description

Gaomi Eastland Oilwell Machienry Co.,Ltd

Our triplex high-pressure reciprocating pump are mainly used for

water injection
high-pressure reciprocationg oil(crude oil) transportation
liquefield Co2 injection
high-pressure steam boiler feed water pump
Co2 super critical extraction
mud pump
ammonia water pump
high-pressure scale-washing pump
high-pressure cleaning units
pressure test pump,
copper liquid pump
detergent slurry pump
sea water pump(pump used in desalination of sea water)
high-pressure swphosphorizing pump
chemical feeding pump
increase pressure water pump
ejection pump
hyper pressure pump
polymer injection pump

The Model T9 is a single acting triplex plunger pump rated at 9 HP in continuous duty services and up to 6.7 HP in intermittent duty. This versatile pump is offered with
a variety of material and design options that make it ideal for general industrial, reverse osmosis, and typical applications involved in the production of oil and natural gas.

Specifications
English Units Metric Units Continuous Intermittent
Stroke Length 35 mm Rated bhp 9 HP 13.8 HP
Rated Rod Load 1984 lb 900 Kg Maximum Speed 430 rpm 600 rpm
Pump Weight 210 lb 105 Kg Minimum Speed 90 rpm 75 rpm
Oil Capacity 0.53 gal 2.0 L Max. plunger size x stroke length. 42x35 mm
Max. Fluid Temp 284 ° F 150 ° C Crankshaft extension Dia.x length 30x52 mm
Mechanical Efficiency 90% Keyway (width x depth x length) 8x4x50 mm


Performance Ratings(Volumes indicated are displacement of incompressible fluid)

plunger Dia. L/RPM Gal/RPM Max.Press. pump speed=90RPM pump speed=200RPM pump speed=300RPM pump speed=430RPM pump speed=500RPM pump speed=600RPM
mm in Mpa Psi LPM GPM M3/h LPM GPM M3/h LPM GPM M3/h LPM GPM M3/h LPM GPM M3/h LPM GPM M3/h
11 0.43 0.010 0.003 80.0 1160
0		 0.9 0.2 0.1 2.0 0.5 0.1 3.0 0.8 0.2 4.3 1.1 0.3 5.0 1.3 0.3 6.0 1.6 0.4
13 0.51 0.014 0.004 63.0 9135 1.3 0.3 0.1 2.8 0.7 0.2 4.2 1.1 0.3 6.0 1.6 0.4 7.0 1.8 0.4 8.4 2.2 0.5
15 0.59 0.019 0.005 50.0 7250 1.7 0.4 0.1 3.7 1.0 0.2 5.6 1.5 0.3 8.0 2.1 0.5 9.3 2.4 0.6 11.1 2.9 0.7
17 0.67 0.024 0.006 40.0 5800 2.1 0.6 0.1 4.8 1.3 0.3 7.1 1.9 0.4 10.2 2.7 0.6 11.9 3.1 0.7 14.3 3.8 0.9
19 0.75 0.030 0.008 32.0 4640 2.7 0.7 0.2 6.0 1.6 0.4 8.9 2.4 0.5 12.8 3.4 0.8 14.9 3.9 0.9 17.9 4.7 1.1
21 0.83 0.036 0.010 25.0 3625 3.3 0.9 0.2 7.3 1.9 0.4 10.9 2.9 0.7 15.6 4.1 0.9 18.2 4.8 1.1 21.8 5.8 1.3
24 0.94 0.047 0.013 20.0 2900 4.3 1.1 0.3 9.5 2.5 0.6 14.2 3.8 0.9 20.4 5.4 1.2 23.7 6.3 1.4 28.5 7.5 1.7
26 1.02 0.056 0.015 16.0 2320 5.0 1.3 0.3 11.1 2.9 0.7 16.7 4.4 1.0 24.0 6.3 1.4 27.9 7.4 1.7 33.4 8.8 2.0
30 1.18 0.074 0.020 12.5 1813 6.7 1.8 0.4 14.8 3.9 0.9 22.3 5.9 1.3 31.9 8.4 1.9 37.1 9.8 2.2 44.5 11.8 2.7
33 1.30 0.090 0.024 10.0 1450 8.1 2.1 0.5 18.0 4.7 1.1 26.9 7.1 1.6 38.6 10.2 2.3 44.9 11.9 2.7 53.9 14.2 3.2
37 1.46 0.113 0.030 8.0 1160 10.2 2.7 0.6 22.6 6.0 1.4 33.9 8.9 2.0 48.5 12.8 2.9 56.4 14.9 3.4 67.7 17.9 4.1
41 1.61 0.139 0.037 6.3 914 12.5 3.3 0.7 27.7 7.3 1.7 41.6 11.0 2.5 59.6 15.7 3.6 69.3 18.3 4.2
Brake Horsepower Required 2.1 4.6 6.9 9.9(Continuous work) 11.5 13.8
