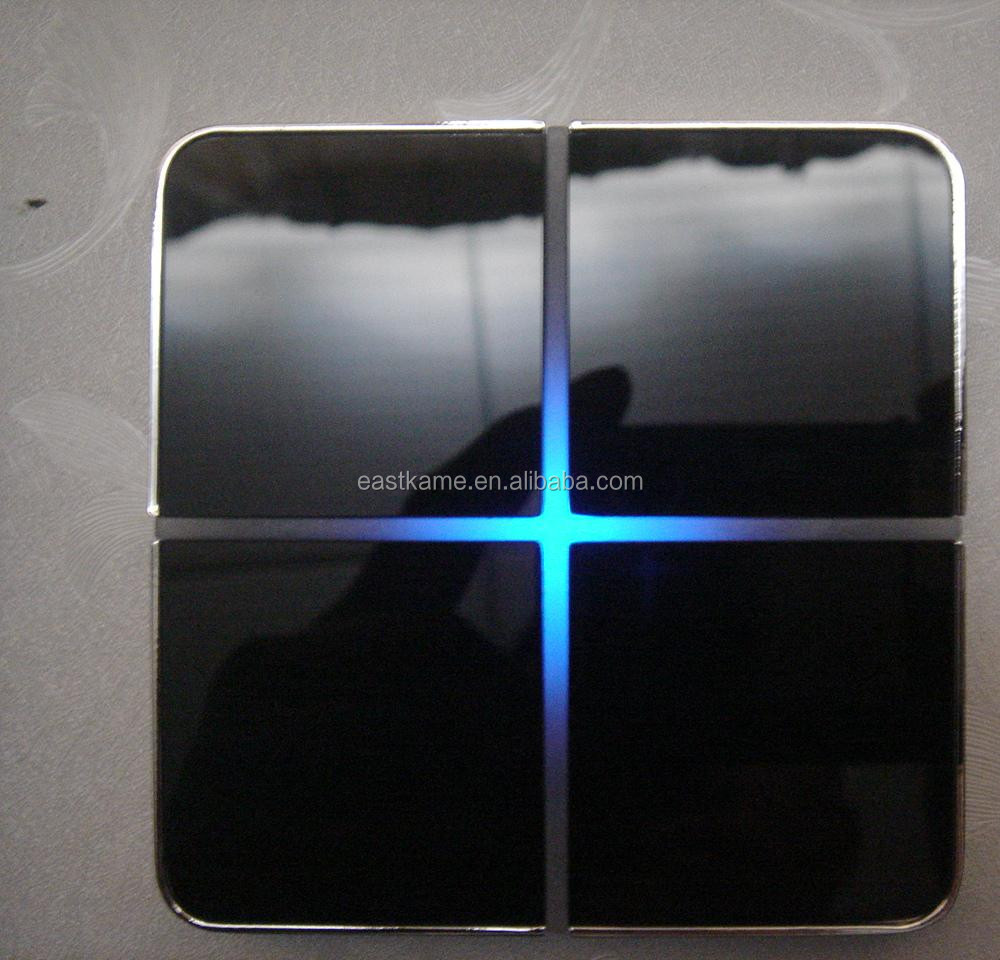

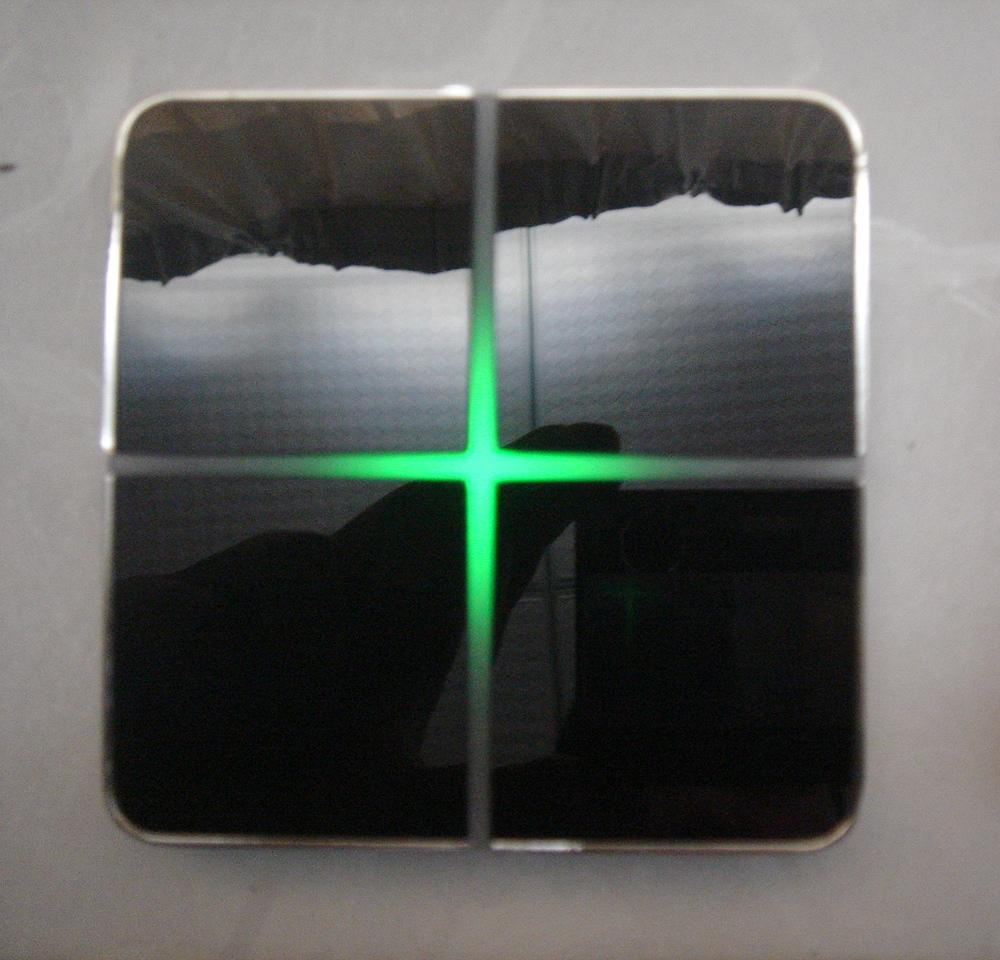

China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
China Manufacturer Eastkame KNX/EIB Intelligent Installation System and Wall Switch or Lights Switch
Specifications
Max. Voltage :
21-30 v
Mechanical Life :
1000000times
Model Number :
EK-KX4021
Customized support :
Software Reengineering
Brand Name :
eastkame
Place of Origin :
Guangdong, China
Price :
$85-130 / piece
MOQ :
10 pieces
Max. Current :
Max 12mA
Network :
SDK
Description

China manufacturer Eastkame KNX/EIB Intelligent Installation System and wall switch or lights switch

Price only refence,if you sent me email or add my whatsapp +8613798404661

i can give you best price. thanks!

Product Description

This manual provides you the detailed technical information about the Switch Actuators, not only the installation and programming details, but also the usage explanation in actual application. They can be installed in the distribution boards on 35mm mounting rails according to EN60715.

These switch actuators can be used to control the switch loads, such as:

  • intelligent switch
  • Lighting
  • Heating control
  • Signal devices
Electrical source: work 21 ~ 30 V dc bus voltage electric
The working current: Max 12 ma
Power consumption: Max250mA
Output: 4
Rated current, ac 250 vac Hz16A (50 ~ 60)
Temperature range: - 5 ℃ ~ 55 ℃
Installation method: standard 35 mmdin guide installation

The switch actuators are the modular installation devices, with 8 and 12 outputs for selection, using KNX connection terminals to connect to the system. The switch actuators need to connect an extra 230V AC power supply and provide to 4 outputs. It is able to use the Engineering Tool Software ETS (ETS2 v1.3 or later) with a VD2/VD3 file to allocate the physical address and set the parameters.

If the 230V AC power supply is not connected, all LEDs are flashing for indicating output state on the device.

It is able to switch from 4 to 8 independent electrical AC loads or three-phase loads and 4 electrical AC loads with the same phase of the 230V AC power supply by the switch actuators with maximum output of 6A per output and manual switch, as well as visible switching status via LED indication.

There are same following programming functions for each output:

w time function: on/off delay

w staircase function with the warning and adjustable staircase lighting time

w scene, preset control: 8bit/1bit

w logic operation: AND, OR, XOR, gate function

w status response

w forced operation and safe function

w threshold function setup

w control of electro thermal valve function

w manual operation switch

w indication of switch status (contact position)
