Acrylic EAS RFID Anti-shoplifting System for Library Security
Acrylic EAS RFID Anti-shoplifting System for Library Security
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SUNLEADER
Model Number :
XLD-RFID02
frequency :
13.56mhz
material :
acrylic
detection distance :
90cm-130cm
usage :
library
Packaging Details :
carton or wooden box
Port :
Shenzhen
Supply Ability :
100 Piece/Pieces per Month
MOQ :
2 pieces
Price :
$1,000.00 - $2,000.00/pieces
Description

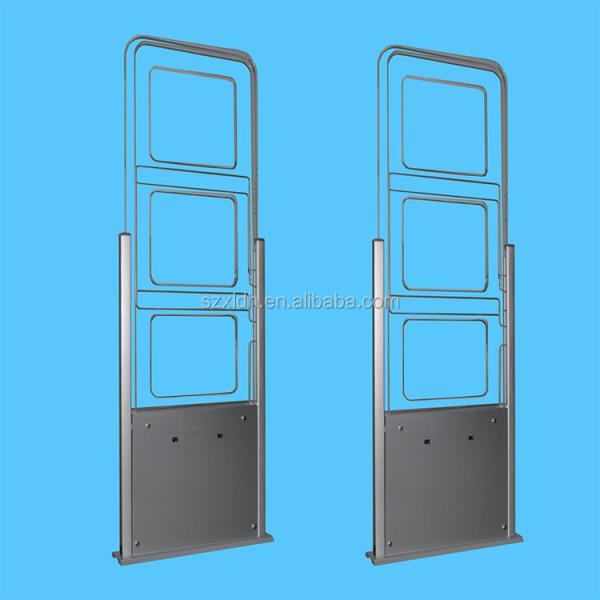

XLD-RFID02 is a high performance RFID Library Anti-theft Gate which can read tags in three-dimensional orientation complying with ISO/IEC 15693,ISO18000-3 protocol.

XLD-RFID02 RFID anti-theft gate supports AFI, EAS, AFI+EAS, UID detection model, with light and alarm double warning, supports offline application and muti gate antenna using, automatically people counting and displaying the number of check-in/ check-out . Mainly used in smart library, achieve etc fields. The gate width can reach up to 130cm.

Mainly Features:

·Three-dimensional orientation detecting, tags can be detected in all directions.

·gate width from 90 to 130cm(relative to tags quality and size).

·Support multiple -channel application

·EAS and AFI optional detection

·Support EAS+AFI mixed detection

·Support Tag UID detection

.People counter with the in/out people numbers

·Support relay output control

·Support firmware upgrade

.Support OEM service

Technical Parameters

Operating Frequency

13.56MHz±7KHz

Protocol

ISO / IEC15693, ISO18000-3

Aisle Width

Maximum: 90cm(relative to the tags quality and size)

Infrared Sensors

2 pairs

Communication Interface

standard RS232 / Ethernet, RJ45(optional)

Output Impedance

50Ω

Tag overlapping area

Max:25%( adjacent tags)

Cascade NO.

Max: 99pcs

Rated Power

<25W

Operating Voltage

220VAC 50/60Hz

Environmental
Parameters

Operating Temperature

-10℃~55℃

Storage Temperature

- 20℃~70℃

Humidity Range

20%~90% RH

Physical Parameter

Dimensions

Antenna body size

Pedestal size

L*W*Thickness(mm): 1663*630*46mm

L*W(mm): 697*120

Weight/pc

30Kg

Color

Transparent

Housing Material

Acrylic
