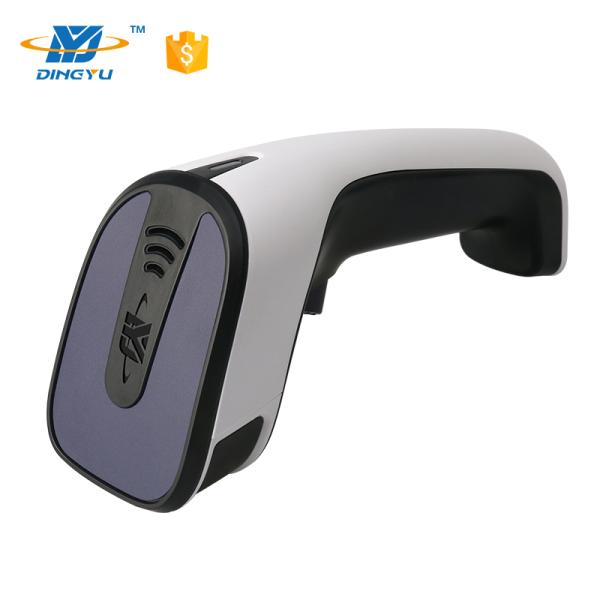

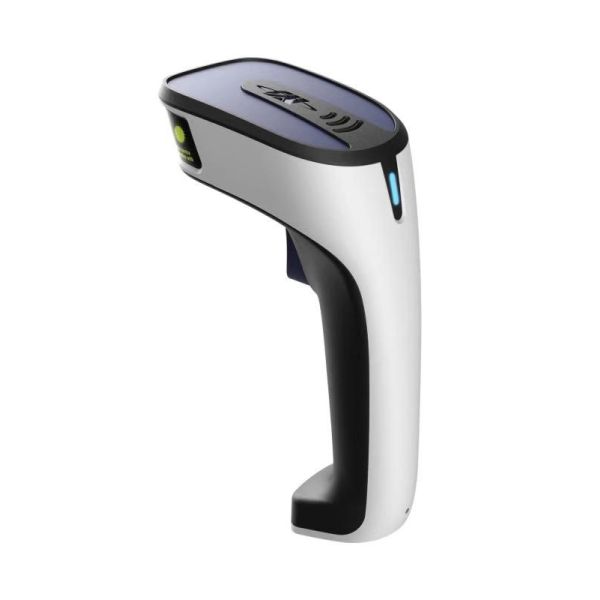

Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode

Specifications

MOQ :

Model NO. :

DS6600B

Interface Type :

USB

Scan Speed :

25cm/S

Scan Element :

CMOS

Decoding Speed :

25cm/S

Depth of Field :

55-350mm

Scan Mode :

Trigger Mode Auto Sense Mode

Visual Angle :

Horizontal 40° Vertical 30°

Print Contrast :

25% PCS

Dimension :

L180mm * W60mm * H80mm

Battery Capacity :

2200mAh

Working Time :

16hours

Resolution :

4mil/0.1mm(PCS90%,Code 39)

Weight :

160g

Light Source :

White LED Aiming; Red LED, 525nm

Description

1d Qrcode Barcode Scanner 2.4GHz Handheld Wireless Retail Barcode Scanner

Scan Type	CMOS
Light Source	lighting: white LED Aiming; Red LED,wavelength coverage 525nm
CPU	ARM32-bit
Resolution	640×480 CMOS
Resolution	20-550mm
Start up time	4s
Decoding speed	25CM/S
Depth of field	3mil:55~100mm,13mil:55~350mm
Scan Mode	Trigger mode,Auto sense mode
Scan angle	Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
Visual angle	Horizontal 40°× Vertical 30°
Print Contrast Signal	≥25% PCS
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec

Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months

Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.

Q6: What are your strengths?
DYscan: We are a professional scanner manufacturer. The company is divided into different departments, each with its own director. The R&D department is responsible for the development of new products. The production department is responsible for the production and testing of products. The Marketing and Sales department consists of the sales team, and customer services.

Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug and play. No drivers need to be installed. It can be used in Windows, Mac OS, IOS, Linux, UNIX, Android, etc.
