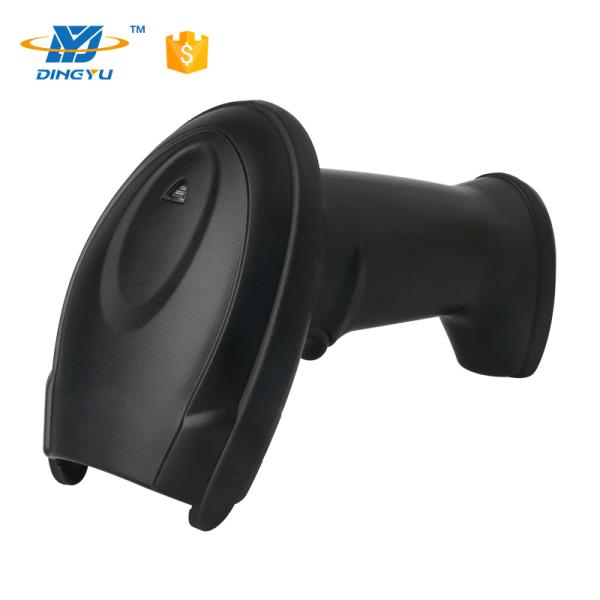

Wireless 2.4G Handheld Barcode Scanner with 30-600mm Depth of Field and 65cm/S Decoding Speed for POS Terminal

Specifications

MOQ :

Price :

Model NO. :

DS5900-2D

Interface Type :

USB

Scan Element :

CMOS

Camera Resolution :

640*480

Barcode Resolution :

3mil Code39

Depth of Field :

30-600mm

Decoding Speed :

65cm/S

Weight :

160g

Drop Height :

1.5m

Operating Temperature :

-20 to 55 Degree

Storage Temperature :

-40 to 60 Degree

Dimensions :

L165.5mm * W63.5mm * H92.3mm

CPU :

32 Bit

Print Contrast :

15%

Cable Length :

1.5m

Description

1D 2D QR code Wired Scanner Handheld POS Terminal Barcode Scanner

DS5900-2D is wired 2D handheld barcode scanner with good fall resistance.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment,
express delivery, inventory management, food traceability, asset inventory,etc.

Scan Type	CMOS
Light Source	Red Light LED 525±10nm(aim), 5600K LED ( Lighting) Note: global exposure camera, lighting brightness will change automatically according to different reading distance.
CPU	32-bit
Resolution	640*480
Resolution	≥3mil/0.1mm(PCS90%,CODE 39)
Decoding speed	65CM/S
Depth of field	30-600mm
Scan view	41° * 31°
Scan mode	Manual , Continuous, Auto Sense
Scan angle	Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater)
Print Contrast Signal	≥15%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban (Brazil bank code),GS1 Composite, Japan post, etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.

Weight	≈160g(without cable)
Dimension	L165.5mm * W 63.5mm * H92.3mm
Interface Type	USB
Cable length	1.8m
Power Supply	DC5V input, decoding current:200mA

Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60ºC
Low Temp.	-20ºC
Transport vibration Test	10H@125RPM
