Mini 2D Barcode Scanner Module with 4mil Resolution 640*480 Image Sensor and 32-bit CPU

Specifications

MOQ :

Price :

Model NO. :

DE2106

Interface Type :

USB

Scan Speed :

25cm/S

Scan Element :

CMOS

Resolution :

4mil

Image Sensor :

640*480

Scan Mode :

Auto Scan, Continuous

Print Contrast :

25%

Weight :

3.5g

Power Supply :

DC 3.3V, 150mA Work

Dimensions :

22mm L * 14.6mm W * 11.3mm H

Drop Height :

1.2m

Operating Temp. :

-20ºC to 50ºC

Storage Temp. :

-40ºC to 60ºC

Humidity :

5% to 95% (non-condensing)

Description

Barcode Scanner Reader USB TTL Mini Embedded 2D Barcode Scanner Module

DE2106 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.

It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.

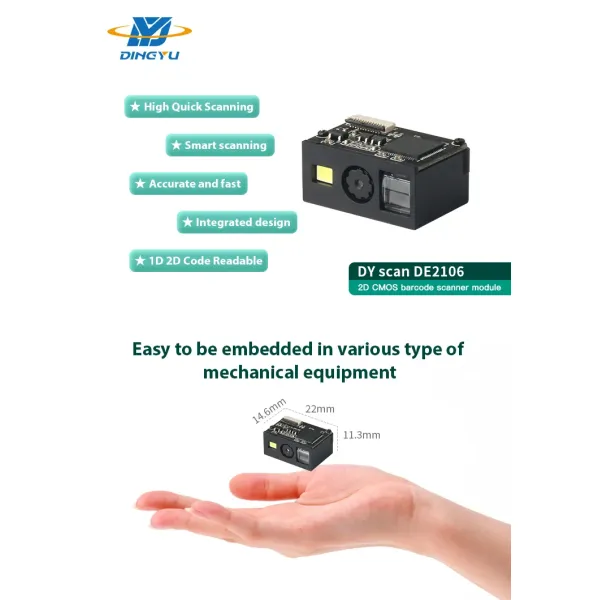

Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

☆ Mini size, widely used in wireless machine, self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ High brightness, dark environment scanning, low power consumption.

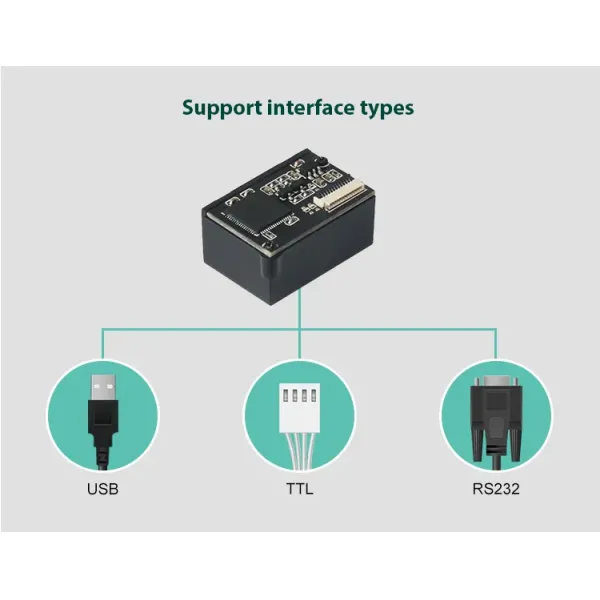

☆ Interface: USB, TTL.

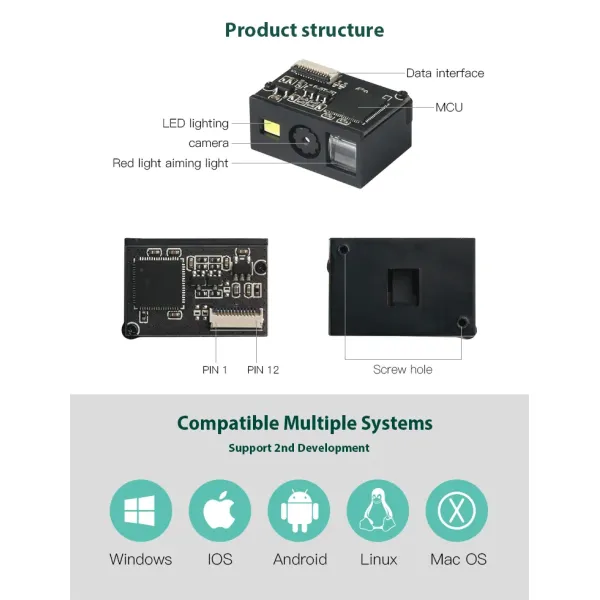

☆ Support multiple systems and languages, secondary development.

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	25CM/S
Scan view	36°*28°
Scan Mode	Manual, Auto sense, Continuous
Scan angle	Pitch:±50°, Roll: ±360°, Skew: ±50°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7),etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc.

Weight	<3.5 g

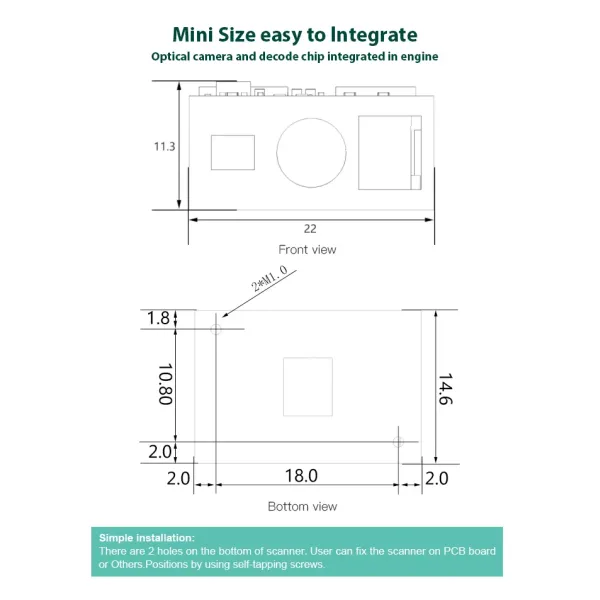

Dimension	22mm L * 14.6mm W * 11.3mm H
Communication	USB(USB-KBW,USB-COM) , TTL

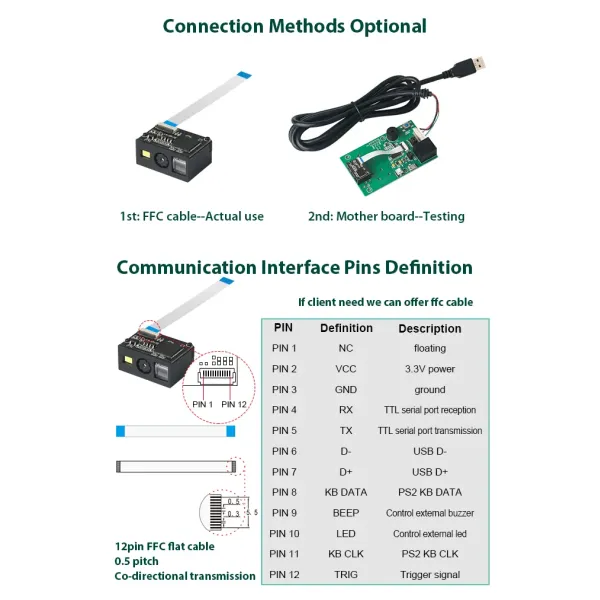

Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V, 150mA(Work)

Operating	-20ºC to 50ºC
Storage	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
HighTemp.	60ºC
LowTemp.	-40ºC
Transport	10H@125RPM
