High-Performance 2D Barcode Scanner Module with 3mil/0.076mm Resolution and 640*480 Image Sensor

Specifications

MOQ :

Price :

Model NO. :

DE2290D

Interface Type :

USB

Scan Speed :

65cm/S

Scan Element :

CMOS

Resolution :

3mil/0.076mm

Image Sensor :

640*480

Scan Mode :

Auto Scan, Continuous

Print Contrast :

20%

Weight :

3.5g

Power Supply :

DC 3.3V, 200mA Work

Dimensions :

21.35mm L *15.50mm W * 11.40mm H

FFC Cable :

5cm

Drop Height :

1.2m

Operating Temperature :

-20ºC to 50ºC

Storage Temperature :

-40ºC to 60ºC

Description

High-Performance 2D Barcode Scanner Module with 3mil/0.076mm Resolution and 640*480 Image Sensor

2D Embedded Qr Code Reader Mini Barcode Scanner Qr Code Scanner Module

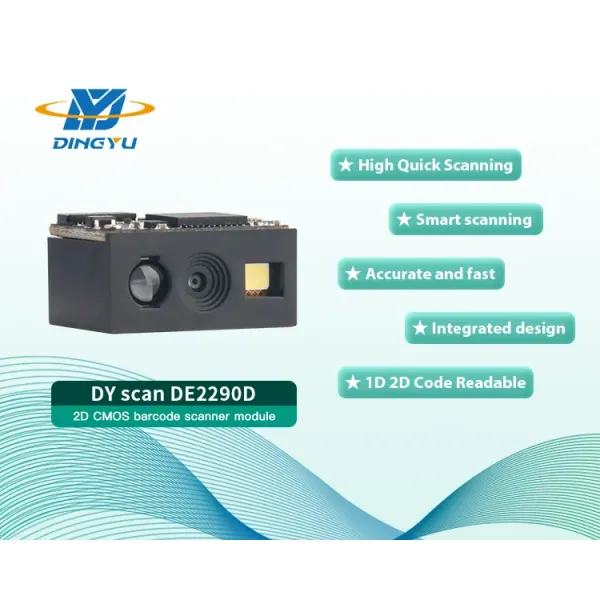

DE2290D is a high-performance 300,000 global pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system.

With excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.

The integrated compact design allows for easy insertion into a wide range of equipment.

Widely used in various types of self-service machines, price checking machines, lockers,etc.

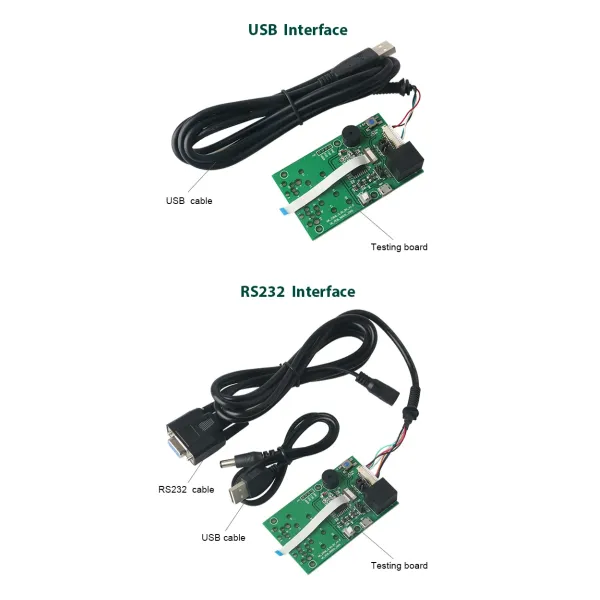

Communication	USB(USB-KBW,USB-COM,HID-POS),TTL
Scan Type	CMOS,Global shutter
Resolution	300,000 pixel, 640*480
Reading precision	≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field	30mm~550mm(Different barcode range)
Decoding speed	65CM/S
Scan Mode	Manual , Continuous, Auto Sense, Command control
Prompt method	LED indicator light, buzzer (external circuit)
Field of view	41° * 31°
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Roll: ±360°,Pitch:±60°,Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7), MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban Brazil Bank Code,GS1 Composite, etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Japan post, Postnet, etc.

Weight	About 3.5g

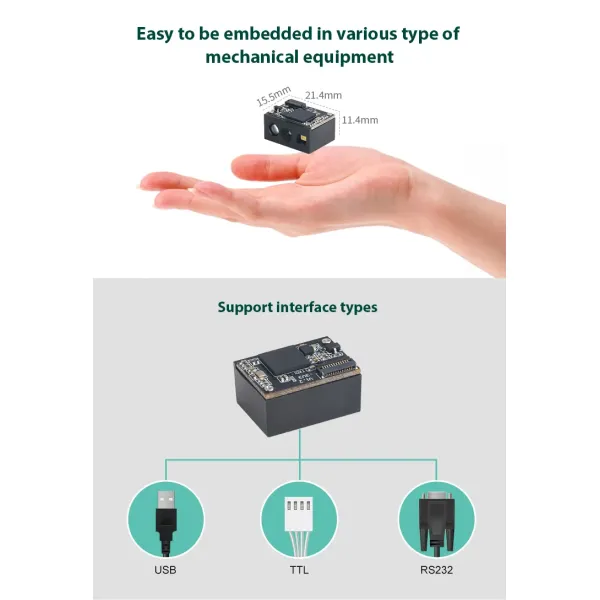

Dimension	21.35mm L 15.50mm W 11.40mm H
FPC cable length	5CM (FPC single-sided cable)

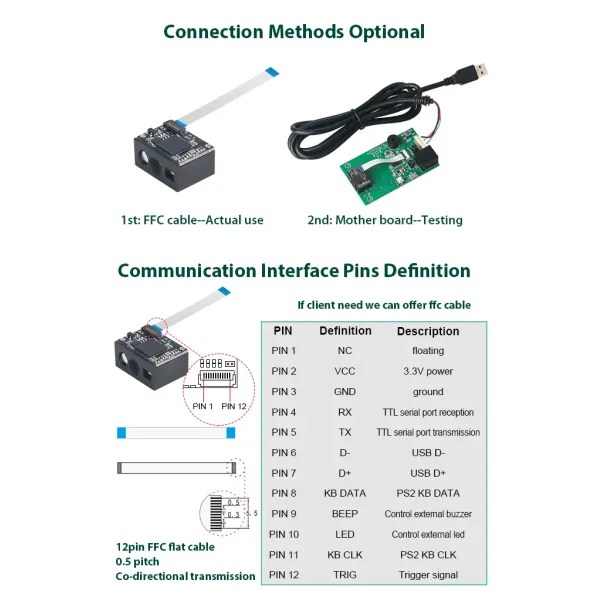

Interface Type	FPC 12PIN Pitch 0.5
Power Supply	DC 3.3V
Current	200mA(Average Work), 95mA(Standby),38mA(Sleep)

Operating	-20ºC to 50ºC
Storage	-40ºC to 60ºC
Humidity	5% to 95%(No condensation)
Transport	10H@125RPM
