Specifications

MOQ :

Price :

Model NO. :

DE2690D

Interface Type :

USB

Scan Speed :

65cm/S

Scan Element :

CMOS

Resolution :

3mil/0.076mm

Image Sensor :

1280*480

Pixel :

1 Million

Sensor Type :

CMOS,Global Shutter

FFC Cable :

5cm

Drop Height :

1.2m

Weight :

5.5g

Depth of Field :

70-750mm

Dimensions :

28.3mm L* 19.1mm W * 12.0mm H

Power Input :

3.3V, 220mA (Work), 120mA(Standby),40mA(Sleep)

Operating Temperature :

-20ºC to 55ºC

Description

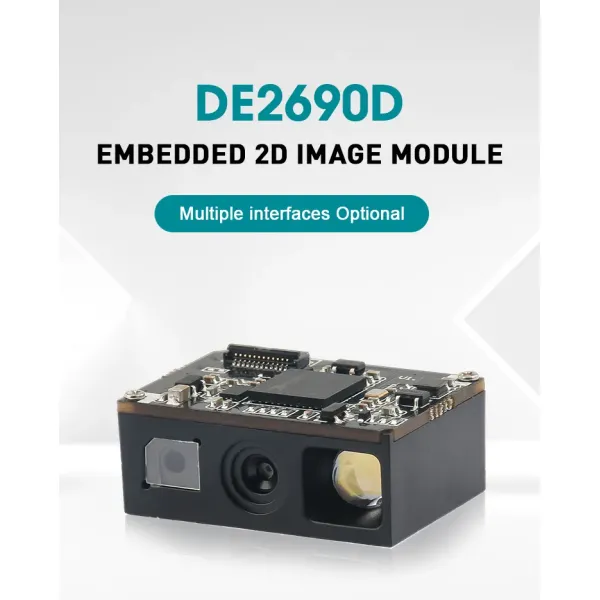

OEM ODM Mini OCR passport ID card Embedded Barcode Scanner 2D Wired Module

Weight	5.5g(without cable)

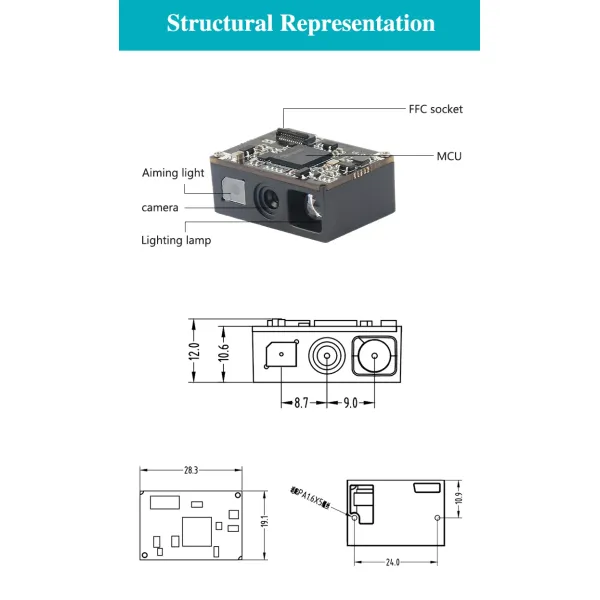

Size	28.3mm L* 19.1mm W * 12.0mm H

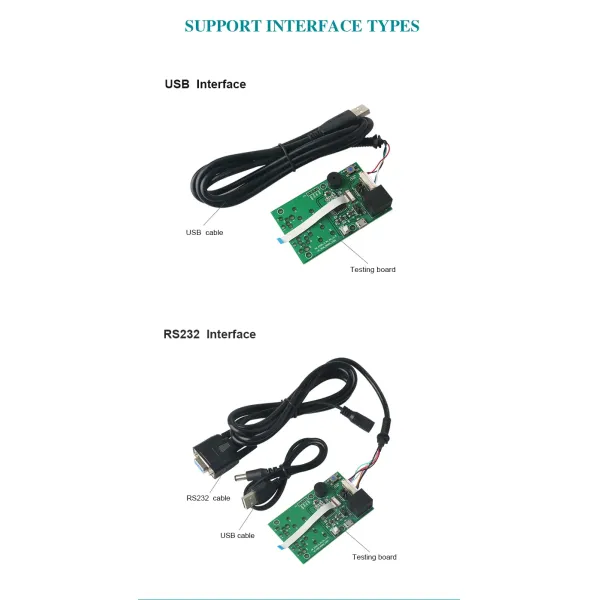

Interface	USB,USB-com(need driver),TTL (USB protocol:Full Speed ,USB 2.0)
Light Source	lighting: white LED(Automatically adjust brightness according to distance) Aiming; Red LED,wavelength coverage 525nm
CMOS	1280×800 CMOS
CPU	ARM32-bit
Resolution	1D:≥3mil
Depth of field	70-750mm (Different barcode types)
Scan mode	Manual,Auto scan mode, Continuous, Command control
Prompting mode	LED indicating lamp,buzzer
Reading angle	Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater)
Visual angle	Horizontal 42°× Vertical 27° 3° °
Motion tolerance	65cm/s
Power input , current	3.3V, 220mA (Work), 120mA(Standby),40mA(Sleep) standby current:40mA,Decoded average current:279mA
Print contrast	15%
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.
operating temperature	-20ºC to 55ºC
storage temperature	-40ºC to 70ºC
Humidity	5% to 95%(non-condensing)
Transport vibration test	10H@125RPM

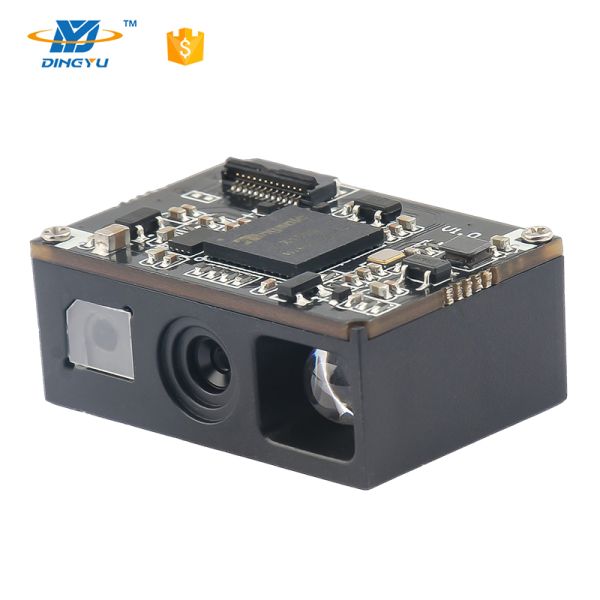

Embedded 2D Barcode Scan Engine with 1280*480 Resolution and 1 Million Pixel CMOS Sensor
