Small Embedded 2D QR Code Barcode Scanner Module with 1 Million Pixel CMOS Image Recognition and 65cm/s Scan Speed

Specifications

MOQ :

Price :

Model NO. :

DE2390

Interface Type :

USB

Scan Speed :

65cm/S

Scan Element :

CMOS

Resolution :

3mil/0.076mm

Image Sensor :

1280*800

Scan Mode :

Auto Scan, Continuous

Print Contrast :

20%

Power Supply :

DC 3.3V, 200mA

Dimensions :

21.5mm L* 15.9mm W * 11.30mm H

Light Source :

White LED, Red LED

CPU :

ARM32-bit

Depth of Field :

50mm~750mm

Motion Tolerance :

65cm/s

Operating Temperature :

-20ºC to 50ºC

Description

Small Embedded 2D Qr Code mini passport OCR image Barcode Scanner Module

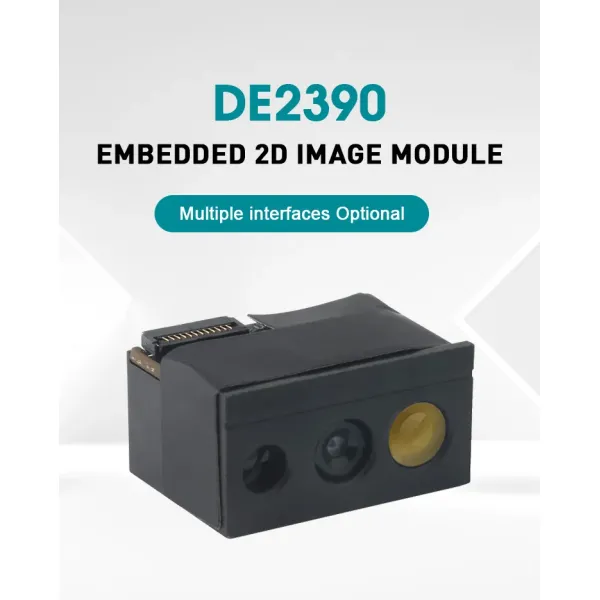

DE2390 is a high-performance embedded 2D barcode module with advanced CMOS image recognition technology.
1 million pixel global camera with excellent reading performance, can easily read paper, screen and other barcodes on the media.
It has OCR function, which support reading some ID and passport characters.

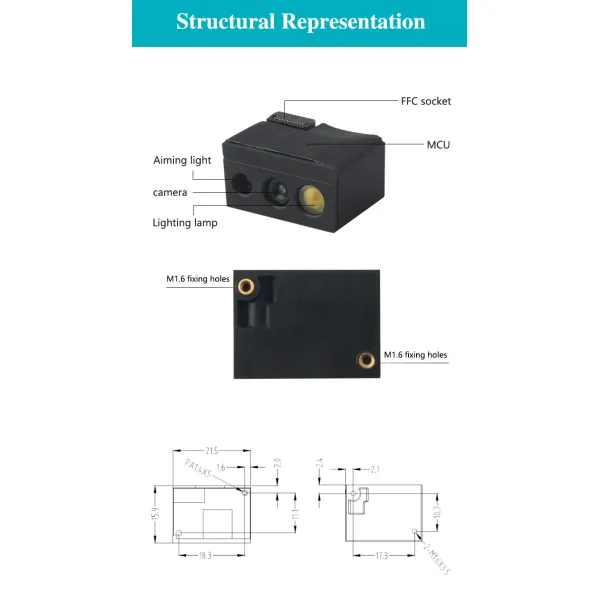

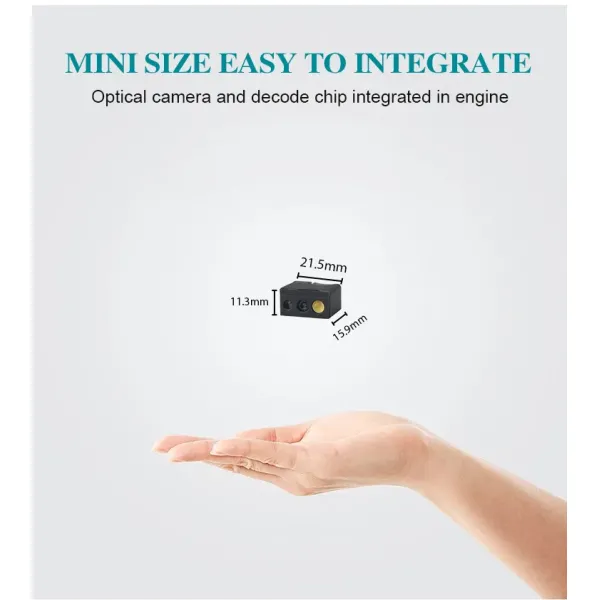

Size	21.5mm L* 15.9mm W * 11.30mm H
Interface	USB,USB-com(Need driver) ,TTL (USB protocol:Full Speed ,USB 2.0)
Light Source	Lighting: white LED Aiming: Red LED,wavelength coverage 525nm
CMOS	1280*800 CMOS
CPU	ARM32-bit
Resolution	≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field	50mm~750mm ( Different barcode types)
Scan mode	Trigger mode,Auto scan, Continuous, Command control
prompting mode	LED indicating lamp,buzzer
Reading angle	Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater)
visual angle	Horizontal 40°× Vertical 27°
Motion tolerance	65cm/s
Power input	3.3V, standby current:95mA,Decoded average current:200mA
Print contrast	20%PCS
Symbologies	1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.
operating temperature	-20ºC to 50ºC
storage temperature	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Transport vibration test	10H@125RPM
