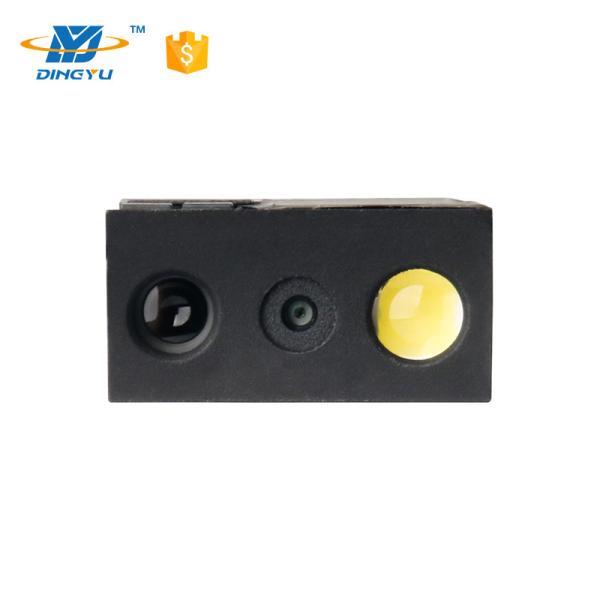

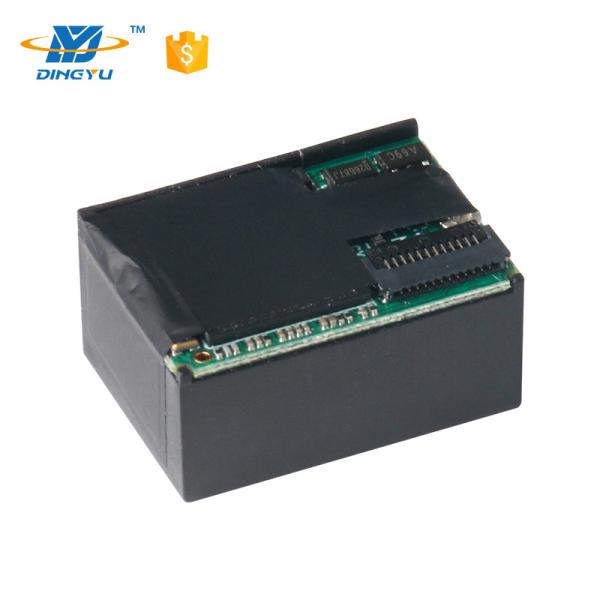

Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module
Specifications
Brand Name :
Dingyu/ DY SCAN
Model Number :
DE2290
Certification :
CE, ROHS, FCC, IEC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T, Paypal, Alibaba
Supply Ability :
100,000pcs/month
Delivery Time :
3-7 days
Packaging Details :
188mm L * 95mm W * 40mm H
Interface Type :
FFC 12PIN Pitch 0.5
Communication Mode :
USB(USB-KBW,USB-COM),TTL
Depth of field :
30-500MM
CPU :
32 bit
Weight :
3.4g
Print contrast :
20%
Camera :
1280*800
Description

Manual Auto Sense Barcode Module Resolution 3Mil Barcode Scanner Module

Parameter

Weight 3.4g(without cable)
Size 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
Interface

USB,USB-com(Need driver) ,TTL

(USB protocol:Full Speed ,USB 2.0)
Light Source Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm
CMOS 1280*800 CMOS
CUP ARM32-bit
startup time 750ms
Resolution ≥3mil/0.076mm(PCS90%,CODE 39)
Depth of field 30-500mm
Scan mode Trigger mode,Auto sense mode, Command control
prompting mode LED indicating lamp,buzzer
Reading angle Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
visual angle Horizontal 40°× Vertical 30°
Motion tolerance 65cm/s
Power input 3.3V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA
Print contrast 20%PCS
Ambient Light 70000Lux
Symbologies

1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code)

2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec
operating temperature -20℃ to 55℃
storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Transport vibration test 10H@125RPM
