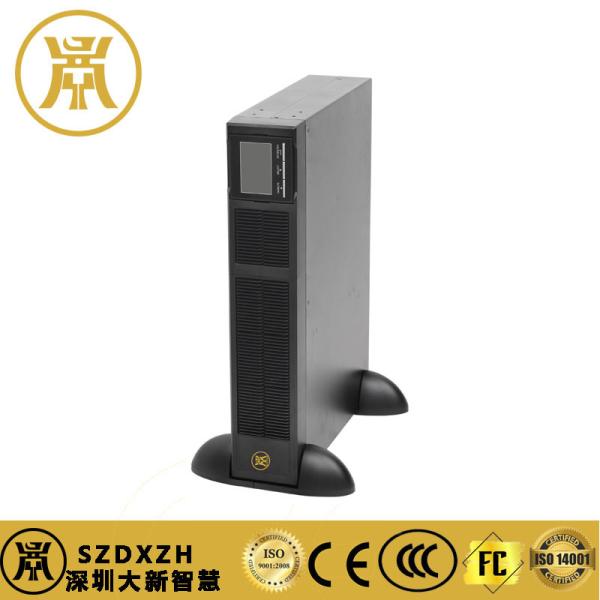

Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
Specifications
Brand Name :
Daxin
Model Number :
H2KR(L)
Certification :
ISO9001,CE,3C,FCC,TLC,IP55
Place of Origin :
Shenzhen,China
MOQ :
1 set
Payment Terms :
T/TD/A,Western Union,Paypal,etc
Supply Ability :
3000pcs/month
Delivery Time :
20-40 days
Packaging Details :
Woodcase
Price :
Negotiation
Product Name :
Online High Frequency UPS
Transfer time :
0ms
Input/ Output :
Single phase
Output Voltage :
208/220/230/240VAC ±1%
Load capacity :
2kVA/1.6kW
Installation method :
Rack/ tower type
External battery :
Support
LCD Display :
Yes
Description

Mission Critical Power Solution High-Density Online UPS With Load Capacity 2kVA/1.6kW

Mission Critical Power Solution High-Density Online UPS​ Introduction:

Designed for data centers and industrial applications, the H2KR(L) delivers 98.5% efficient power conversion with generator compatibility. Its advanced MCU control system provides intelligent power management and real-time system diagnostics.

Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply

Complete Technical Specifications:

Category Parameter Specification
Input Specifications Voltage Range 110-300VAC ±5%
Frequency Range 40-70Hz
THDi <5% @100% load
Crest Factor 3:1
Output Specifications Voltage Regulation ±1%
Frequency Regulation ±0.25Hz
Waveform Distortion <3% THD
Peak Current Ratio 3:1
Battery System Standard Configuration 4×12V/9AH
Extended Runtime 6×Custom
Charging Algorithm 3-stage smart charging
Float Voltage 13.5-13.8V/cell
Communication Standard Interface RS-232/USB
Optional Interface SNMP/Webcard
Monitoring Software Multi-platform support
Mechanical Dimensions 410×438×88mm
Weight 19kg (Standard)
Cooling System Temperature-controlled fan
Reliability MTBF >200,000 hours
Design Life 10 years
Warranty 2-3 years

Applications/ Best for :

  • Government
  • Military
  • Banking
  • Financial
  • Server
  • Network Workstation
  • Network Closet
  • VoIP Device
  • Large Network Peripheral
  • Aerospace
  • Missile
  • IT Equipment

Advanced Features:

  1. Hot-swappable battery design
  2. Automatic self-test function
  3. Configurable sensitivity settings
  4. Event logging with timestamp

LCD Display:

Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply

Back view:

Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply

Support and Services:

The High Frequency UPS product offers comprehensive technical support and services to ensure the reliable and efficient operation of the system. Our technical experts are available to provide assistance with installation, configuration, and troubleshooting.

Our services include:

  • Remote monitoring and diagnostics
  • 24/7 technical support
  • Training and certification

We are committed to providing exceptional customer service and ensuring customer satisfaction with our High Frequency UPS product. Contact us for more information on our technical support and services.

​

Production line:

Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply

Online High Frequency UPS 2kVA / 1.6kW High Density Power Supply
