WPS30000-150/150 Outdoor Power Cabinet – High-Capacity UPS for Telecom & Data Systems

Product Overview

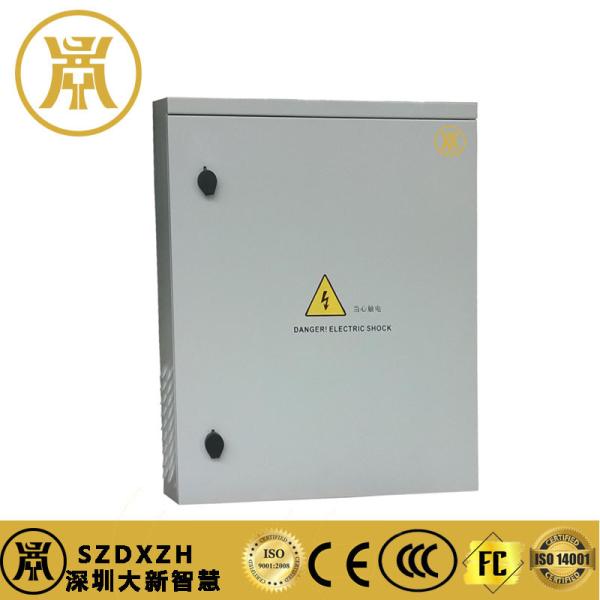

The WPS30000-150/150 Outdoor Power Cabinet is a 150A wall-mounted UPS designed for telecom, data communication, and satellite systems. It integrates AC/DC power distribution, temperature control, battery management, and remote monitoring in a rugged IP55-rated outdoor cabinet, supporting wall-mounting, floor-standing, and pole-mounted installations.

Key Features

• Max 150A capacity with -54V DC output

• Integrated battery management (low-voltage protection, load shedding, temperature compensation)

• Remote monitoring via RS232/RS485 & dry contacts

• Dual AC/DC lightning protection (C-grade: 20-40kA)

• Wide input voltage range (90-300V AC)

• High efficiency (up to 95%) with hot-swappable rectifier modules

• IP55 protection with forced-air cooling & built-in thermal control

• Supports LiFePO4 (50Ah) or lead-acid (4x38Ah) batteries

Technical Specifications

1. General Structure

2. Power Distribution & Protection

3. Electrical Performance

4. Environmental Compliance

Why Choose This Outdoor Power Cabinet?

✔ Reliable UPS for Harsh Environments – Operates in extreme temperatures (-40°C to +45°C)
✔ Smart Battery Management – Auto voltage compensation, capacity calculation, and load shedding
✔ Flexible Monitoring – Supports remote control via RS485/dry contacts
✔ High Safety Standards – Meets YD/T1058-2000, IEC61000-4-5 (surge protection), and EN55022 (EMC)

Ideal for:

• Telecom base stations

• Satellite & data communication hubs

• Outdoor power backup systems

​

Upgrade to the WPS30000-150/150 Outdoor Power Cabinet for unmatched reliability in critical power applications.
