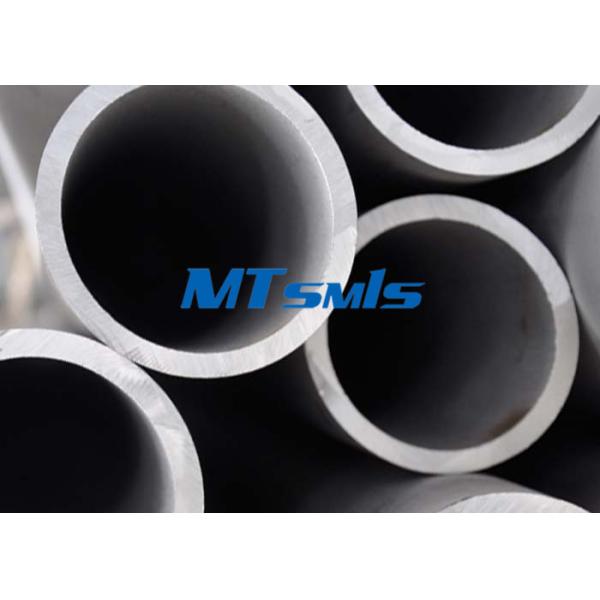

2205 / 2507 super duplex tubing ASTM A790 / ASME SA790 / ASTM A312
2205 / 2507 super duplex tubing ASTM A790 / ASME SA790 / ASTM A312
2205 / 2507 super duplex tubing ASTM A790 / ASME SA790 / ASTM A312
2205 / 2507 super duplex tubing ASTM A790 / ASME SA790 / ASTM A312
Specifications
Brand Name :
MTSCO
Model Number :
MTSCODSP54
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
5000-9000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
1.4410 / S32750 / 2507 / 1.4462 / S31803 / 2205 / Etc
Type :
Seamless
Ends :
PE / BE
Standard :
ASTM A790 / SA790 ; ASTM A789 / SA789 ; ASTM A312 Etc
NDT :
Eddy Current Or Hydraulic Test
Delivery Condition :
Soft / Hard
Description

2205 / 2507 Duplex Steel Pipe With Cold Rolled, ASTM A790 / ASME SA790

Physical Properties
　 　 　 　 　
Grade Y.S.MPa min T.S.Mpa min Elongation % Hardness HRC
UNS S32750 550 800 15 20
UNS S31803 450 620 25 20
UNS S31500 440 630 30 20

UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 ( F51 ) 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 ( F60 ) 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 ( F53 ) 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 ( F55 ) 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00

Duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series

stainless steels . “ Duplex ” describes a family of stainless steels that are neither fully austenitic , like 304 stainless , nor purely ferritic , like 430 stainless . The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy ( stress corrosion cracking resistance and high strength ) with those of an austenitic alloy ( ease of fabrication and corrosion resistance ) .

Material Grade S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc
Outer Diameter

10.3mm - 1219mm

Wall Thickness

1.24mm - 54.59mm

Length as per customer’s requirement
Standard

ASTM A789 ; ASTM A790 ; EN 10216-5ect .

Application :

1 . Petroleum

2 . Chemical industry

3 . Instrument

4 . Industrial transportation

5 . Mechanical structure industry

6 . Need high corrision ability pipe's industry , such as offshore industry etc

20ft GP : 5898mm ( Length ) x 2352mm ( Width ) x 2393mm ( High )

40ft GP : 12032mm ( Length ) x 2352mm ( Width ) x 2393mm ( High )

40ft HC : 12032mm ( Lengh ) x 2352mm ( Width ) x 2698mm ( High )

20 feet container load 25tons coils whose length is under 5.8m

40 feet container load 25tons coils whose length is under 11.8m
