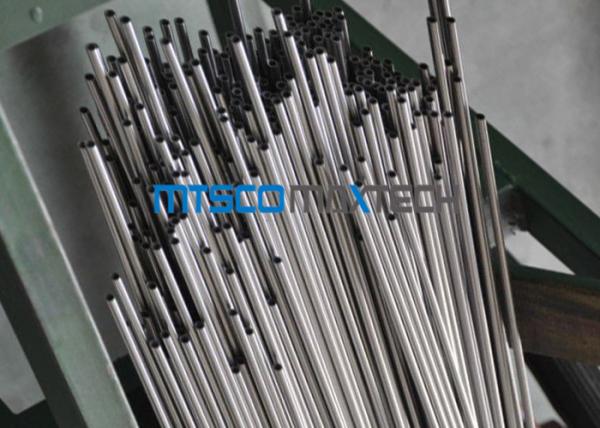

Seamless 6096mm Annealed Duplex Steel Tube ASTM A789 UNS S31803
Seamless 6096mm Annealed Duplex Steel Tube ASTM A789 UNS S31803
Specifications
Brand Name :
MTSCO
Model Number :
MTSCODST36
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
5500-10000USD/TON
Payment Terms :
T/T ; L/C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
S31803 / S32750
Type :
Seamless
Standard :
ASTM A790 / ASTM A789
NDT :
Eddy Current Or Hydraulic Test
Inspection :
100 %
Length :
6096mm
Product name :
Annealed Duplex Tube
Description

Seamless 6096mm Annealed Duplex Steel Tube ASTM A789 UNS S31803

The main differences in composition, when compared with an austenitic stainless steel is that the duplex steels have a higher chromium content, 20–28%; higher molybdenum, up to 5%; lower nickel, up to 9% and 0.05–0.50% nitrogen. Both the low nickel content and the high strength (enabling thinner sections to be used) give significant cost benefits. They are therefore used extensively in the offshore oil and gas industry for pipework systems, manifolds, risers, etc. and in the petrochemical industry in the form of pipelines and pressure vessels.

Item

Description

Basic Information

Material Grade

S32205 , S31803 , S32304 , S32750 , F51 , F53 , 2205 , 2507 etc

Outer Diameter

3.18mm - 101.6mm

Wall Thickness

0.5mm - 20mm

Length

Normally fixed length 6m , can as per customer’s requirement

Standard

ASTM A789 ; ASTM A790 ; EN 10216-5 etc.

Process Method

Cold Drawn or Cold Rolled

UNS Designation C Si Mn P S Cr Ni Mo N Cu
max max max max max
S31803 0.03 1 2 0.03 0.02 21.0 - 23.0 4.5 - 6.5 2.5 - 3.5 0.08 - 0.20 -
S32205 0.03 1 2 0.03 0.02 22.0 - 23.0 4.5 - 6.5 3.0 - 3.5 0.14 - 0.20 -
S32750 0.03 0.8 1.2 0.035 0.02 24.0 - 26.0 6.0 - 8.0 3.0 - 5.0 0.24 - 0.32 0.5 max
S32760 0.05 1 1 0.03 0.01 24.0 - 26.0 6.0 - 8.0 3.0 - 4.0 0.20 - 0.30 0.50 -1.00

Application

a) Petroleum

b) Chemical industry

c) Instrument

d) Industrial transportation

e) Mechanical structure industry

f) Need high corrision ability pipe's industry, such as offshore industry etc

Advantages

a) Superior surface finish,

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Seamless 6096mm Annealed Duplex Steel Tube ASTM A789 UNS S31803
