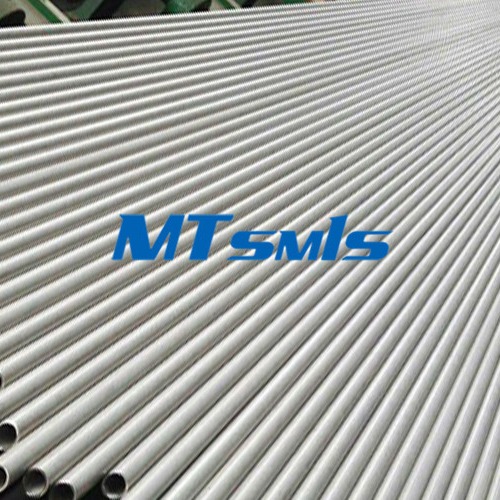

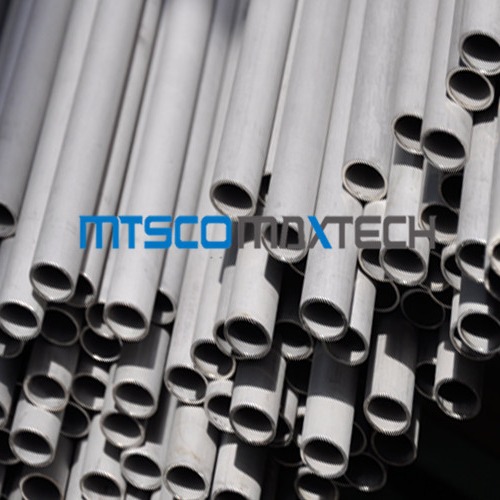

Hydraulic Tube:

Hydraulic tubing provides a way to transport fluids in hydraulic systems from one component to another. They can be used in hydraulic systems when the conditions of the equipment allow it. Tubes can be ideally installed in equipment when there is no space limitation and the movement, noise and vibration of the machine is minimal.

Hydraulic tubing offers several advantages over hoses, as they can work in higher operating temperatures and required less maintenance.

Hydraulic Tube Basic Information:

Grade:TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard: ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc

Size OD:3.18-101.6mm

WT:0.5-20mm

Length:Max.12M

Advantage: Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment

Application: Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.

Package: Plastic in both ends, then packed in iron case

Hydraulic Tube Advantages:

a) Superior surface finish

b) Better mechanical property

c) More precise dimension

d) Perfect inspection method and inspection equipment

Hydraulic Tube Applications:

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry

Hydraulic Tube Chemical Composition:
