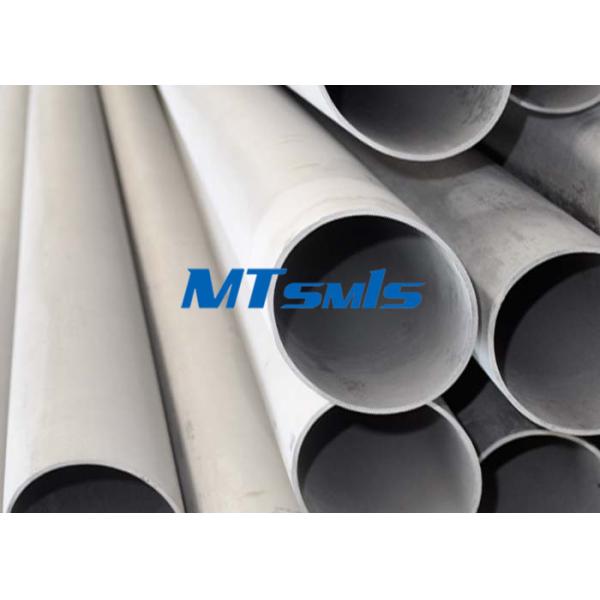

18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOSSSP55
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
2900-10000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Material :
Stainless Steel TP309S / 310S，TP304 TP304L TP316 TP316L
Delivery Condition :
Soft / Hard
NDT :
Eddy Current Or Hydraulic Test
End Cut :
Plain End ( PE ) / Bevel End ( BE )
Type :
Seamless
Inspection :
100%
Description

18Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Pipe With Pickled Surface

Specifications :

DN NPS(Inch) D(mm) SCH5S SCH10S SCH10 SCH20 SCH30 STD SCH40 SCH60 SCH80 XS
300 12 323.9 3.96 4.57 - 6.35 8.38 9.53 10.31 14.27 17.48 12.7
350 14 355.6 3.96 4.78 6.35 7.92 9.53 9.53 11.13 15.09 19.05 12.7
400 16 406.4 4.19 4.78 6.35 7.92 9.53 9.53 12.7 16.66 21.44 12.7
450 18 457.2 4.19 4.78 6.35 7.92 11.13 9.53 14.27 19.05 23.83 12.7
500 20 508 4.78 5.54 6.35 9.53 12.7 9.53 15.09 20.62 26.19 12.7
550 22 559 4.78 5.54 6.35 9.53 12.7 9.53 - 22.23 28.58 12.7
600 24 610 5.54 6.35 6.35 9.53 14.27 9.53 17.48 24.61 30.96 12.7
650 26 660 - - 7.92 12.7 - 9.53 - - - 12.7
700 28 711 - - 7.92 12.7 15.88 9.53 - - - 12.7
750 30 762 6.35 7.92 7.92 12.7 15.88 9.53 - - - 12.7

Seamless pipes
Pickling & Annealing
Project Standard ASTM A269/A269M ASTM A312/A312M ASTM A213/A213M ASTM A789/789M ASTM A790/790M
Grade

TP304

TP304L

TP321

TP316

TP316L

TP317

TP321

TP347

N08904/904L

TP304

TP304L

TP309S

TP310S

TP316

TP316L

TP316Ti

TP317

TP317L

TP321

TP347

TP304

TP304L

TP309S

TP316

TP316L

TP316Ti

TP317

TP310S

TP321

TP347

S32250

S31803

S32750

S32250

S31803

S32750
Size

NPS:1/8”-48” SCH:5S,10/10S,20,30,40/40S,60,80/80S,100,120,140,160,STD,XS,XXS

OD:0.23”-26”(5.8mm-660.4mm)

WT:0.04”- 2”(1.0mm-50.8mm)
Length According to customer’s request, Max. 18Meters.
Chemical composition(According to the standard)
Eg. TP304L(ASTM)/1.4306(DIN)
C max Si max Mn max P max S max Cr Ni N max
TP304L 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0 --
1.4306 0.030 1.00 2.00 0.045 0.030 18.0-20.0 10.0-12.0 0.11
Surface Finish Annealed, Pickled etc
Packing Bundles/plywood cases
Applications For fluid & gas transport; structure & machining; petrochemical; environmental protection; electricity etc
Other standards

ASTM A270/270M

ASTM B667

EN10216-5

JIS G3463

18 Inch ASTM A790 / ASME SA790 Stainless Steel Seamless Tube With Pickled Surface

MTSCO has been dedicated to producing seamless stainless steel pipe since 2003 , owning complete producing technology and abundant managing experience . Our raw material such as mother tube , round bar we use is from Chinese biggest and well known steel mill : Walsin , Yongxing etc . And We have advanced NDT equipments for the tests such as Eddy Current test, Ultrasonic test , Hydraulic test and so on . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , Lloyd’s , SGS , etc , also can be provided according to customers’ requirements .
