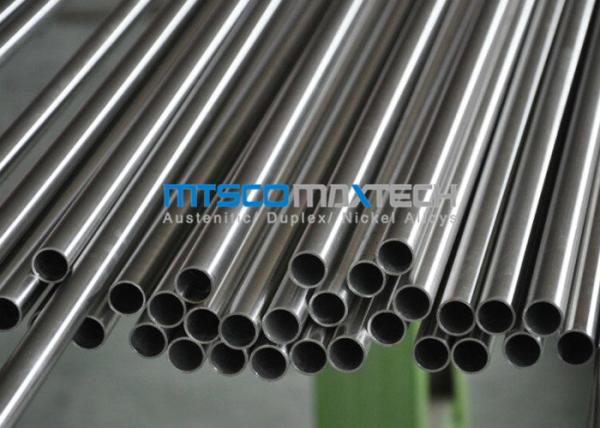

TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOHT38
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
4300-9800USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
S32100 / S32109
Type :
Seamless
Inspection :
100% EDT & PMI
Technology :
Cold Drawn
Length :
6096mm
Standard :
America Standard / Europe Standard
Description

TP321 / 321H Stainless Steel Seamless Hydraulic Tube With Bright Annealed Surface

Grade 304 , 304L , 304H , 310S , 316 , 316L , 316Ti , 321 , 321H , 347 , 347H , etc
Standard ASTM A270 ; ASTM A269 ; ASTM A312 ;ASTM A249 ; EN10216-5 , ect .
Size OD : 3.18 - 101.6mm
WT : 0.5 - 20mm
Length : 1m to 12m or as per customers’ requirement
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment

Chemical Composition:

C(max) Si(max) Mn(max) P(max) S(max) Cr Ni Mo Ti
TP304/1.4301 0.080 1.00 2.00 0.045 0.030 18.0-20.0 8.0-10.5
TP304L/1.4307 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP304H/1.4948 0.04-0.10 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0
TP316/1.4401 0.080 1.00 2.00 0.045 0.030 16.0-18.0 11.0-14.0 2.0-3.0
TP316L/1.4404 0.035 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0
TP316Ti/1.4571 0.080 1.00 2.00 0.045 0.030 16.0-18.0 10.0-14.0 2.0-3.0 0.7>5x(C+N)
TP321/1.4541 0.080 1.00 2.00 0.045 0.030 17.0-19.0 9.0-12.0 0.7>5x(C+N)
TP317L/1.4449 0.080 1.00 2.00 0.045 0.030 18.0-20.0 11.0-14.0 3.0-4.0
TP347H/1.4912 0.04-0.10 1.00 2.00 0.045 0.030 17.0-19.0 9.0-13.0
TP309S/1.4833 0.080 1.00 2.00 0.045 0.030 22.0-24.0 12.0-15.0 0.75
TP310S/1.4845 0.080 1.00 2.00 0.045 0.030 24.0-26.0 19.0-22.0 0.75

Basic Information Material Grade TP304 , TP304L , TP304H , TP316 , TP316L , TP316Ti , TP309S , TP310S , TP321 , TP321H , TP347 , TP347H , S31803 , S32750 , S32205 etc
Outer Diameter 3.18-101.6mm
Wall Thickness 0.5-20mm
Length Normally fixed length 6m , can as per customer’s requirement
Standard ASTM A213 ; ASTM A269 ; ASTM A312 ; ASTM A789 ; ASTM A790 ect .
Process Method Cold Drawn or Cold Rolled
Industry & Advantage Application a) For fluid & gas transport
b) Structure & machining
c) Petrochemical
d) Environmental protection
e) Electricity
f) Instrument industry etc
Advantages a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment

TP321 / 321H Stainless Steel Seamless Hydraulic Tubing With Bright Annealed Surface

MTSCO is a leading manufacturer who is specialized in stainless steel seamless pipes , bright annealed tubes , seamless coiled tubing etc . MTSCO has the most advanced producing and testing equipment . We can totally satisfy your requirement .

Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed . And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance . At fluid industry , bright annealed hydraulic tubing has its own important position . Their useful life is higher than other tubing .
