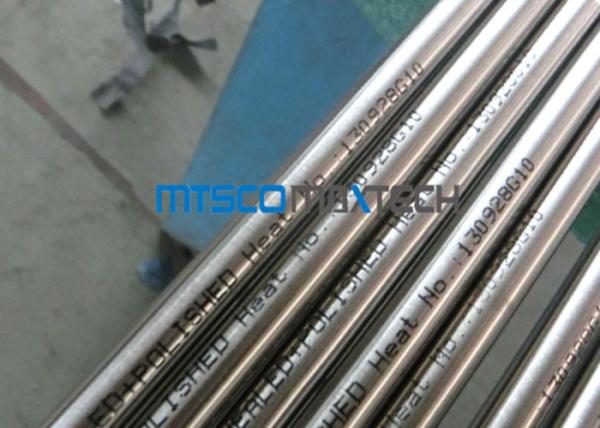

Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOBAT41
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
6000-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case / Plywood Case
Material :
TP309S / 310S
Delivery Condition :
Soft / Hard
Surface :
Polished 400 # & Bright Annealed
Technology :
Cold Drawn
Type :
Seamless
NDT :
Eddy Current Or Hydraulic Test
Description

Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S

Material Grade :

American Standard TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc
European Standard 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc
German Standard X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc

Corrosion Test If clients need will be conducted
Chemical Analysis Will be tested as per required quality standards
Destructive / Mechanical Testing Tensile / Hardness / Flattening
Eddy Current Testing Using digital flaw-mark testing System to do test and mark in surface homogeneities
Hydrostatic Testing 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test To check any evidence of air leakage
Visual Inspection After passivation, every single length of tubes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Specifications :

DN NPS(Inch) D(mm) SCH5S SCH10S SCH40S STD SCH40 SCH80 XS SCH80S SCH160 XXS
6 1/8 10.30 - 1.24 1.73 1.73 1.73 2.41 2.41 2.41 - -
8 1/4 13.70 - 1.65 2.24 2.24 2.24 3.02 3.02 3.02 - -
10 3/8 17.10 - 1.65 2.31 2.31 2.31 3.20 3.20 3.20 - -
15 1/2 21.30 1.65 2.11 2.77 2.77 2.77 3.73 3.73 3.73 4.78 7.47
20 3/4 26.70 1.65 2.11 2.87 2.87 2.87 3.91 3.91 3.91 5.56 7.82
25 1 33.40 1.65 2.77 3.38 3.38 3.38 4.55 4.55 4.55 6.35 9.09
32 1 1/4 42.20 1.65 2.77 3.56 3.56 3.56 4.85 4.85 4.85 6.35 9.70
40 1 1/2 48.30 1.65 2.77 3.68 3.68 3.68 5.08 5.08 5.08 7.14 10.15
50 2 60.30 1.65 2.77 3.91 3.91 3.91 5.54 5.54 5.54 8.74 11.07

Small Diameter bright annealed stainless steel tube 3 / 8 Inch TP309S / 310S

Where can be used ?

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear
2 . Fluid , gas and oil transport
3 . Pressure and heat transmission
4 . Construction and ornament
5 . Boiler heat exchangers
6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium ) boiler , auto parts , medical equipment , building materials , food industry

MTSCO has been dedicated to producing bright annealed tubes since 2014 , owning complete producing technology and abundant managing experience . And the raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc . Also we have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on . Welcome you contact us in free ! Stainless steel seamless bright annealed tube’s final surface is polished and bright annealed. And the polished grade is includes 180 # , 320 # , 400 # , 600 # , 800 # . According to standard very strictly , tubes which produced by us always have correct OD and WT tolerance. And they are very suitable for chromatography industry.
