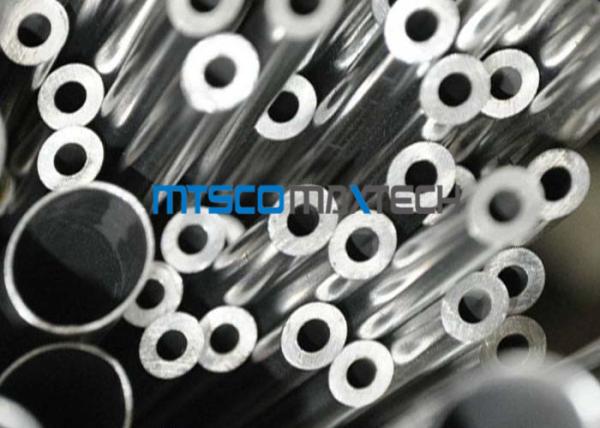

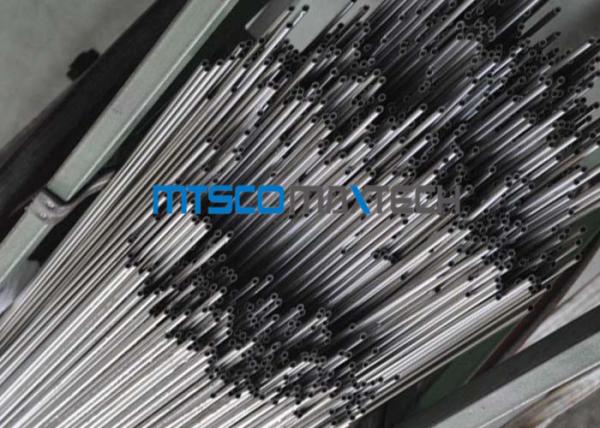

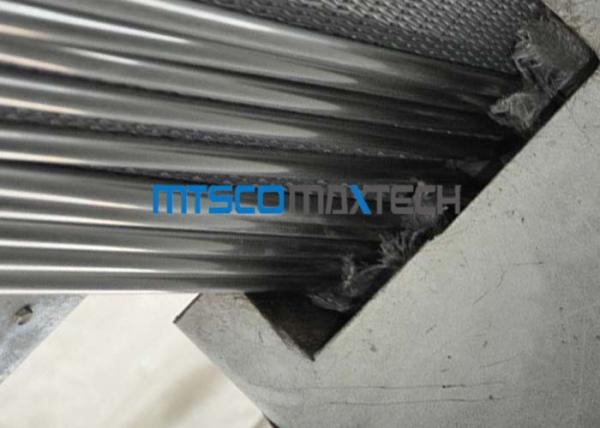

1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOST42
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
6000-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
300 Tons / Month
Delivery Time :
30 Days
Packaging Details :
Iron Case
Material :
Stainless Steel 300 Series
Technology :
Cold rolled
Surface :
Polished 400 # , 320 # Etc
Delivery Condition :
Soft / Hard
Inspection :
100%
Type :
Seamless
Description

1 / 4 Inch Stainless Steel Sanitary Tube, ASTM A269 / ASME SA269 For Chemical Industry

Grade

 TP 304; TP304H; TP304L; TP316; TP316L; TP 321;TP321H; TP317L; TP310S; TP347H

Standard

 ASTM A213, ASTM A 269, ASTM A 270,EN10216-5; ASTM B 622;ASTM B516;ASTM A789, etc
Size OD:3.18-101.6mm
WT:0.5-20mm
Length:Max.12M
Advantage Superior surface finish ,better mechanical property; more precise dimension; perfect inspection method and inspection equipment
Application

Boiler tube applies to petroleum,chemical industry,electric power,boiler,high temperature

resistant,low temperature resistant,corrosion resistant.The size can be made according

to the customers requirements.High pressure boiler pipe applies to container,petrochemical

and so on.Note:Generally,high pressure boiler pipe’s working pressure above 9.88Mpa and

working temperature between 450 to 650.
Package Plastic in both ends, then packed in iron case

Terms & Conditions Price Item FOB , CFR , CIF or as negotiation
Payment TT, LC or as negotiation
Delivery Time 30 working days after received your deposit ( Normally according to the order quantity )
Package Iron case ; woven bag or as per customer’s requirement
Quality Requirement Mill Test Certificate will be supplied with shipment , Third Part Inspection is acceptable
Quality Test NTD ( Ultrasonic test , Eddy Current test )
Mechanical Test ( Tension Test , Flaring Test , Flattening Test , Hardness Test , Hydraulic test )
Metal Test ( Metallographic Analysis , Impact Test - High / low temperature )
Chemical Analysis ( Photoelectric Emission Spectroscopic )
Market Main Market Europe , Middle East , Southeast Asia , South America etc

1 / 4 Inch Stainless Steel Sanitary Tube , ASTM A269 / ASME SA269 For Chemical Industry

Application :

1 . General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

2 . Fluid , gas and oil transport

3 . Pressure and heat transmission

4 . Construction and ornament

5 . Boiler and heat exchangers

6 . Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )

ASTM A269 Chemical Composition :

Elements 304L(wt%) S30403 304(wt%) S30400 316L (wt%) S31603 316 (wt%) S31600
(C) Carbon, max 0.035 0.08 0.035 0.08
(Mn) Manganese, max 2 2 2 2
(P) Phosphorus, max 0.045 0.045 0.045 0.045
(S) Sulfur, max 0.03 0.03 0.03 0.03
(Si) Silicon, max 1 1 1 1
(Ni) Nickel 8.0 - 12.0 8.0 - 11.0 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 18.0 - 20.0 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum N/A N/A 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal. Bal. Bal.
(Cu) Copper N/A N/A N/A N/A
(N) Nitrogen N/A N/A N/A N/A
