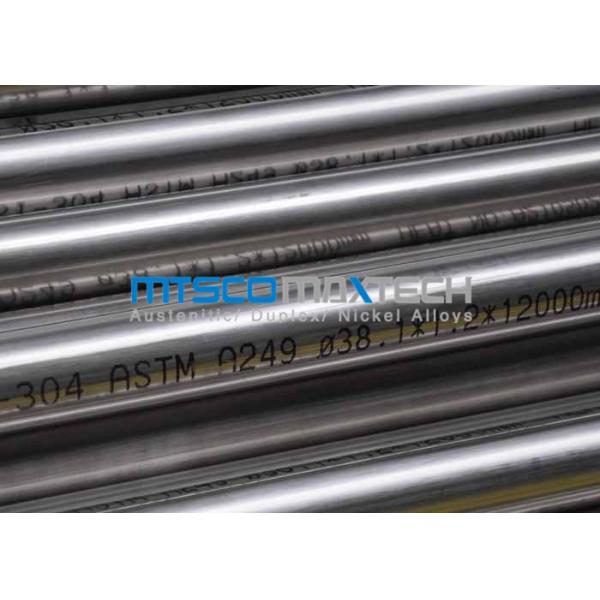

Heat Exchanger Stainless Steel Welded Tubing ASTM A270 / A249 For Papermarking
Heat Exchanger Stainless Steel Welded Tubing ASTM A270 / A249 For Papermarking
Heat Exchanger Stainless Steel Welded Tubing ASTM A270 / A249 For Papermarking
Heat Exchanger Stainless Steel Welded Tubing ASTM A270 / A249 For Papermarking
Specifications
Brand Name :
MTSCO
Model Number :
MTSCOSSWT77
Certification :
ISO 9001 & PED & AD2000
Place of Origin :
CHINA
MOQ :
negotiable
Price :
2500-12000USD/TON
Payment Terms :
T / T ; L / C
Supply Ability :
500 Tons / Month
Delivery Time :
25 Days
Packaging Details :
Plywood Case / Bundles
Material :
TP304 TP304L TP316 TP316L , 300 Series Stainless Steel
Surface :
320 # Or 400 # Outside Polished
Delivery Condition :
Soft / Hard
Type :
Welded
Process Method :
ERW , EFW Etc
PMI Test :
100%
Description

Heat Exchanger Stainless Steel Welded Tubing , ASTM A270 / A249 For Papermarking

Material Grade TP304, TP304L, TP304H, TP316, TP316L, TP316Ti, TP309S, TP310S, TP321, TP321H, TP347, TP347H, etc
Outer Diameter 5.80mm-2032mm (0.23" to 80")
Wall Thickness 0.25mm-28mm (0.01" to 1.125")
Length Normally fixed length 6m, can as per customer’s requirement
Standard ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect.
Process Method ERW, EFW etc

ASTM A249 Standard :

Size OD Nominal Wall Outside Diameter Length Wall
1/2" (12.7) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
3/4" (19.1) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1" (25.4) 0.065" (1.65)/0.049" (1.25) +/-0.005 (0.13) +1/8" (3.18) - 0 +/-10.0%
1-1/2" (38.1) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2" (50.8) 0.065" (1.65)/0.049" (1.25) +/-0.008" (0.20) +1/8" (3.18) - 0 +/-10.0%
2-1/2" (63.5) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
3" (76.2) 0.065" (1.65) +/-0.010" (0.25) +1/8" (3.18) - 0 +/-10.0%
4" (101.6) 0.083" (2.11) +/-0.015" (0.38) +1/8" (3.18) - 0 +/-10.0%
6" (152.4) 0.083" (2.11) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
6" (152.4) 0.109" (2.77) +/-0.030" (0.76) +1" (25.4) - 0 +/-10.0%
8" (203.2) 0.109" (2.77) +0.061" (1.55)/-0.031" (0.79) +1" (25.4) - 0 +/-10.0%

Application :

a) For fluid and gas transport

b) Structure and machining

c) Heat exchanger pipes etc

Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG
SWG Wall Thickness SWG Wall Thickness
0 0.324 8.23 21 0.032 0.81
1 0.3 7.62 22 0.028 0.71
2 0.276 7.01 23 0.024 0.61
3 0.252 6.4 24 0.022 0.56
4 0.232 5.89 25 0.02 0.51
5 0.212 5.38 26 0.018 0.46
6 0.192 4.88 27 0.0164 0.42
7 0.176 4.47 28 0.0148 0.38
8 0.16 4.06 29 0.0136 0.35
9 0.144 3.66 30 0.0124 0.31
10 0.128 3.25 31 0.0116 0.29
11 0.116 2.95 32 0.0108 0.27
12 0.104 2.64 33 0.01 0.25
13 0.092 2.34 34 0.0092 0.23
14 0.08 2.03 35 0.0084 0.21
15 0.072 1.83 36 0.0076 0.19
16 0.064 1.63 37 0.0068 0.17
17 0.056 1.42 38 0.006 0.15
18 0.048 1.22 39 0.0052 0.13
19 0.04 1.02 40 0.0048 0.12
20 0.036 0.91 　 　 　

Heat Exchanger Stainless Steel Welded Tubing ASTM A270 / A249 For Papermarking
