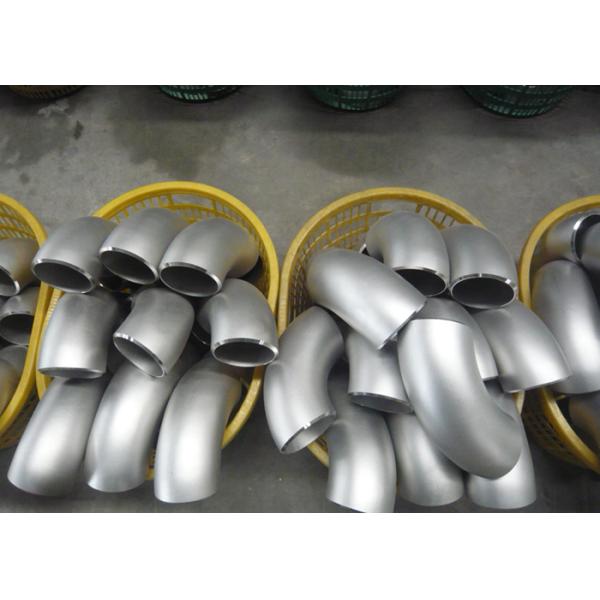

Dn150 Sch 40s TP316 , 316L Stainless Steel 90 Degree Elbows Weld Fittings
Dn150 Sch 40s TP316 , 316L Stainless Steel 90 Degree Elbows Weld Fittings
Dn150 Sch 40s TP316 , 316L Stainless Steel 90 Degree Elbows Weld Fittings
Dn150 Sch 40s TP316 , 316L Stainless Steel 90 Degree Elbows Weld Fittings
Specifications
Brand Name :
KAYSUNS
Model Number :
KS-WF
Certification :
PED,ISO
Place of Origin :
China
Material :
304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO
Types :
Buttweld Elbow
Welded :
18” to 110” (DN450~DN2800)
Seamless :
1/2” to 36” (DN15 ~DN900)
Connection End :
Butt-weld
Standards :
ASME/ANSI B16.9, MSS-SP-43, MSS-SP-75, EN/DIN, JIS B2311/2312/2313, ISO 3419, ISO 5251 etc.
Description

Dn150 Sch 40s TP316 , 316L Stainless Steel 90 Degree Elbows Weld Fittings

Description:

  1. Stainless steel elbow is the most important butt weld pipe fittings, they are fabricated by seamless stainless steel pipes or steel plate and get beveled end for butt-welding.
  2. A butt weld pipe fitting is designed to be welded on site at its end(s) to connect pipe(s) together and allow change in direction or pipe diameter, or branching or ending.
  3. This fitting then becomes part of a system for transporting fluids (oil, gas, steam, chemicals, …) in a safe and efficient manner, over short or long distances.

Composition:

Elements 316L (wt%) / CR316L /S31603 316 (wt%) / CR316 / S31600
(C) Carbon, max 0.03 0.08
(Mn) Manganese, max 2 2
(P) Phosphorus, max 0.045 0.045
(S) Sulfur, max 0.03 0.03
(Si) Silicon, max 1 1
(Ni) Nickel 10.0 - 14.0 10.0 - 14.0
(Cr) Chromium 16.0 - 18.0 16.0 - 18.0
(Mo) Molybdenum 2.0 - 3.0 2.0 - 3.0
(Fe) Iron Bal. Bal.
(Cu) Copper N/A N/A
(N) Nitrogen N/A N/A

Materials:

Stainless Steel A403 304/L,304H ·310S ·316/L,316Ti·317/L·321/H ·347/H ·S31803·S32750 ·904L
Low Temperature Steel A420 WPL3, WPL6
Alloy Steel A234 WP5, WP9, WP11, WP12, WP22, WP91
High Yield WPHY42, 52, 60, 65, 70
Duplex & Super Duplex A815 UNS 31803, UNS 31254, UNS S32750
Nickel Alloys alloy200, 400, K500, 600, 625, 800, 825 ,alloy 20, hastalloy B2, C22, C276
Other Grades Cu70Ni30(C71500),Cu90Ni10(C70600),Titanium

Dn150 Sch 40s TP316 , 316L Stainless Steel 90 Degree Elbows Weld Fittings

Quality & Inspection:

  1. PMI test to verify material grade
  2. Dimension controlling during fabricating and finished
  3. Visual and surface 100% examination before shipment
  4. End protected for shipment
  5. Packed in carton box firstly, then in wooden case

Application:

  1. Ship building,
  2. Petrochemical,
  3. Steel plant,
  4. Refineries,
  5. Chemical,
  6. Fertilizers,
  7. Defence,
  8. Power plant,
  9. Shipyard,
  10. Oil & gas,
  11. Offshore,
  12. Railway,
  13. LNG,
  14. etc.

Heavy wall thickness elbow is our strength. All of these materials are available for third party inspection, such as SGS,BV,Lloyd’s,TUV etc. For more information, please contact us.
