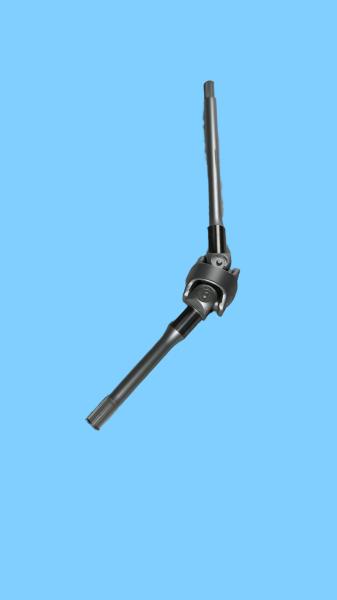

Customizable Double U Joint Driveshaft Car Drive Shaft High Efficiency
Customizable Double U Joint Driveshaft Car Drive Shaft High Efficiency
Specifications
Place of Origin :
China
MOQ :
1 Piece
Price :
5USD~1500USD
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
300units per month
Packaging Details :
Wooden case
Durability :
High
Material :
Steel
Function :
Transmit Power and Rotation
Type :
Universal Joint
Size :
Standard
Installation :
Easy to Install
Tolerance :
Precise Machining
Description

1.Product Overview
The wheel-end double universal drive shaft for wheeled vehicles is a universal transmission component featuring modular design, suitable for various wheeled vehicles and special equipment. With an innovative double universal joint structure and optimized axle design, it achieves a 15% improvement in transmission efficiency and a 50% extension in service life, making it an ideal choice for upgrading wheeled vehicle transmission systems.

2. Core Advantages

(1) Universal Compatibility

Supports multiple shaft diameters from Φ30-Φ70mm

Customizable specifications: Static torsional strength of 1000-100,000 Nm

(2) High-Efficiency Power Transmission

Double universal joint structure, transmission efficiency ≥97%

Dynamic balance grade G6.3

Maximum working angle of 48°

(3) Superior Durability

Forged from high-strength chromium-molybdenum alloy steel with high tensile strength

Multi-layered composite sealing structure with five sealing edges, offering excellent sand and mud resistance

Wide operating temperature range of -45℃ to +120℃, ensuring stable performance in extreme cold and heat

3. Technical Parameters

Parameter Value Remarks
Rated Torque 1000-9000 N·m
Peak Torque 2000-18000 N·m
Maximum Articulation Angle 48°
Speed Range 0-3000 r/min
Operating Temperature -45℃ to +120℃

4. Typical Applications
(1) Airport tow tractors
(2) Oilfield vehicles
(3) Forest fire trucks
(4) Desert vehicles

5. Quality Assurance System

IATF 16949:2016 certified quality management system

100% factory testing (magnetic particle inspection, torque testing, etc.)

6. Customization Services

Supports non-standard size customization

Provides multiple surface treatment options
