DN80 to DN1200 Ductile iron fittings Express collar
DN80 to DN1200 Ductile iron fittings Express collar
DN80 to DN1200 Ductile iron fittings Express collar
DN80 to DN1200 Ductile iron fittings Express collar
Specifications
Brand Name :
NO
Model Number :
DN80-DN1200
Certification :
NO
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
one container per half month
Delivery Time :
20-60 days
Packaging Details :
Package in wooden pallet
Material :
carbon and ductile iron
size :
DN80-DN1200
BOLTS AND NUTS :
carbon steel
Gasket :
EPDM
Description

DN80 to DN1200 Ductile iron fittings Express collar

Details

1. Size range:DN80-DN1200mm

2. Gaskets: Rubber E.P.D.M.

3. Coating: epoxy paint in blue or red. or zinc paint+ bituminous paint internal and external side

4. Packing: standard Wooden cases or wooden pallets.

5.Standard: ISO2531/EN545

DN80 to DN1200 Ductile iron fittings Express collar

DN80 to DN1200 Ductile iron fittings Express collar

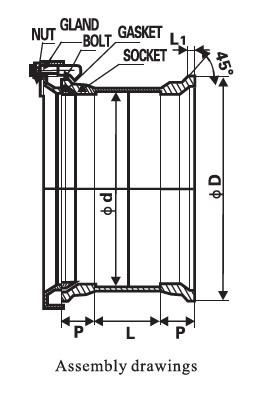

DN D0-2 d+2-1 L±10 P±5 L1 L2
80 168 109 160 85 12 130
100 189 130 160 88 12 130
125 216 156 160 91 12 135
150 243 183 165 94 12 135
200 296 235 170 100 15 140
250 353 288 175 100 15 145
300 410 340 180 105 20 150
350 465 393 185 105 20 155
400 514 445 190 105 20 160
450 575 498 195 105 20 165
500 630 550 200 105 20 170
600 736 655 210 110 20 180
700 863 760 220 140 20 190
800 970 865 230 155 20 200
900 1082 970 240 175 21 210
1000 1191 1075 250 180 22 220
1100 1300 1180 260 200 24 230
1200 1412 1285 270 215 25 240
