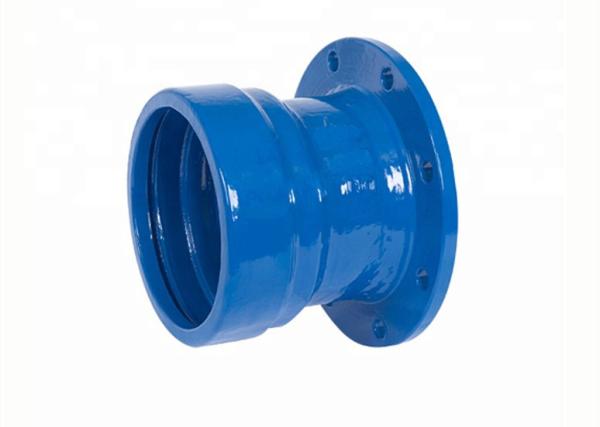

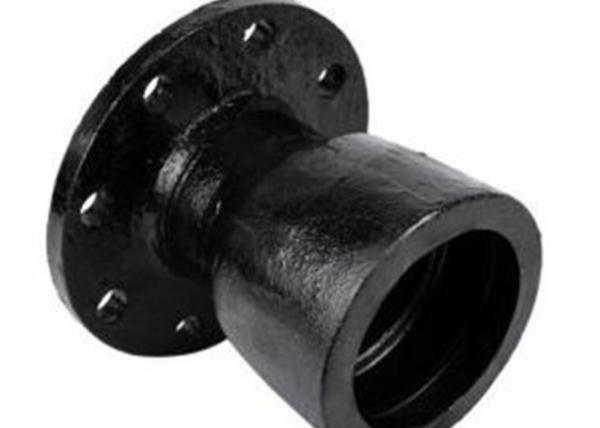

DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
Specifications
Brand Name :
NO
Model Number :
DN40-DN2600
Certification :
NO
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
one container per half month
Delivery Time :
20-60 days
Packaging Details :
Package in wooden pallet or wooden boxes
Technics :
Casting
Application :
water supply
Pressure :
PN10/PN16/PN25
Packing :
Carton/wooden box
Usage :
Joining Pipe Lines
Connection :
Flange
Description

DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25


Pressure rating PN10/PN16/PN25

Size range DN40-DN2600
Material Ductile iron
Rate pressure PN10, PN16 & PN25
Internal coating Cement mortar lining
External coating Zinc/Zinc alloy, bitumen,epoxy
Standards ISO2531, BS EN545, BS EN598, GB/T13295
Accessories NBR, SBR, EPDM rings according to ISO4633


DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25
DN40 - DN2600 Ductile Iron Fittings Flange Socket Class PN10 PN16 PN25

DN e d L Flange socket
Weight(kg) T type Weight (kg) K type
PN10 PN16 PN25 PN10 PN16 PN25
40 7.0 67 125 4.7 4.7 4.7 / / /
50 7.0 78 125 5.4 5.4 5.4 / / /
60 7.0 88 125 6.2 6.2 6.2 / / /
65 7.0 93 125 6.7 6.7 6.7 / / /
80 7.0 109 130 7.6 7.6 7.6 9.0 9.0 9.0
100 7.2 130 130 9.1 9.1 9.6 11.4 11.4 12.4
125 7.5 156 135 11.9 11.9 12.5 13.8 13.8 14.4
150 7.8 183 135 14.2 14.2 15.2 16.7 16.7 17.6
200 8.4 235 140 20.5 20.0 22.0 22.7 22.7 24.5
250 9.0 288 145 30.0 32.0 33.3 30.7 30.3 34.0
300 9.6 340 150 37.0 36.5 42.0 45.4 45.1 50.3
350 10.2 393 155 45.0 48.0 56.0 52.9 55.7 63.6
400 10.8 445 160 55.0 60.0 71.0 62.2 68.7 77.9
450 11.4 498 165 66.5 86.2 87.5 72.8 82.1 92.5
500 12.0 550 170 78.0 93.0 104.0 85.7 100.1 110.5
600 13.2 655 180 108.0 135.0 149.0 114.6 139.6 152.0
700 14.4 760 190 144.0 159.0 216.0 161.0 175.0 211.0
800 15.6 865 200 189.0 235.0 287.0 206.0 225.0 274.0
900 16.8 970 210 262.5 284.1 340.1 243.5 265.1 321.1
1000 18.0 1075 220 328.3 366.0 458.0 307.3 345.0 417.6
1100 19.2 1180 230 406.0 442.6 526.6 367.8 406.2 490.2
1200 20.4 1285 240 496.0 554.3 664.0 456.0 521.0 664.0
1400 22.8 1492 310 759.4 820.2 959.9 613.3 674.1 813.8
1500 24.0 1596 330 1007 1083 1233 724.6 800.6 950.6
1600 25.2 1699 330 1185 1278 1438 897.0 999.0 1176
1800 27.6 1905 350 1308 1421 1638 1137 1263 1503
2000 30.0 2107 370 / / / 1428 1581 1933
2200 32.4 2316 390 / / / 1783 1950 /
2400 34.8 2521 410 / / / 2140 2465 /
2600 37.2 2728 480 / / / 2679 3045 /
