Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545
Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545
Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545
Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545
Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545
Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545
Specifications
Brand Name :
NO
Model Number :
DN80-DN600
Certification :
EN545
Place of Origin :
China
MOQ :
10 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
ONE CONTAINER PER HALF MONTH
Delivery Time :
20 -60 DAYS
Packaging Details :
Package in wooden boxes
Material :
cast iron
Pressure rating :
PN16
gasket :
EPDM
bOLTS AND NUTS :
CARBON
Accessories :
NBR, SBR, EPDM rings according to ISO4633
Standards :
ISO2531, BS EN545, BS EN598, GB/T13295
Description

Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545

Special Tee Ductile iron fittings All flange Y tee Class PN16

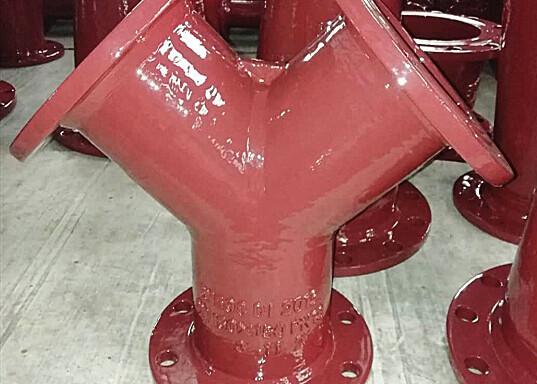

All-flanged "Y" tee

Feature

Size range DN80-DN2600
Material Ductile iron
Type bend
Rate pressure PN10, PN16 & PN25
Internal coating Cement mortar lining
External coating Zinc/Zinc alloy, bitumen,epoxy
Standards ISO2531, BS EN545, BS EN598, GB/T13295
Accessories NBR, SBR, EPDM rings according to ISO4633

Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545

Special Di Tee Ductile Iron Fittings All Flange Y Tee Class PN16 ISO2531 BS EN545

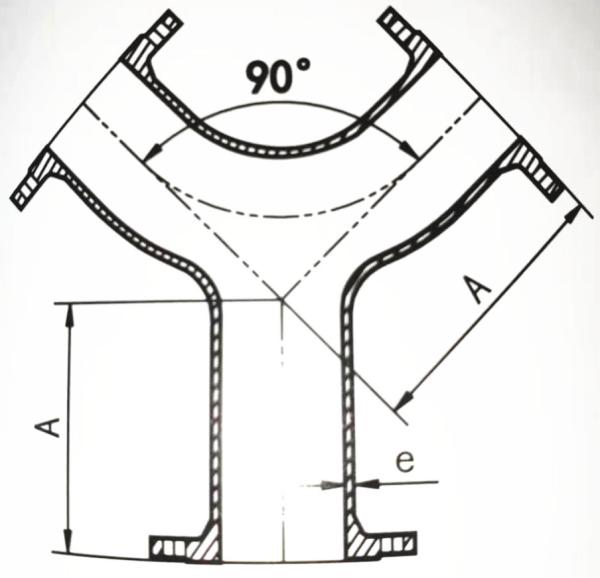

DNXdn e e1 A Weight PN16
80X80 8.1 8.1 165 15.6
100X100 8.4 8.4 180 19.3
150X150 9.1 9.1 220 31.9
200X200 9.8 9.8 260 48.1
250X250 10.5 10.5 350 79.8
300X300 11.2 11.2 400 113.5
350X350 11.9 11.9 450 165.4
400X400 12.6 12.6 500 219.1
450 X 450 13.3 13.3 550 280
500X500 14 14 600 363.9
600X600 15.4 15.4 700 562.7
