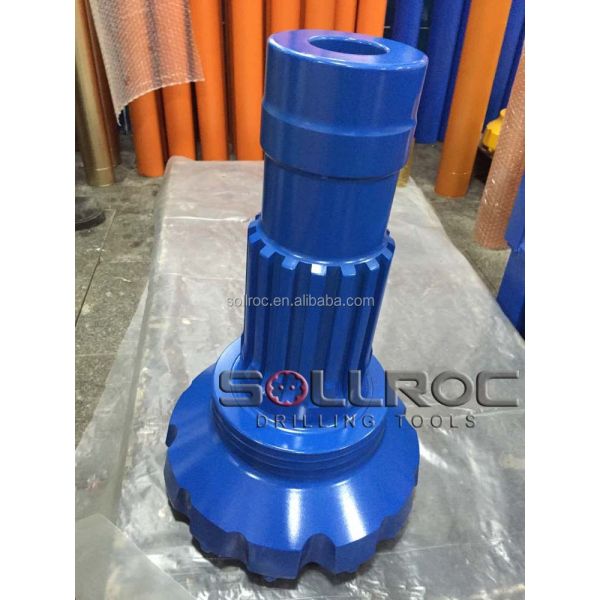

5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling
Specifications
Place of Origin :
Hunan, China
Brand Name :
SOLLROC
MOQ :
1
Price :
$200
Weight :
15 KG
Material :
carburized steel
Processing Type :
heat treatment and machining process
Thread :
REG
Bit Dia. :
133 mm, 140 mm, 146 mm, 152 mm, 165 mm
No. Air Holes :
2
Gauge Buttons :
7×φ16, 7×φ18, 8×φ18, 8×φ18, 8×φ18
Front Buttons :
6×φ14, 7×φ14, 7×φ14, 8×φ14, 8×φ16
Bit Weight :
15.5 KG, 16.0 KG, 16.5 KG, 17.0 KG, 19.0 KG
Part No. :
SD5-130, SD5-140, SD5-146, SD5-152, SD5-165
Bit Head Types :
Convex, Flat Face, Concave
Insert Types :
ballistic, semi-ballistic, domed
Shank Size :
5 1/4", 5 1/2", 5 3/4", 6", 6 1/2"
Rock Hardness :
soft to medium, hard to very hard
Drill Bit Life :
long
Description
Product Description

There are three different bit heads on offer, Convex, Flat Face and Concave, also with three different inserts that can tackle any challenge and rock face formation. The two most important factors in choosing the right drill bit are productivity and reliability. For soft to medium rock formations where penetration rates are high the ballistic and semi-ballistic inserts coupled with flat face or concave bit heads are more suitable. If the rock formation is on the hard to very hard side, it is more advisable to use a domed insert with convex head this will result in a longer drill bit life.

Company Information

1.Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.

2.We have advanced technology and equipment.

3.Our technician has more than 13 year's professional working experience.

Technical parameters

For 5" hammer
DTH bits shank		 Bit Dia. No.
Air Holes		 Gauge
Buttons		 Front
Buttons		 Weight
(Kg)		 Part No.
mm inch
SD5
 133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165

Product Features

1. for water well, micro piling, geothermal, anchoring
2. Reliable performance
3. long service life
4. easy to maintain
5. stable

Key words:

Bits de botão DTH

brocas para martillos en cabeza
brocas de perforacion
martillos en cabeza
perforación en terreno inestable,
perforacion pozos de agua
micropilotaje

forage de roches
le forage de puits
Forage et
forage géothermique
forage du sol
des outils de forage
micropiling
ENQUÊTES Une rotopercussion

rock drilling
water well drilling
geothermal drilling
ground drilling
drilling tools

Images

5 Inch Carburized Steel High Performance DTH Drill Bit for Mining and Water Well Drilling

Shipping & Package

Shipping

By Air, By Sea or By express.

Package

Ply - wooden cases + Pallet
