Specifications
Place of Origin :
Hunan, China
Brand Name :
SOLLROC
MOQ :
1
Price :
$2,000
Weight :
105 KG
Material :
carburized steel
Processing Type :
heat treatment and machining process
Diameter :
305mm to 381mm
Air Compressor :
High air pressure DTH bits
Shank Type :
DHD1120, SD12, N120
Bit Diameter :
305mm, 330mm, 356mm, 381mm
Air Holes :
4
Gauge Buttons :
12×φ18, 16×φ18, 16×φ19
Front Buttons :
36×φ16, 42×φ16, 48×φ16, 48×φ18
DHD1120 Weight :
152.0 KG, 165.0 KG, 178.0 KG, 198.0 KG
SD12 Weight :
156.0 KG, 180.0 KG, 191.0 KG, 200.0 KG
N120 Weight :
152.0 KG, 165.0 KG, 178.0 KG, 195.0 KG
Bit Size :
12", 13", 14", 15"
Button Size :
φ16, φ18, φ19
Description
Product Description

We are able to manufacture, export and supply our clients excellent quality DTH Hammers. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.

Technical parameters

For 12" hammer
DTH bits shank		 Bit Dia. No
Air
Holes.		 Gauge
Buttons		 Front
Buttons		 Weight
(Kg)
mm inch
DHD1120
 305 12" 4 12×φ18 36×φ16 152.0
330 13" 4 16×φ18 42×φ16 165.0
356 14" 4 16×φ19 48×φ16 178.0
381 15" 4 16×φ19 48×φ18 198.0
SD12
 305 12" 4 12×φ18 36×φ16 156.0
330 13" 4 16×φ18 42×φ16 180.0
356 14" 4 16×φ19 48×φ16 191.0
381 15" 4 16×φ19 48×φ18 200.0
N120
 305 12" 4 12×φ18 36×φ16 152.0
330 13" 4 16×φ18 42×φ16 165.0
356 14" 4 16×φ19 48×φ16 178.0
381 15" 4 16×φ19 48×φ18 195.0

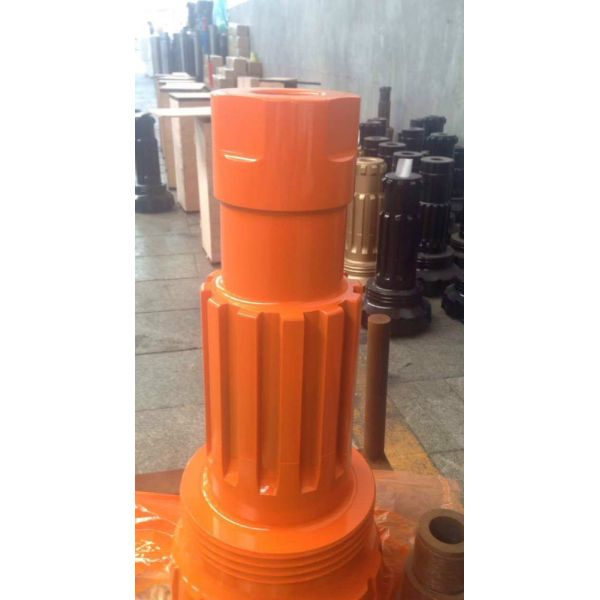

Images

12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining 12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining

Shipping & Package

Shipping

By Air, By Sea or By express.

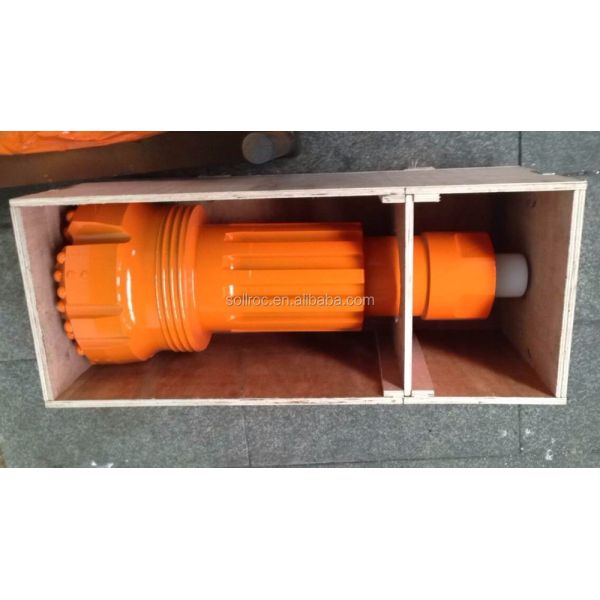

Package

Ply - wooden cases + Pallet

12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining 12 Inch Carburized Steel DTH Drill Bit for High Air Pressure Water Well Drilling and Mining
