No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling
No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling
No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling
No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling
No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling
No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling
Specifications
Brand Name :
SOLLROC
Model Number :
QL60 No Footvalve
Certification :
SGS
Place of Origin :
China
MOQ :
1 piece
Price :
negotiable
Payment Terms :
T/T,
Supply Ability :
10000 pieces/month
Delivery Time :
18 working days
Packaging Details :
Cartons + ply wood case (no plastic)
Application :
Quarrying, construction, civil engineering, mining,
Usage :
mining, water well drilling, geothermal drilling
Product name :
QL60 No Footvalve DTH Bit
Rock formation :
Granite, limestone, quartz, etc
shank :
QL60 No Footvalve
Advantage :
Hign Abrasion Resistance
Color :
Black or as request
Size :
6 3/4''
Bit diameter :
171mm
Rock hardness :
Granite, limestone, quartz, etc
Machine type :
Drilling Tool,Drilling Equipment,Downhole Tools,Mining machine parts
Use :
Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
Description

QL60 No Footvalve Type Black Color 171mm 6 3/4'' DTH Bit For Blasting Drilling

Product description

DTH hammers and bits are widely used in open-pit mines, quarries and construction projects to maximize efficiency for customers and reduce drilling costs. In underground mining engineering, high-performance and efficient energy transfer can maximize drilling accuracy and increase customer productivity. Our down-the-hole hammer and bit can optimize the impact energy loss to the rock to the minimum, and are easy to take, efficient and fast. At the same time, they also incorporate advanced material technology and sophisticated design, which makes our down-the-hole drilling tools easy to operate and long life, bringing users a high productivity, low energy consumption, and a trustworthy user experience.

QL60 No Footvalve 171mm 6 3/4'' DTH Drill Bit overview

Bit Diameter 171mm 6 3/4''
No.* Button Dia. mm Gauge Buttons 8*18mm
Front Buttons 10*16mm
Weight (kg) 24

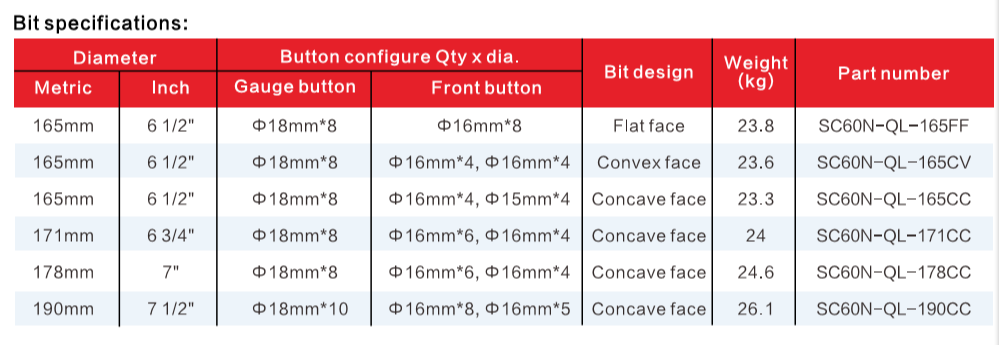

QL60 No Footvalve series DTH bit overview

Diameter Button Configure Dia*qty. Bit design

Weight

(kg)
Metric Inch Guage button Front button
165mm 6 1/2'' 18mm*8 16mm*8 Flat face 23.8
165mm 6 1/2'' 18mm*8 16mm*4+16mm*4 Convex face 23.6
165mm 6 1/2'' 18mm*8 16mm*4+15mm*4 Concave face 23.3
171mm 6 3/4'' 18mm*8 16mm*6+16mm*4 Concave face 24
178mm 7'' 18mm*8 16mm*6+16mm*4 Concave face 24.6
190mm 7 1/2'' 18mm*10 16mm*8+16mm*5 Concave face 26.1


Product Advantages

1. 1.The overall structure design is concise to minimize the probability of failure

2.Short overall length, light weight and good safety
3.The patented optimized matching design of the drill bit and the impactor maximizes the transmission efficiency of impact energy
4.The surface of the parts is treated with anti-fatigue strengthening treatment, which has a longer working life
5.Optimize impact contact surface, air chamber and impact frequency to achieve faster perforation efficiency

Face shape Features

Concave Face

1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated

2. Offers high penetration rate in the above stated rock conditions

3. Has excellent air flushing characteristics

4. Predominant face style for majority of drilling conditions

Flat Face

1. Have a superior performance in hard, abrasive and broken rock conditions

2. They however have a slower penetration rate in comparison to a concave face bit

Convex Face

1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc

2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions

Structure picture

No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling

No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling

No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling

No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling

Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.

DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

No Footvalve Type 171mm 6 3/4'' DTH Drill Bits For Blasting Drilling

Company informaiton

1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.

2. We have advanced technology and equipment.

3. Our technician has more than 13 year's professional working experience.
