RC Drilling Tools Reverse Circulation hammers With Remet And Metzke Thread
RC Drilling Tools Reverse Circulation hammers With Remet And Metzke Thread
Specifications
Brand Name :
SOLLROC
Model Number :
RE531 RE004 RE545 RE543 RE547 PR40 PR54 PR52
Certification :
SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
2000 sets per month
Delivery Time :
3-4 weeks
Packaging Details :
Cartons + ply wood case (no plastic)
Material :
alloy steel
Color :
Black or optional
Connection thread :
remet and metzke
Applications :
water well drilling, mining, etc
Face shape :
Drop center, Concave, flat face
Keywords :
Reverse Circulation RC hammers
Description

RC Drilling Tools Reverse Circulation hammers With Remet And Metzke Thread

Features:
Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;
Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.

Product specifications: RC hammers

Hammer Bit Shank Hole Range
(mm)		 External Diameter
(mm)		 Length (without bit)
mm		 Weight Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke		 1.5-3.5Mpa
RC5-P40 PR40 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke		 1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
RC5.5-P54/P54R PR54 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa


Shank can be available:

1). RC bits for 3" RC Hammer: Diameter(86mm-102mm), shank type: RE531,
2). RC bits for 3.5" RC Hammer: Diameter(98mm-115mm), shank type:RC3.5
3). RC bits for 4'' RC Hammer:Diameter (104mm-127mm), shank type: RE004
4). RC bits for 4.5'' RC Hammer:Diameter(113mm-135mm), shank type: RE542,RE543
5). RC bits for 5" RC Hammer: Diameter(122mm-142mm), shank type: RE545,PR40,RE004
6). RC bits for 5.5" RC Hammer: Diameter(133mm-146mm), shank type:PR52, RE547, PR54,RE052,RE054
Other size can be upon to customer's requirements

1.Packing:Carton or wooden case

2.Shipping: By sea / By air / By car / By train


SOLLROC always provide durable and high performance products to customers.

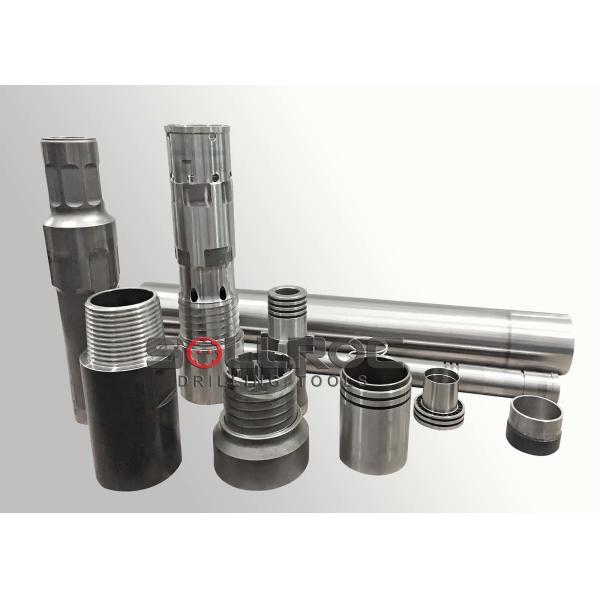

Product photos
