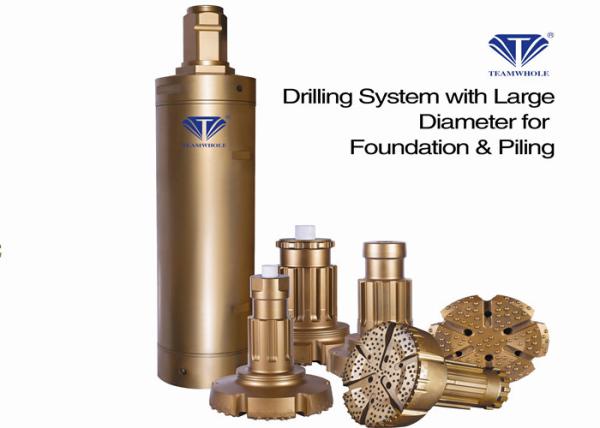

TSW14 Water Hammer Drilling , Reliable Large Diameter Hole Drilling DTH Hammer
TSW14 Water Hammer Drilling , Reliable Large Diameter Hole Drilling DTH Hammer
Specifications
Brand Name :
Teamwhole
Model Number :
TSW14 DTH Hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
220 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case with Size 190*31*42Cm
Material :
Alloy steel
Processing Type :
Forging
Use :
Piling / Foudation Drilling
Product Name :
TSW14 DTH Hammer
Color :
Gold Other color available
External Diameter :
330mm
Connection :
API 6 5/8" Reg
Work Pressure :
1.0-2.5Mpa
Price :
Negotiation
Description

12" DHD112 / NUMA120 / SD12 DTH HAMMER for water well & Foundation

"Down The Hole" (DTH) hammers provide the most versatile and cost effective rock drilling method available to date.

Drilling Supply offers an extensive range of DTH hammers suitable for a wide variety of drilling techniques and environments.

​1. Product Features

  • Valveless air distribution. More reliable.
    Simple design of the piston, long life.
    More efficient energy transfer, faster drilling speed, lower air consumption and lower oil
    Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treate

2. Detailed structure information

TSWH14H
Length(less bit) 2235mm
Weight (less bit) 950.0kg
External diameter 330mm
Bits shank TSW14H
Bits diameter 305mm-445mm
Connection thread 273mm Hexagonal
Air pressure 1.0-2.5Mpa

* Hammers without footvalve are available.
* External diameter of hammer is adjustable according to customers' requests.
* Shock absorbers and Hexagonal Joints are available.

3. Product Application

-----Quarrying, construction, civil engineering, mining

-----Water well drilling

-----Foundation Drilling

4. Site information

TSW14 Water Hammer Drilling , Reliable Large Diameter Hole Drilling DTH Hammer
