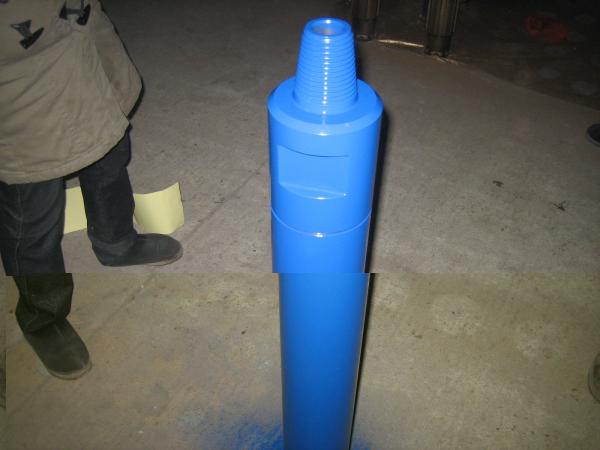

Blue Mission 50 Water Well Drilling Hammer , Forging Rotary Drilling Tools
Blue Mission 50 Water Well Drilling Hammer , Forging Rotary Drilling Tools
Specifications
Brand Name :
Teamwhole
Model Number :
Mission50 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
Mission 50 DTH Hammer
Color :
Gold other color available
External Diameter :
138-165MM
Connection :
89,76 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

TB5 DTH hammer

Shank: M50

Bit Shank: Mission50

Thread: API 2 3/8" REG PIN OR API 3 1/2" REG PIN

Outer Diameter: 120mm

Length without bit: 1108mm

Weight: 83KG

Recommend Hole size: 138-165 mm

Working Pressure: 12-21 bar

  • Application Fields: open pit mining
  • Advantage: high drilling rate and steady performance
  • Quality Guarantee: products with any problem caused by unqualified material and maching, will be replaced with providing photos of broken parts serial number.
  • We also supply spare parts for replacement and maintenance.

Blue Mission 50 Water Well Drilling Hammer , Forging Rotary Drilling Tools

ITERM DESCRIPTION
NO PART LIST
1 TOP SUB 05SH10 PRODUCT NAME MISSION50
2 TOP SUB RING 90*3.55 PRODUCT CODE 05SK04
3 PRESSURE BEARING WAHSER 103.5*83.5*22.5 BIT TYPE MISSION50 WITH FOOT VALVE
4 CHECK VALVE B1-SK05H-A1001-90 THREAD CONNECTION API 2 3/8 REG
5 SRPING 110*26*3 WORKING PRESSURE (BAR) 12-24
6 RUBER RING 240030-C AIR CONSUMPTION 24BAR (M3/MIN) 19
7 AIR DISTRIBUTING SEAT 05SK20-C RECONMENDED ROTATION SPEED 30-50
8 INNER CYLINDER 05SK30-F OUTSIDE DIA (MM) 126
9 PISTON B1-SK05H-A1002-42-L LENGTH WITH OUT BITS 893
10 OUTER CYLINDER 05SK40-N WEIGHT 55
11 BUSH DRIVE SUB B1-SK05H-A1001-45-F NORMAL AXIAL PRESUURE (KN) 9.2
12 O RING 80*3.55 REC HOLE SIZE(MM) 138-165
13 BIT RETAINER RING 05SK74-C FLAT WENCH(MM) 74.5
14 CHUCK SLEEVE 05SK84-N
