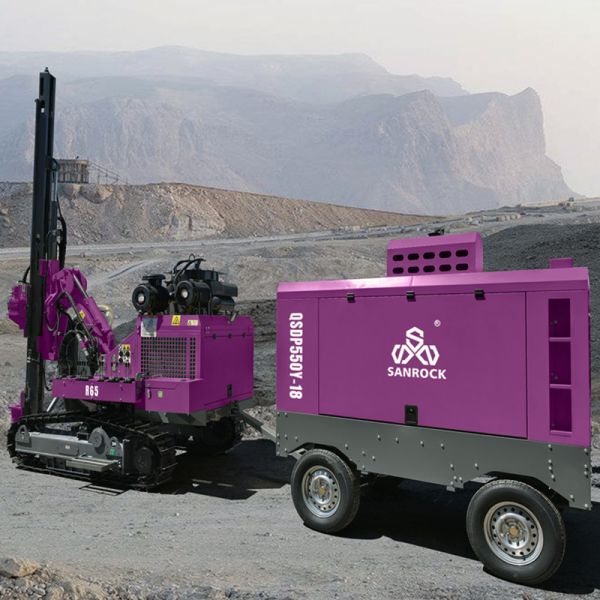

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs
Specifications
Brand Name :
SANROCK
Model Number :
R65
Certification :
IOS9001 CCC
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
100 Set/Sets per Month
Delivery Time :
10 work days
Packaging Details :
Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Type :
Rotary Drilling Rig
Drill Pipe Dia :
76mm
Drill Pipe Length :
3m
Engine :
Yuchai
Power type :
Diesel,Electric,Air motor
Usage :
Ore
After-sales service provided :
Online support
Weight :
5300kg
Dimension(l*w*h) :
5550*2290*2600mm
Power(w) :
78KW
Drilling depth :
35m
Drilling diameter :
90-140mm
Product name :
dth drilling rig
Air consumption :
10-18m3/min
Working pressure :
0.7-1.8Mpa
Name :
hydraulic drilling rig
Application :
Mining,quarry,drilling blast hole,mining and construction
Rotate speed :
0-140r/min
Rotational torque :
2500N.m
Lifting force :
25KN
Walking speed :
2.5km/h
Feature :
High Drilling Efficiency,Competitive Price
Description

Mining blast hole drilling rig delivers powerful percussive energy directly to the drill bit while simultaneously applying rotational torque, enabling efficient penetration through hard rock strata.

This ensures fast, deep, and accurate drilling, making it ideal for blast hole drilling in open-pit or underground mining environments.

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

1.This drill rig upgrades tramming components, hydraulic system, feed beam, rotary head and whole rig chassis to optimize the functional capacity of the drill rig.

2. The upgraded rig with improved features of strong climbing ability, large rotation torque & long life motor is widely applicable to various surface mining environment.

3. With larger displacement single motor, compact size & large rotation torque, the rotary head adjustable according to different work conditions & requirement, greatly increasing drilling efficiency.

4. All controls integrated on the control panel for convenient operation, higher work efficiency & lower drilling cost, safer and more comfortable operation.

5. Piston tramming motor, special process casted track shoe for stronger tramming traction force & more stable quality.

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Products Description

Product name: DTH drilling rig
Name:R65
Brand Name:Sanrock
Method of Feed:Cylinder+Chain
Lifting Force:25KN
Rotary Torque(Max.):2500N.m
Power:78KW
Drilling Depth:35M
Rotary Speed:0-140r/min
Drilling Diameter:90-140mm
Working Pressure(bar):0.7-1.8Mpa
Air Consumption:10-18m3/min
Travelling Speed:2.5km/h
Dimension(L*W*H):5550*2290*2600mm
Weight:5300 KG
Climbing Angles:30°
DTH Hammer:3"/4"

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill RigsSeparated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Company Profile

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Certifications

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

Separated DTH Drilling Rig Rotary Torque 2500N.m Borehole Drilling Equipment Surface Drill Rigs

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
