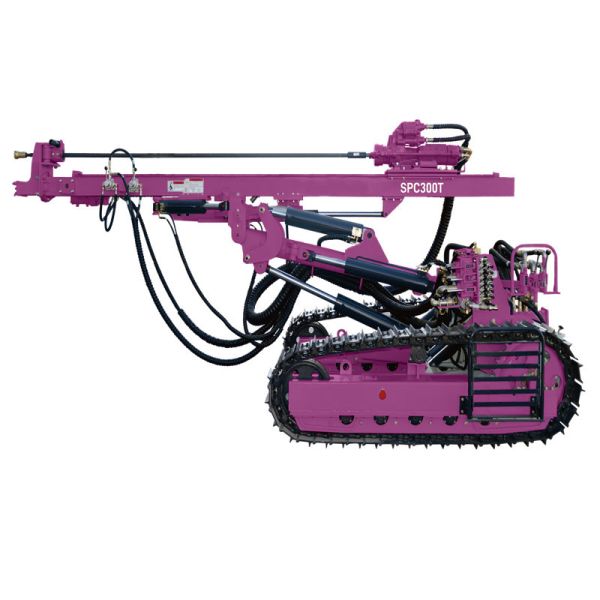

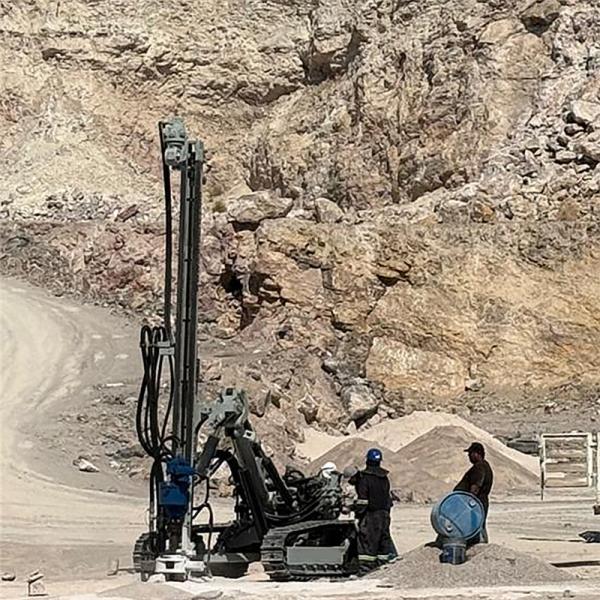

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Specifications
Brand Name :
Sanrock
Model Number :
SPC300D Customized
Certification :
CE ISO 9001:2015
Place of Origin :
Zhejiang, China
MOQ :
1 Set/Sets
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
3000 Set/Sets per Month
Delivery Time :
18-25 work days
Packaging Details :
Nude package for drilling rig; Wooden package for spare parts; Or customer demand;
Product name :
Crawler Drilling Rig
Power(w) :
3.7KW
Power type :
Diesel
Drilling Depth :
30m
Drilling Diameter :
90-254mm
Application :
Mining,quarry,drilling blast hole,mining and construction
Air consumption :
15-25m3/min
Working pressure :
2.5Mpa
Rotary Speed :
70rpm
Traveling Speed :
3.5km/h
Feature :
High Drilling Efficiency,Competitive Price
Dimension(l*w*h) :
6100*2200*2105mm
Weight :
5400 KG
Type :
Rotary Drilling Rig
Description

Through disruptive operation experiments and field tests under various geological conditions, multiple mechanical flaws have been refined and resolved, overcoming three critical technical challenges ("high failure rates, excessive air consumption, and elevated operational costs") of split-type pneumatic drilling rigs. This resulted in an easily operable split-type pneumatic drilling rig characterized by "two lows and one high": low maintenance costs, low air-pressure requirements, and high drilling efficiency.

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Rotation Reducer:Optimized internal structure for simplified maintenance. Enhanced shock absorbers for reduced drilling impact reaction forces. Gear-type rotary motor with rapid speed, high starting torque, quick start/stop response, and overload protection. Minimal temperature rise during prolonged operation.

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling RigPneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling RigPneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Products Description
Product name
Drilling Rig
Model
SPC300D
SPC300T
Dimension
6100*2200*2105mm
5777*2210*1942mm
Min.Ground Clearance
250 mm
250mm
Weight
5400 kg
5400kg
Travel Speed
0-3.5 km/h
0-3.5km/h
Travel Motor Power
8.8 kW x2
8.8 kW x2
Gradeability
35°
35°
Swing Angle
13°
13°
Rotary Head Power
3.7kw
3.8kw
Rotary Torque
2000 Nm (at 0.7 MPa)
365N.m
Max.Rotary Speed
70rpm
380rpm
Air Consumption
1.73 m³/min at 0.3Mpa
16m³/min at 0.55Mpa
Max.Air Pressure
2.5MPa
1.0Mpa
Air Quantity
15-25 m3/min
15-25m³/min
Drill rod
φ76,φ89 X3000 mm
T38, T45*3050/3660mm
Hydraulic tank capacity
18L
55L
Feed stroke
3980 mm
3980mm
Maximum forward thrust
11KN
11KN
Sliding frame swing
left 47°/right 54°
Left 47°/Right 54°
Drill boom tilt
Up 46°/Down 23°
Up 46°/Down 23°
Drill boom swing
Left 40°/Rght 40°
Left 40°/Right 40°

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling RigPneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling RigPneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig

Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling RigPneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Company Profile
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
Pneumatic Drilling Rig Mining DTH Drilling Equipment Surface Blast hole Drilling Rig
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.
2.How can I make payment?
A: You can pay directly online on with credit card, or TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
