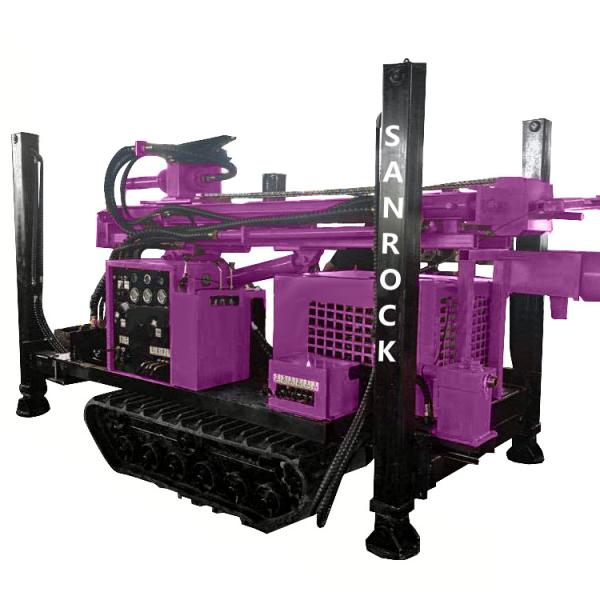

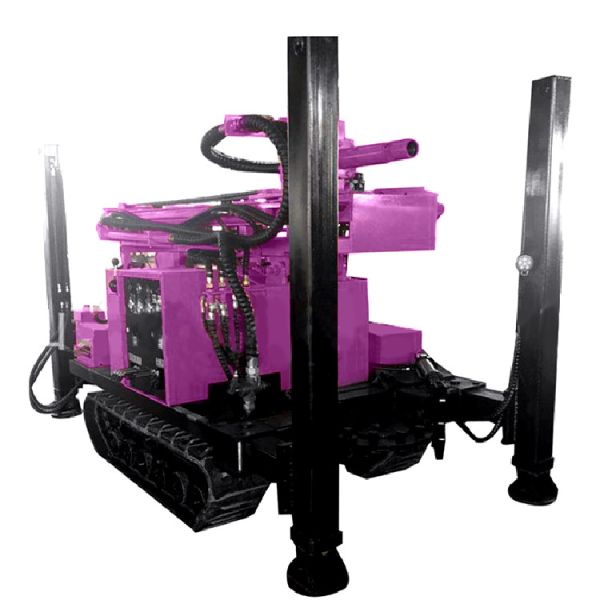

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
Specifications
Brand Name :
SANROCK
Model Number :
SR200 Rubber Crawler Base
Certification :
CE ISO 9001:2015
Place of Origin :
Zhejiang, China
MOQ :
1Set/Sets per Month
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000Set/Sets per Month
Delivery Time :
15-25days
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product name :
Water Well Drilling Rig
Name :
Water Well Drilling Rig Machine,Crawler Water Well Drilling Rig
Power type :
Diesel
Power(w) :
68KW
Drilling depth :
200m
Drilling diameter :
140-305mm
Swing torque :
3500-4800N.m
Air consumption :
17-30m3/min
Using air pressure :
1.7-3.0MPA
Drill pipe diameter :
76mm / 89mm
Drill pipe length :
1.5m, 2.0m, 3.0m
Walking speed :
2.5km/h
Application :
water well drilling rig mobile drilling rig,drilling well
Feature :
High Drilling Efficiency,Hydraulic Controlling,Portable
Usage :
Water Well
Type :
Rotary Drilling Rig
Dimension(l*w*h) :
4000×1750×2450mm
Weight :
5800KG
Description

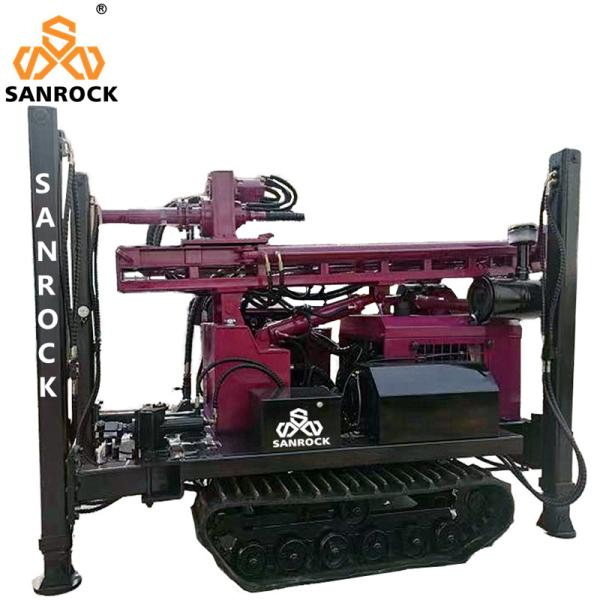

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

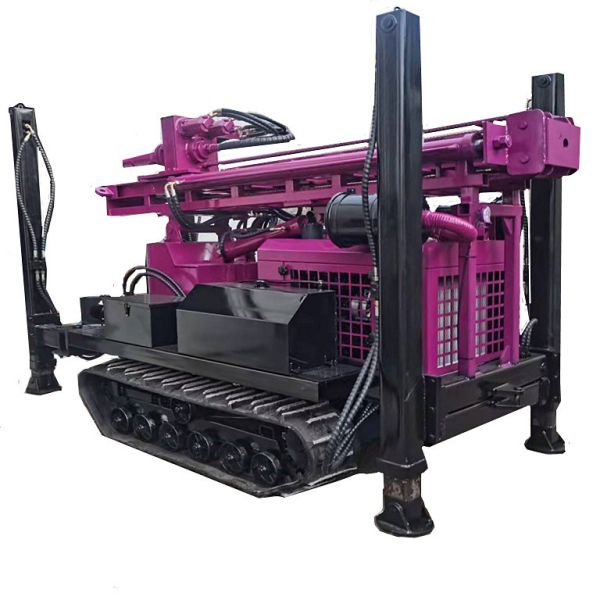

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Feature:
1.This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
2.Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.
3. Each rig is equipped with stoppers to raise the big arm to protect the safety of the cylinder.
4.The traveling motor is equipped with a gear box, which is durable and has a long service life.
5.Much higher efficient than the traditional mud rotary drill rigs, creating the considerable economic benefit for users.

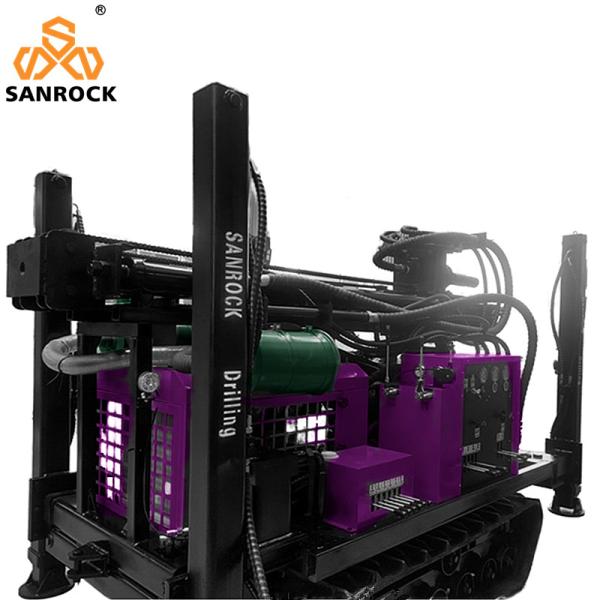

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

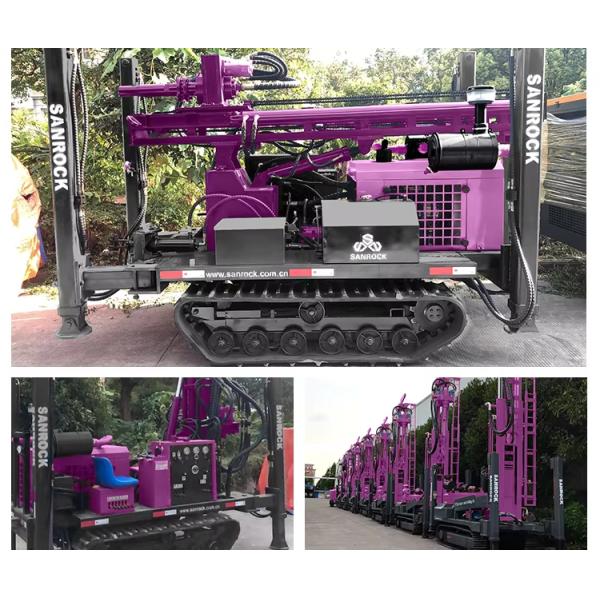

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed
Products Description
Product name:water well drilling rig machine
Name:SR200
The hole diameter:140-305mm
Drilling depth:200m
Equipped capacitor:68KW
Using air pressure:1.7-3.0MPA
Air consumption:17-30m3/min
Swing speed:40-70rpm
Swing torque:3500-4800N.m
Walking speed:2.5km/h
Climbing angles:30Max
Drill pipe length:1.5m /2.0m /3.0m
Drill pipe diameter:76mm /89 mm
Dimension:4000×1750×2450mm
The weight:5800KG

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

Company Profile

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

68KW Water Well Drilling Equipment for Deep Water Drilling at 2.5km/h Walking Speed

1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.

2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
